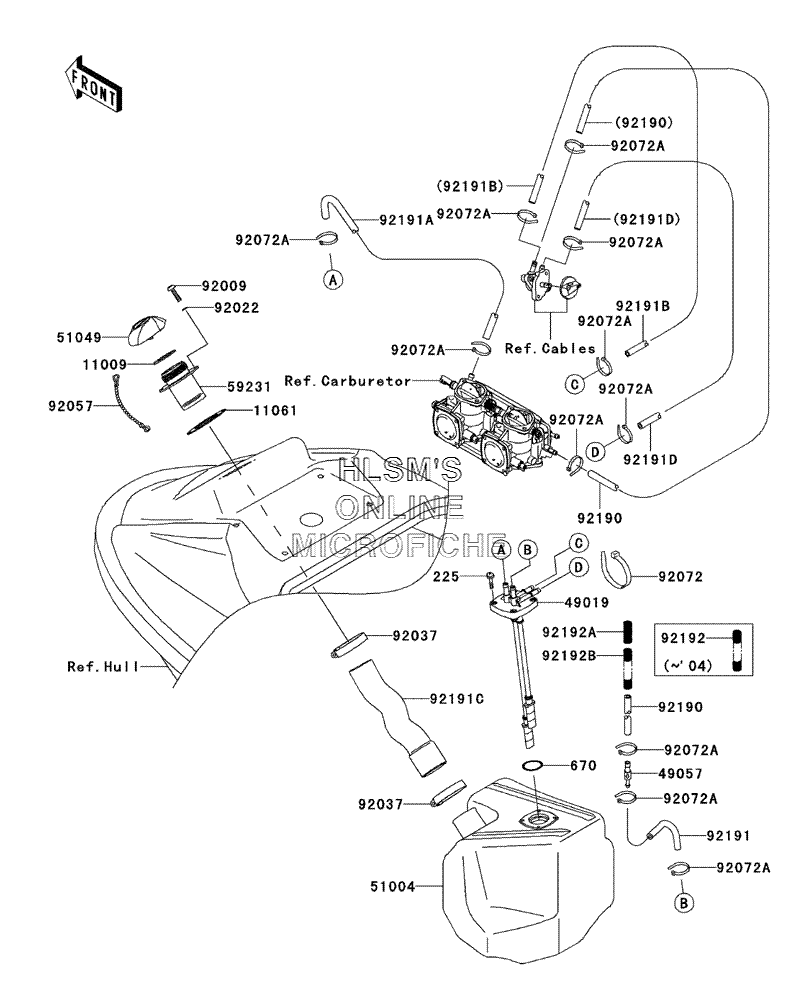

FUEL TANK для Kawasaki 800 SX-R (JS800-A2) - 2004 года выпуска
-
№АртикулНазвание
-
225225R0520 SCREW, PAN, WSP, CROS, 5X20SCREW, PAN, WSP, CROS, 5X20
-
670670B3036 O-RING, 36MMO-RING, 36MM
-
1100911009-3020 GASKET, TANK CAPGASKET, TANK CAP
-
1106111061-3701 GASKETGASKET
-
4901949019-3718 FILTER, FUELFILTER, FUEL
-
4905749057-3707 VALVE, RELIEFVALVE, RELIEF
-
5100451004-3738 TANK, FUELTANK, FUEL
-
5104951049-3725 CAP, TANK, FUELCAP, TANK, FUEL
-
5923159231-3716 FILLER, FUEL TANKFILLER, FUEL TANK
-
9200992009-3849 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
9202292022-563 WASHERWASHER
-
9203792037-3009 CLAMPCLAMP
-
9205792057-3704 CHAIN, COVER, L=100CHAIN, COVER, L=100
-
9207292072-1239 BAND, L=188BAND, L=188
-
92072A92072-3871 BAND, L=99BAND, L=99
-
9219092190-3846 TUBE, 5.8X10.8X500TUBE, 5.8X10.8X500
-
9219192191-3967 TUBE, AIR VENTTUBE, AIR VENT
-
92191A92191-3968 TUBE, "RETURN"TUBE, "RETURN"
-
92191B92191-3969 TUBE, "RES"TUBE, "RES"
-
92191C92191-3970 TUBE, TANK, FILLERTUBE, TANK, FILLER
-
92191D92191-3973 TUBE, "ON"TUBE, "ON"
-
9219292192-3708 TUBETUBE
