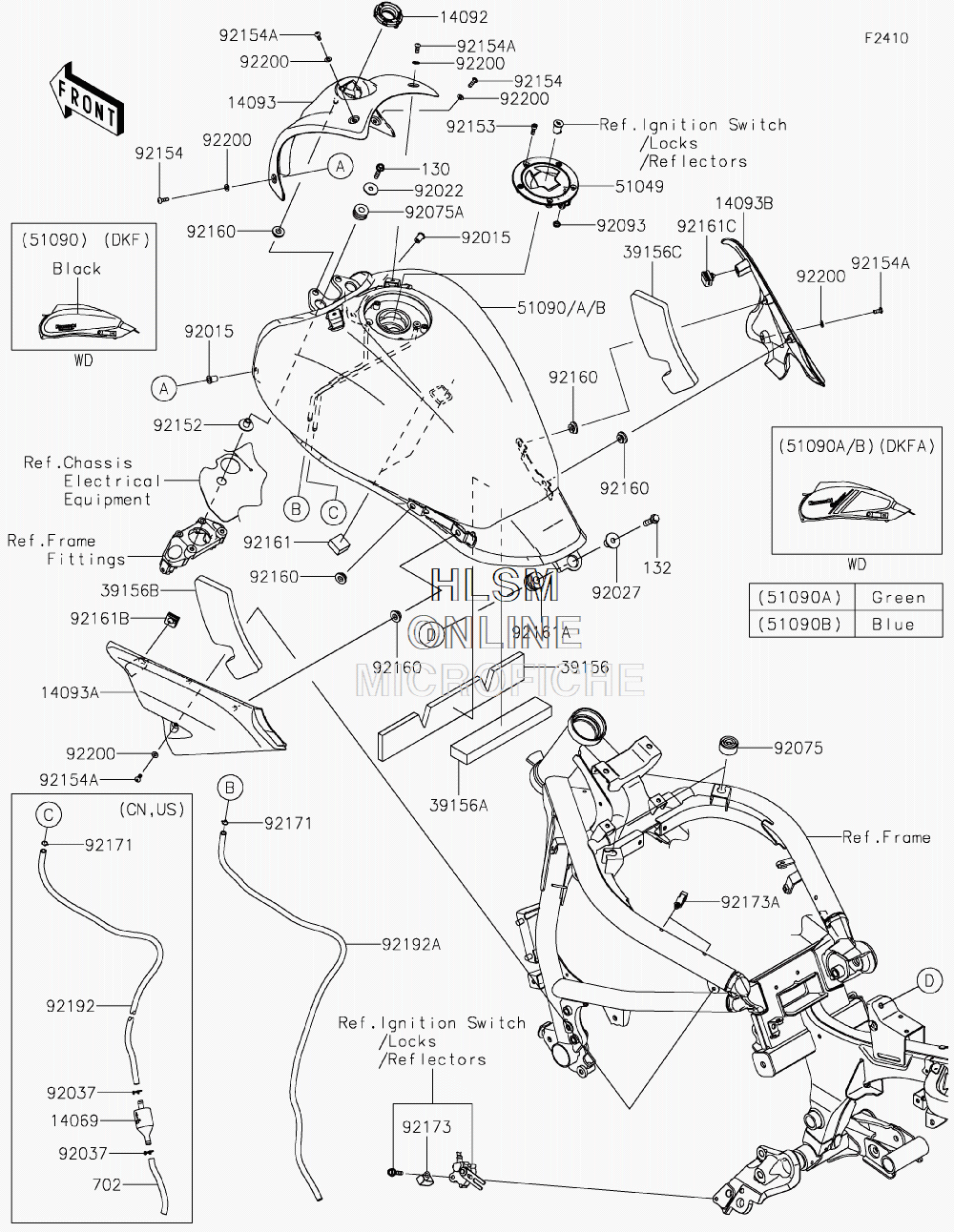

FUEL TANK для Kawasaki VULCAN S ABS SE (EN650DKFA) - 2019 года выпуска

  • №
    Артикул
    Название
  • 130
    130CA0625 BOLT-FLANGED, 6X25
    BOLT-FLANGED, 6X25
  • 132
    132BA0830 BOLT-FLANGED-SMALL, 8X30
    BOLT-FLANGED-SMALL, 8X30
  • 14069
    14069-0703 BREATHER (EXCEPT CALIF.)
    BREATHER (EXCEPT CALIF.)
  • 14092
    14092-1033 COVER, IGNITION SW.
    COVER, IGNITION SW.
  • 14093
    14093-0105-18T COVER, TANK, FRONT, (F.S.BLACK)
    COVER, TANK, FRONT, (F.S.BLACK)
  • 14093A
    14093-0106 COVER, TANK, LEFT HAND
    COVER, TANK, LEFT HAND
  • 14093B
    14093-0107 COVER, TANK, RIGHT HAND
    COVER, TANK, RIGHT HAND
  • 39156
    39156-1833 PAD, 53X334X10
    PAD, 53X334X10
  • 39156A
    39156-1893 PAD, 38X200X20
    PAD, 38X200X20
  • 39156B
    39156-1929 PAD, TANK COVER, LEFT HAND
    PAD, TANK COVER, LEFT HAND
  • 39156C
    39156-1930 PAD, TANK COVER, RIGHT HAND
    PAD, TANK COVER, RIGHT HAND
  • 51049
    51049-0714 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 51090A
    51090-5356-36T TANK-COMP-FUEL, (M.M.C.GREEN) (FOR 36T)
    TANK-COMP-FUEL, (M.M.C.GREEN) (FOR 36T)
  • 51090B
    51090-5358-62K TANK-COMP-FUEL, (S.C.BLUE) (FOR 62K)
    TANK-COMP-FUEL, (S.C.BLUE) (FOR 62K)
  • 702
    702A07100 TUBE-RUBBER, 7X10X100 (EXCEPT CALIF.)
    TUBE-RUBBER, 7X10X100 (EXCEPT CALIF.)
  • 92015
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92022
    92022-228 WASHER, 7X24X1.6
    WASHER, 7X24X1.6
  • 92027
    92027-1780 COLLAR, L=19.3
    COLLAR, L=19.3
  • 92037
    92037-147 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92075
    92075-015 DAMPER
    DAMPER
  • 92075A
    92075-1690 DAMPER, 10X24X12
    DAMPER, 10X24X12
  • 92093
    92093-1030 SEAL, FUEL TANK CAP
    SEAL, FUEL TANK CAP
  • 92152
    92152-0910 COLLAR, 6.5X10X13.1
    COLLAR, 6.5X10X13.1
  • 92153
    92153-1616 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92154
    92154-1470 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92154A
    92154-1471 BOLT, SOCKET, 5X12
    BOLT, SOCKET, 5X12
  • 92160
    92160-1613 DAMPER
    DAMPER
  • 92161
    92161-0792 DAMPER, T=13
    DAMPER, T=13
  • 92161A
    92161-1494 DAMPER, 12X28X17
    DAMPER, 12X28X17
  • 92161B
    92161-1679 DAMPER, TANK COVER, LEFT HAND
    DAMPER, TANK COVER, LEFT HAND
  • 92161C
    92161-1744 DAMPER, TANK COVER, RIGHT HAND
    DAMPER, TANK COVER, RIGHT HAND
  • 92171
    92171-1973 CLAMP, 8X0.7 (EXCEPT CALIF.)
    CLAMP, 8X0.7 (EXCEPT CALIF.)
  • 92171
    92171-1973 CLAMP, 8X0.7 (CALIF. ONLY)
    CLAMP, 8X0.7 (CALIF. ONLY)
  • 92173
    92173-0833 CLAMP
    CLAMP
  • 92173A
    92173-0868 CLAMP, HOLDER CLIP
    CLAMP, HOLDER CLIP
  • 92192
    92192-1389 TUBE, BREATHER, 6X9X720 (EXCEPT CALIF.)
    TUBE, BREATHER, 6X9X720 (EXCEPT CALIF.)
  • 92192A
    92192-1433 TUBE, DRAIN, 6X9X870
    TUBE, DRAIN, 6X9X870
  • 92200
    92200-0973 WASHER, 5.3X11X1
    WASHER, 5.3X11X1
