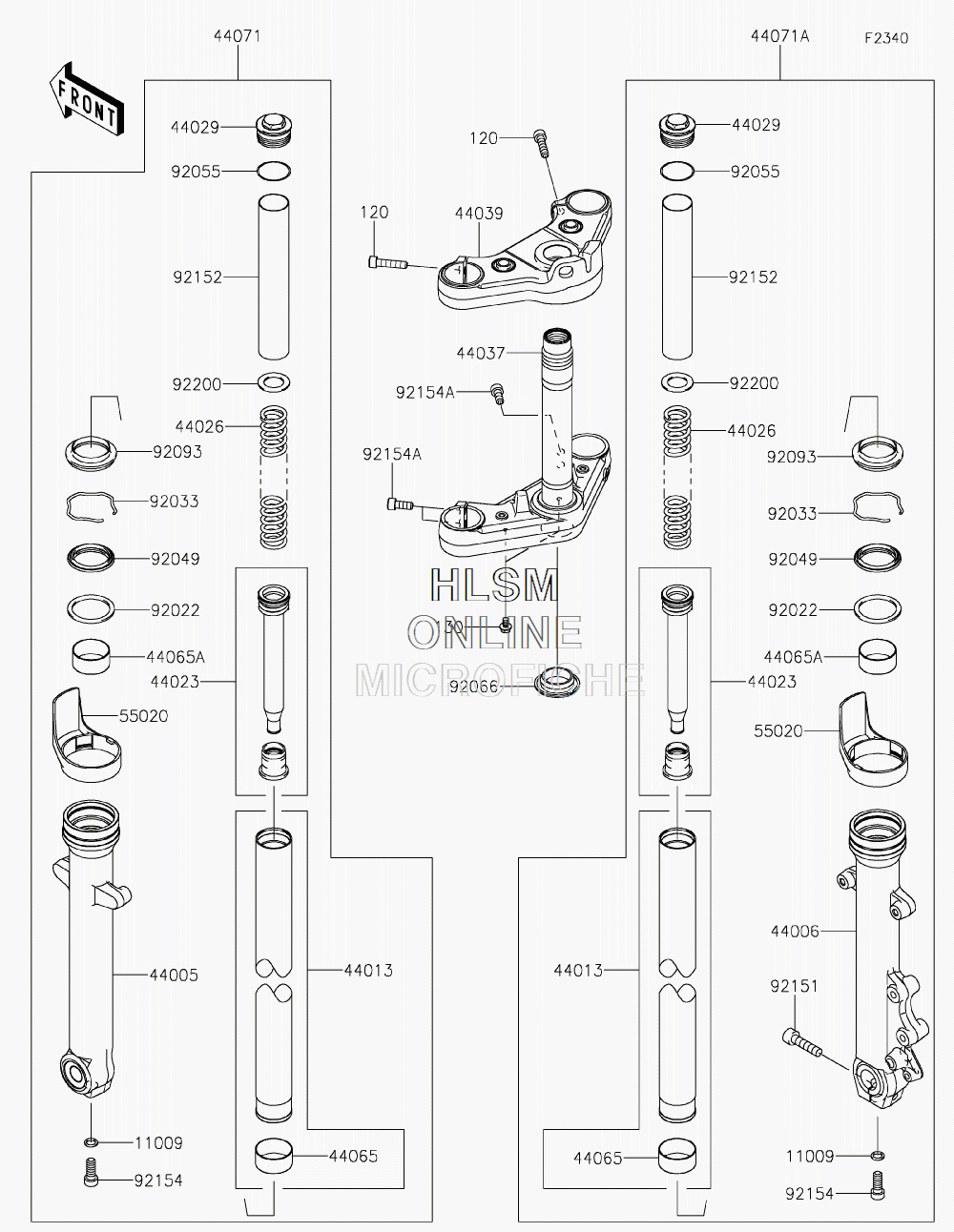

FRONT FORK для Kawasaki VULCAN S ABS SE (EN650DKFA) - 2019 года выпуска
-
№АртикулНазвание
-
1100911009-1325 GASKET, 10.5X15X1.5GASKET, 10.5X15X1.5
-
120120CB0835 BOLT-SOCKET, 8X35BOLT-SOCKET, 8X35
-
130130BB0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
4400544005-0101-32A PIPE-LEFT FORK OUTER, (S.BLACK)PIPE-LEFT FORK OUTER, (S.BLACK)
-
4400644006-0101-32A PIPE-RIGHT FORK OUTER, (S.BLACK)PIPE-RIGHT FORK OUTER, (S.BLACK)
-
4401344013-0270 PIPE-FORK INNERPIPE-FORK INNER
-
4402344023-0133 CYLINDER-SET-FORKCYLINDER-SET-FORK
-
4402644026-0196 SPRING-FRONT FORKSPRING-FRONT FORK
-
4402944029-0005 SEAT-FORK SPRINGSEAT-FORK SPRING
-
4403744037-0150-18R HOLDER-FORK UNDER, (F.S.BLACK)HOLDER-FORK UNDER, (F.S.BLACK)
-
4403944039-0146-21 HOLDER-FORK UPPERER, (F.BLACK)HOLDER-FORK UPPERER, (F.BLACK)
-
4406544065-0014 BUSHING-FRONT FORK, INNER TUBEBUSHING-FRONT FORK, INNER TUBE
-
44065A44065-1115 BUSHING-FRONT FORK, OUTER TUBEBUSHING-FRONT FORK, OUTER TUBE
-
4407144071-0988-32A DAMPER-ASSY, FORK, LEFT HAND, (S.BLACK)DAMPER-ASSY, FORK, LEFT HAND, (S.BLACK)
-
44071A44071-0990-32A DAMPER-ASSY, FORK, RIGHT HAND, (S.BLACK)DAMPER-ASSY, FORK, RIGHT HAND, (S.BLACK)
-
5502055020-0872 GUARD, FORKGUARD, FORK
-
9202292022-1298 WASHER, FORK OUTER TUBEWASHER, FORK OUTER TUBE
-
9203392033-1036 RING-SNAPRING-SNAP
-
9204992049-0073 SEAL-OILSEAL-OIL
-
9205592055-1321 RING-ORING-O
-
9206692066-0817 PLUGPLUG
-
9209392093-1472 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9215192151-1357 BOLT, SOCKET, 10X40BOLT, SOCKET, 10X40
-
9215292152-2153 COLLARCOLLAR
-
9215492154-0296 BOLT, SOCKET, FORK CYLINDERBOLT, SOCKET, FORK CYLINDER
-
92154A92154-1811 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9220092200-1467 WASHERWASHER
