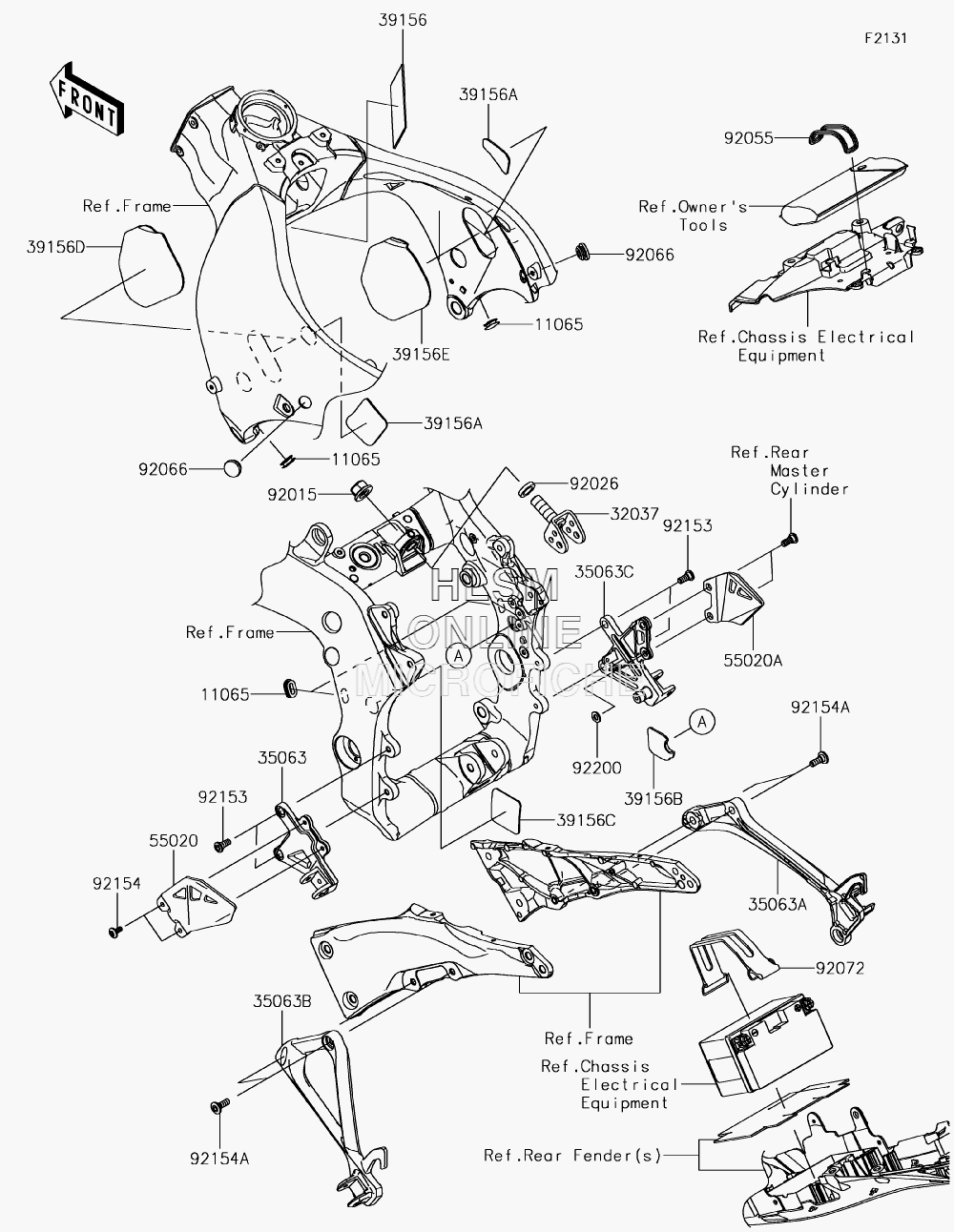

FRAME FITTINGS для Kawasaki NINJA ZX-10R ABS (ZX1000SJF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 11065
    11065-0095 CAP
    CAP
  • 32037
    32037-0149 BRACKET-SHOCKABSORBER
    BRACKET-SHOCKABSORBER
  • 35063
    35063-0697-18R STAY, FRONT STEP, LEFT HAND, (F.S.BLACK)
    STAY, FRONT STEP, LEFT HAND, (F.S.BLACK)
  • 35063A
    35063-0700-18R STAY, REAR STEP, RIGHT HAND, (F.S.BLACK)
    STAY, REAR STEP, RIGHT HAND, (F.S.BLACK)
  • 35063B
    35063-0852-18R STAY, REAR STEP, LEFT HAND, (F.S.BLACK)
    STAY, REAR STEP, LEFT HAND, (F.S.BLACK)
  • 35063C
    35063-1331-18R STAY, FRONT STEP, RIGHT HAND, (F.S.BLACK)
    STAY, FRONT STEP, RIGHT HAND, (F.S.BLACK)
  • 39156
    39156-0923 PAD, 50X115X2
    PAD, 50X115X2
  • 39156A
    39156-1961 PAD, 55X55X2
    PAD, 55X55X2
  • 39156B
    39156-1964 PAD, 45X50.5X2
    PAD, 45X50.5X2
  • 39156C
    39156-2116 PAD, 55.5X55.5X0.5
    PAD, 55.5X55.5X0.5
  • 39156D
    39156-2213 PAD, LEFT HAND
    PAD, LEFT HAND
  • 39156E
    39156-2214 PAD, RIGHT HAND
    PAD, RIGHT HAND
  • 55020
    55020-0569 GUARD, FRONT STEP, LEFT HAND
    GUARD, FRONT STEP, LEFT HAND
  • 55020A
    55020-1944 GUARD, FRONT STEP, RIGHT HAND
    GUARD, FRONT STEP, RIGHT HAND
  • 92015
    92015-1316 NUT, FLANGED, 16MM
    NUT, FLANGED, 16MM
  • 92026
    92026-0813 SPACER, 16.5X26X5.2
    SPACER, 16.5X26X5.2
  • 92055
    92055-0881 RING-O, 54.6X5.7
    RING-O, 54.6X5.7
  • 92066
    92066-1320 PLUG, 17MM
    PLUG, 17MM
  • 92072
    92072-1306 BAND, L=168
    BAND, L=168
  • 92153
    92153-1621 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 92154
    92154-1735 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92154A
    92154-1968 BOLT, SOCKET, 8X23
    BOLT, SOCKET, 8X23
  • 92200
    92200-0807 WASHER, 8.4X16X1.6
    WASHER, 8.4X16X1.6
