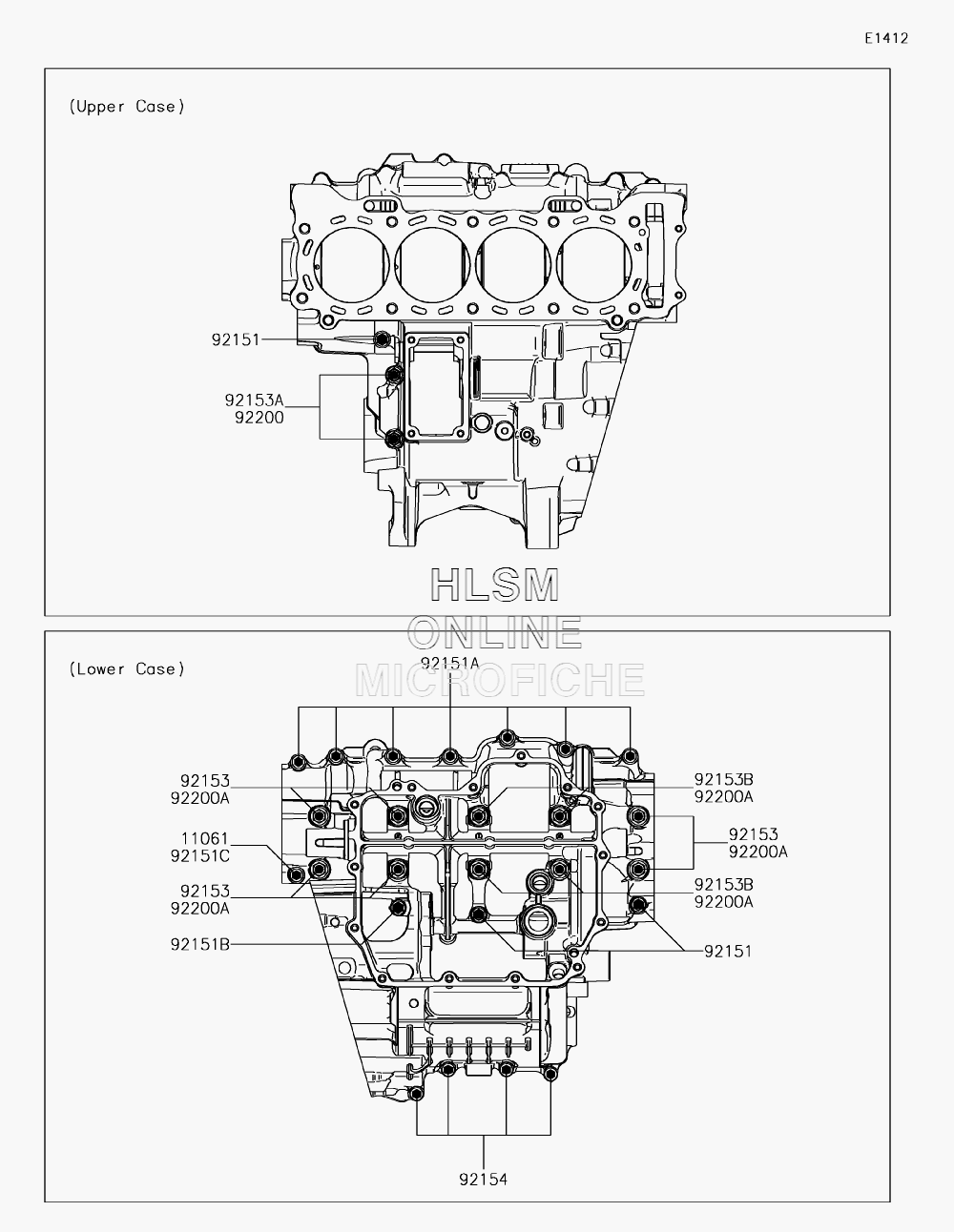

CRANKCASE BOLT PATTERN для Kawasaki NINJA ZX-10R ABS (ZX1000SJF) - 2018 года выпуска
-
№АртикулНазвание
-
1106111061-0262 GASKET, 6.2X13.5X1.0GASKET, 6.2X13.5X1.0
-
9215192151-1223 BOLT, FLANGED, 7X50BOLT, FLANGED, 7X50
-
92151A92151-1521 BOLT, FLANGED, 6X45BOLT, FLANGED, 6X45
-
92151B92151-1539 BOLT, FLANGED, 7X45BOLT, FLANGED, 7X45
-
92151C92151-1791 BOLT, 6X60BOLT, 6X60
-
9215392153-0447 BOLT, FLANGED, 9X100BOLT, FLANGED, 9X100
-
92153A92153-1110 BOLT, 8X63BOLT, 8X63
-
92153B92153-1449 BOLT, FLANGED, 9X113BOLT, FLANGED, 9X113
-
9215492154-0861 BOLT, FLANGED, 6X40BOLT, FLANGED, 6X40
-
9220092200-0047 WASHER, 8.2X16X1.6WASHER, 8.2X16X1.6
-
92200A92200-0115 WASHER, 9.2X19X2.3WASHER, 9.2X19X2.3
