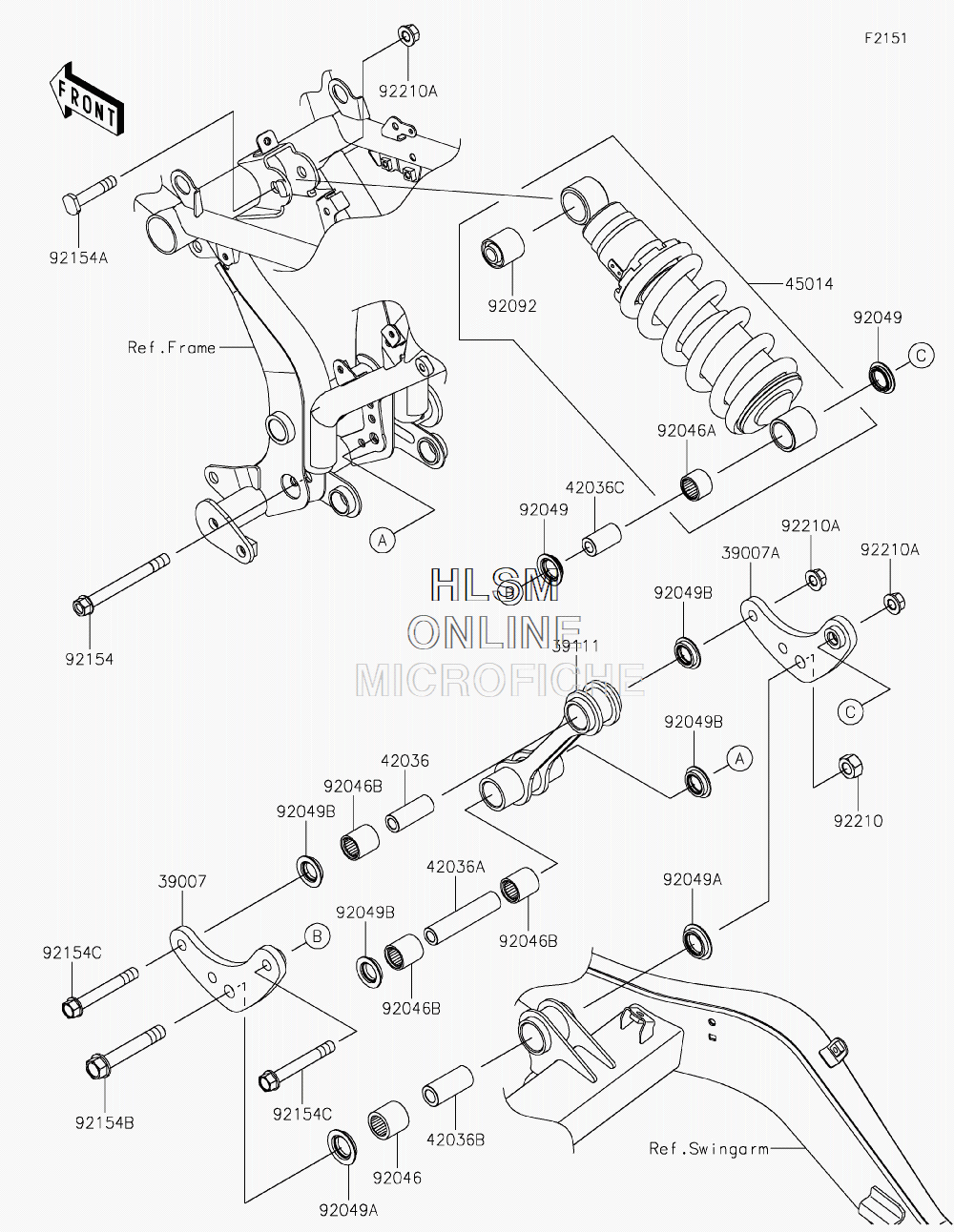

SUSPENSION - SHOCK ABSORBER для Kawasaki Z650 ABS (ER650HHF) - 2017 года выпуска`
-
№АртикулНазвание
-
3900739007-0401 ARM-SUSP, LEFT HANDARM-SUSP, LEFT HAND
-
39007A39007-0402 ARM-SUSP, RIGHT HANDARM-SUSP, RIGHT HAND
-
3911139111-0343 ROD-TIEROD-TIE
-
4203642036-0718 SLEEVE, 10.1X17X44.5SLEEVE, 10.1X17X44.5
-
42036A42036-0787 SLEEVE, 10.1X17X79.8SLEEVE, 10.1X17X79.8
-
42036B42036-0788 SLEEVE, 12.1X20X44.5SLEEVE, 12.1X20X44.5
-
42036C42036-1344 SLEEVE, 10.1X18X32SLEEVE, 10.1X18X32
-
4501445014-0565-458 SHOCKABSORBER, (P.SILVER) (FOR ALL COLORS)SHOCKABSORBER, (P.SILVER) (FOR ALL COLORS)
-
9204692046-1236 BEARING-NEEDLE, 7E-HVS20X27X25BEARING-NEEDLE, 7E-HVS20X27X25
-
92046A92046-1272 BEARING-NEEDLE, SFYZM182417BEARING-NEEDLE, SFYZM182417
-
92046B92046-1273 BEARING-NEEDLE, SFYZM172425BEARING-NEEDLE, SFYZM172425
-
9204992049-0133 SEAL-OILSEAL-OIL
-
92049A92049-1109 SEAL-OIL, ARMSEAL-OIL, ARM
-
92049B92049-1223 SEAL-OIL, MHA17245.7FSEAL-OIL, MHA17245.7F
-
9209292092-1058 BUSHING-RUBBERBUSHING-RUBBER
-
9215492154-1257 BOLT, FLANGED, 10X100BOLT, FLANGED, 10X100
-
92154A92154-2165 BOLT, 10X50BOLT, 10X50
-
92154B92154-2166 BOLT, FLANGED, 12X75BOLT, FLANGED, 12X75
-
92154C92154-2226 BOLT, FLANGED, 10X75BOLT, FLANGED, 10X75
-
9221092210-0274 NUT, LOCK, 12MMNUT, LOCK, 12MM
-
92210A92210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
