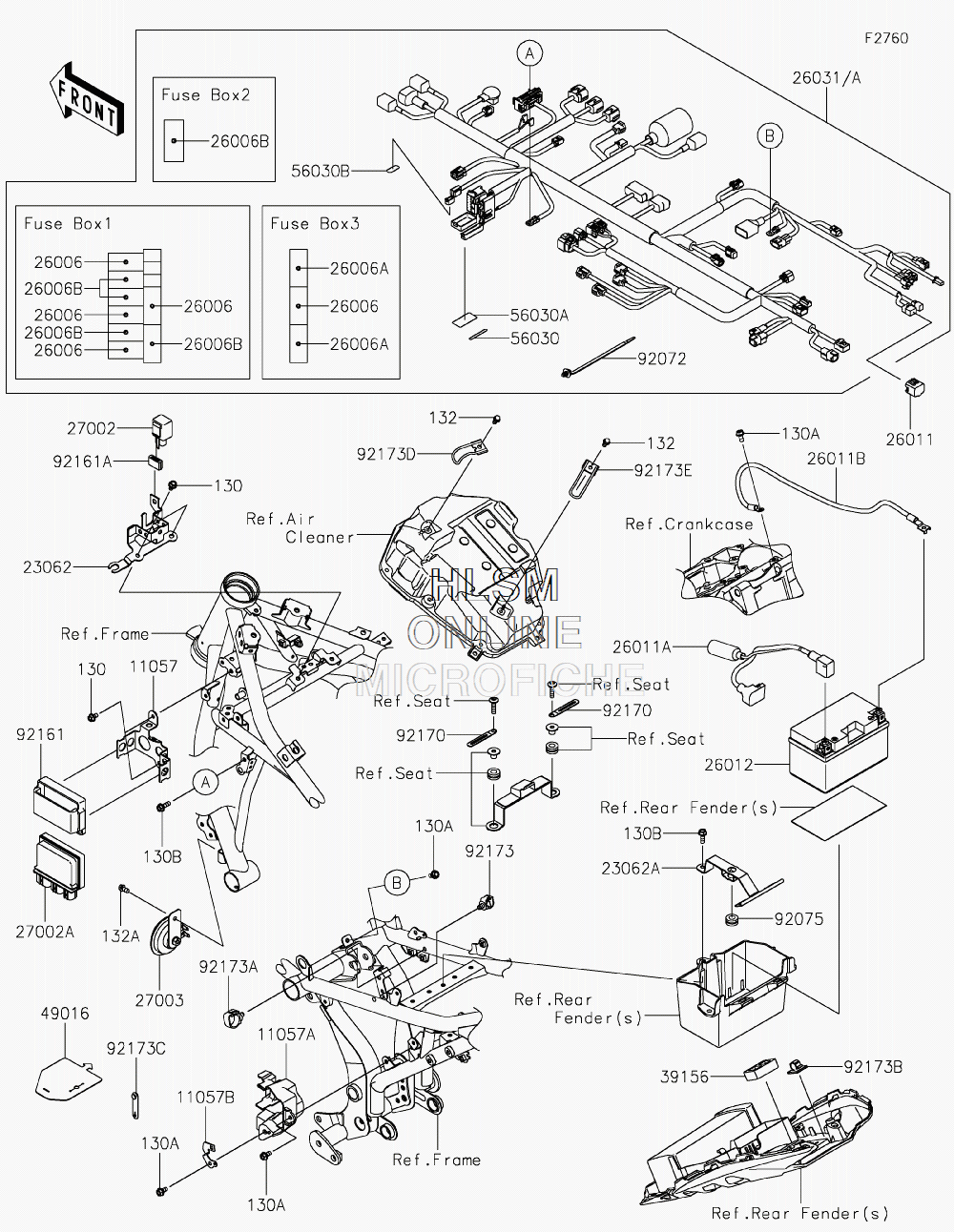

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Z650 ABS (ER650HHF) - 2017 года выпуска

  • №
    Артикул
    Название
  • 11057
    11057-0077 BRACKET, RELAY BOX
    BRACKET, RELAY BOX
  • 11057A
    11057-0137 BRACKET, MAGNETIC SW.
    BRACKET, MAGNETIC SW.
  • 11057B
    11057-0138 BRACKET, COUPLER
    BRACKET, COUPLER
  • 130
    130BA0610 BOLT-FLANGED, 6X10
    BOLT-FLANGED, 6X10
  • 130A
    130BA0612 BOLT-FLANGED, 6X12
    BOLT-FLANGED, 6X12
  • 130B
    130BA0618 BOLT-FLANGED, 6X18
    BOLT-FLANGED, 6X18
  • 132
    132BA0610 BOLT-FLANGED-SMALL, 6X10
    BOLT-FLANGED-SMALL, 6X10
  • 132A
    132BB0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 23062
    23062-0875 BRACKET-COMP, VD SENSOR
    BRACKET-COMP, VD SENSOR
  • 23062A
    23062-0899 BRACKET-COMP, BATTERY
    BRACKET-COMP, BATTERY
  • 26006
    26006-0001 FUSE, MINI BLADE, 15A, (BLUE)
    FUSE, MINI BLADE, 15A, (BLUE)
  • 26006A
    26006-0020 FUSE, MINI BLADE, 25A, (NATURAL)
    FUSE, MINI BLADE, 25A, (NATURAL)
  • 26006B
    26006-1078 FUSE, MINI BLADE, 10A, (RED)
    FUSE, MINI BLADE, 10A, (RED)
  • 26011
    26011-0275 WIRE-LEAD, CONNECTOR COVER
    WIRE-LEAD, CONNECTOR COVER
  • 26011A
    26011-0980 WIRE-LEAD, BATTERY(+)
    WIRE-LEAD, BATTERY(+)
  • 26011B
    26011-0981 WIRE-LEAD, BATTERY(-)
    WIRE-LEAD, BATTERY(-)
  • 26012
    26012-0564 BATTERY, YTZ10S, 12V 8.6AH
    BATTERY, YTZ10S, 12V 8.6AH
  • 26031
    26031-2326 HARNESS, MAIN (CALIF. ONLY)
    HARNESS, MAIN (CALIF. ONLY)
  • 26031A
    26031-2327 HARNESS, MAIN (EXCEPT CALIF.)
    HARNESS, MAIN (EXCEPT CALIF.)
  • 27002
    27002-0006 RELAY-ASSY, SIGNAL LAMP
    RELAY-ASSY, SIGNAL LAMP
  • 27002A
    27002-0025 RELAY-ASSY, BOX
    RELAY-ASSY, BOX
  • 27003
    27003-0056 HORN
    HORN
  • 39156
    39156-2136 PAD, CONNECTOR
    PAD, CONNECTOR
  • 49016
    49016-0645 COVER-SEAL
    COVER-SEAL
  • 56030
    56030-0400 LABEL, FUSE BOX3
    LABEL, FUSE BOX3
  • 56030A
    56030-0705 LABEL, FUSE BOX1
    LABEL, FUSE BOX1
  • 56030B
    56030-0706 LABEL, FUSE BOX2
    LABEL, FUSE BOX2
  • 92072
    92072-1414 BAND, OS170-FT7 (BLACK)
    BAND, OS170-FT7 (BLACK)
  • 92075
    92075-1880 DAMPER
    DAMPER
  • 92161
    92161-0203 DAMPER, RELAY BOX
    DAMPER, RELAY BOX
  • 92161A
    92161-1443 DAMPER, 15X25X8.5
    DAMPER, 15X25X8.5
  • 92170
    92170-1514 CLAMP
    CLAMP
  • 92173
    92173-0736 CLAMP, 12MM DIA.
    CLAMP, 12MM DIA.
  • 92173A
    92173-0861 CLAMP
    CLAMP
  • 92173B
    92173-1055 CLAMP, DRAIN
    CLAMP, DRAIN
  • 92173C
    92173-1229 CLAMP, RUBBER PLATE
    CLAMP, RUBBER PLATE
  • 92173D
    92173-1586 CLAMP, A/C CASE, FRONT
    CLAMP, A/C CASE, FRONT
  • 92173E
    92173-1587 CLAMP, A/C CASE, REAR
    CLAMP, A/C CASE, REAR
