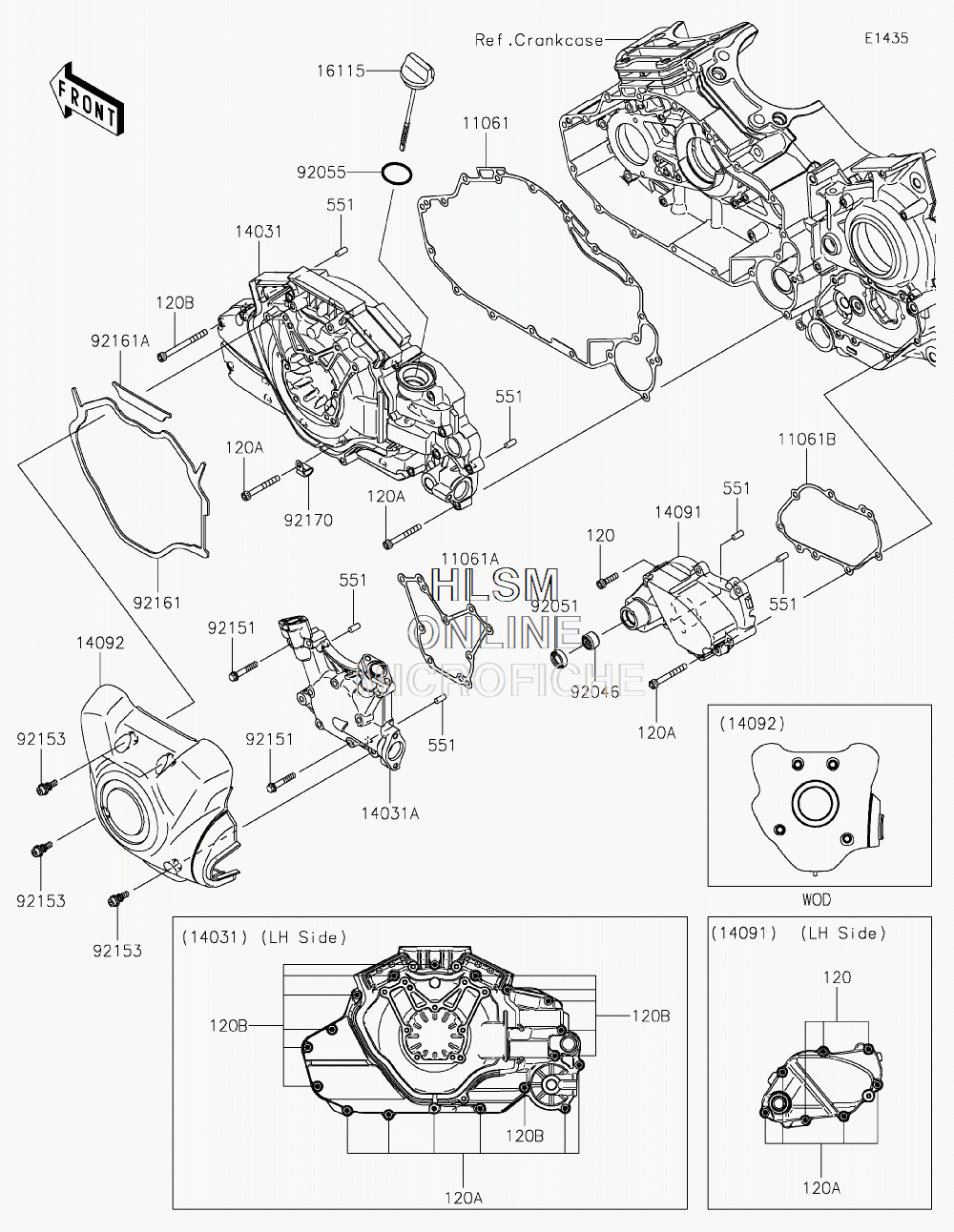

ENGINE COVER(S) - LEFT для Kawasaki VULCAN 1700 VAQUERO ABS (VN1700KHF) - 2017 года выпуска`
-
№АртикулНазвание
-
1106111061-0338 GASKET, GENERATOR COVER, INGASKET, GENERATOR COVER, IN
-
11061A11061-0339 GASKET, GENERATOR COVER, MIDGASKET, GENERATOR COVER, MID
-
11061B11061-0340 GASKET, CHANGE COVERGASKET, CHANGE COVER
-
120120CC0622 BOLT-SOCKET, 6X22BOLT-SOCKET, 6X22
-
120A120CC0650 BOLT-SOCKET, 6X50BOLT-SOCKET, 6X50
-
120B120CC0670 BOLT-SOCKET, 6X70BOLT-SOCKET, 6X70
-
1403114031-0093 COVER-GENERATOR, INNERCOVER-GENERATOR, INNER
-
14031A14031-0094 COVER-GENERATOR, MIDDLECOVER-GENERATOR, MIDDLE
-
1409114091-1807 COVER, CHANGECOVER, CHANGE
-
1409214092-0245 COVER, GENERATOR OUTERCOVER, GENERATOR OUTER
-
1611516115-0019 CAP-OIL FILLERCAP-OIL FILLER
-
551551A0614 PIN-DOWEL, 6X14PIN-DOWEL, 6X14
-
9204692046-1148 BEARING-NEEDLE, HK1312BEARING-NEEDLE, HK1312
-
9205192051-005 SEAL-OIL, TB13225.5SEAL-OIL, TB13225.5
-
9205592055-049 RING-O, 31.5X2.6RING-O, 31.5X2.6
-
9215192151-1624 BOLT, 6X35BOLT, 6X35
-
9215392153-1331 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
-
9216192161-0668 DAMPERDAMPER
-
92161A92161-0672 DAMPERDAMPER
-
9217092170-1577 CLAMPCLAMP
