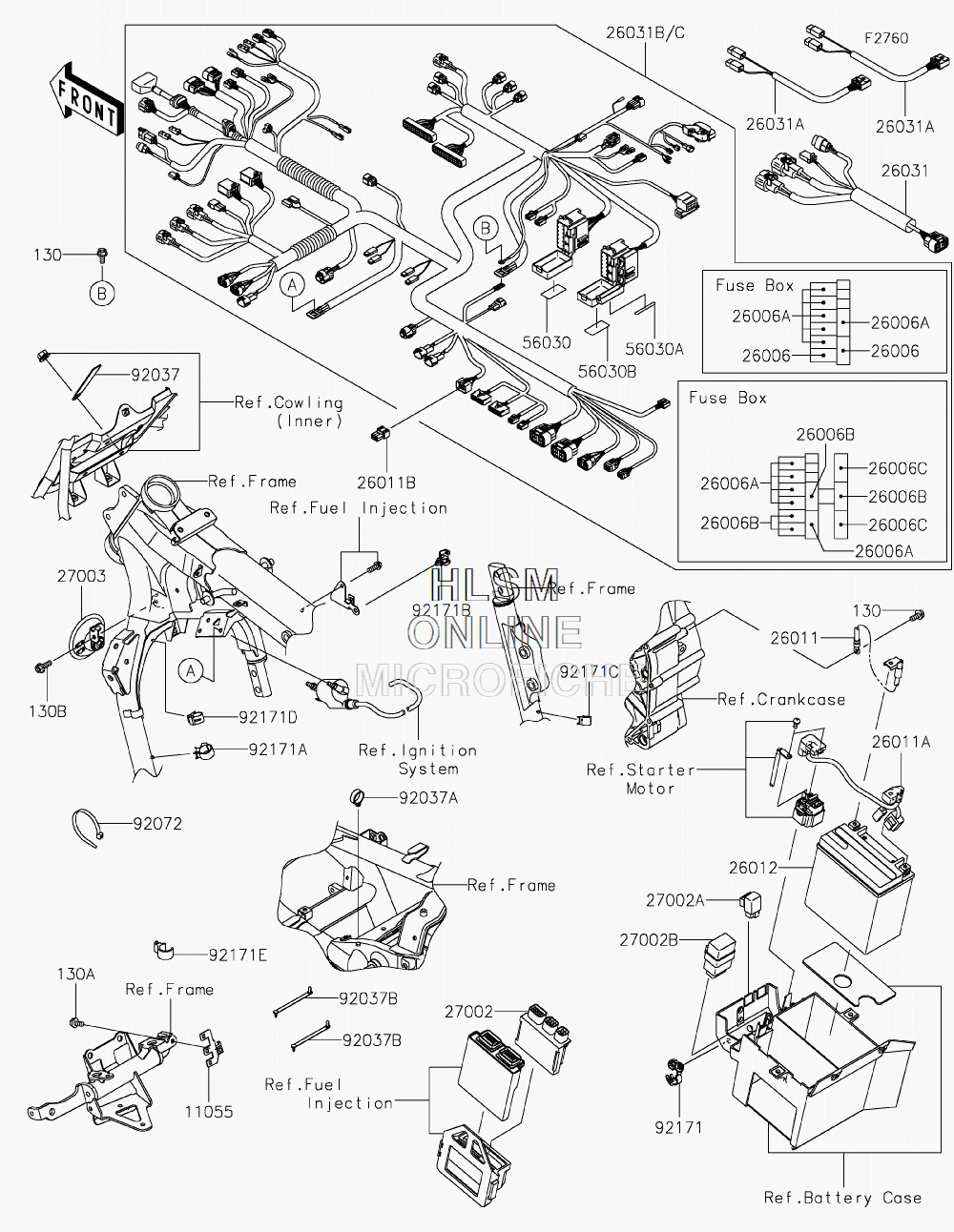

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki VULCAN 1700 VAQUERO ABS (VN1700KHF) - 2017 года выпуска

  • №
    Артикул
    Название
  • 11055
    11055-0613 BRACKET, CONNECTOR
    BRACKET, CONNECTOR
  • 130
    130BA0614 BOLT-FLANGED, 6X14
    BOLT-FLANGED, 6X14
  • 130A
    130BB0612 BOLT-FLANGED, 6X12
    BOLT-FLANGED, 6X12
  • 130B
    130BB0618 BOLT-FLANGED, 6X18
    BOLT-FLANGED, 6X18
  • 26006
    26006-1077 FUSE, MINI BLADE, 5A, (TAN)
    FUSE, MINI BLADE, 5A, (TAN)
  • 26006A
    26006-1078 FUSE, MINI BLADE, 10A, (RED)
    FUSE, MINI BLADE, 10A, (RED)
  • 26006B
    26006-1079 FUSE, MINI BLADE, 20A, (YELLOW)
    FUSE, MINI BLADE, 20A, (YELLOW)
  • 26006C
    26006-1080 FUSE, MINI BLADE, 30A, (GREEN)
    FUSE, MINI BLADE, 30A, (GREEN)
  • 26011
    26011-0180 WIRE-LEAD, BATTERY(-)
    WIRE-LEAD, BATTERY(-)
  • 26011A
    26011-0193 WIRE-LEAD, BATTERY(+)
    WIRE-LEAD, BATTERY(+)
  • 26011B
    26011-0275 WIRE-LEAD, CONNECTOR COVER
    WIRE-LEAD, CONNECTOR COVER
  • 26012
    26012-0589 BATTERY, FTZ16-BS, 12V 18AH
    BATTERY, FTZ16-BS, 12V 18AH
  • 26031
    26031-0651 HARNESS, REAR, SUB
    HARNESS, REAR, SUB
  • 26031A
    26031-0778 HARNESS, SPEAKER
    HARNESS, SPEAKER
  • 26031C
    26031-2246 HARNESS, MAIN
    HARNESS, MAIN
  • 27002
    27002-0025 RELAY-ASSY, BOX
    RELAY-ASSY, BOX
  • 27002A
    27002-1062 RELAY-ASSY
    RELAY-ASSY
  • 27002B
    27002-1113 RELAY-ASSY, SIGNAL LAMP
    RELAY-ASSY, SIGNAL LAMP
  • 27003
    27003-0055 HORN
    HORN
  • 56030
    56030-0177 LABEL, FUSE BOX
    LABEL, FUSE BOX
  • 56030A
    56030-0189 LABEL, FUSE BOX
    LABEL, FUSE BOX
  • 56030B
    56030-0294 LABEL, FUSE BOX
    LABEL, FUSE BOX
  • 92037
    92037-1636 CLAMP, HARNESS, L=100
    CLAMP, HARNESS, L=100
  • 92037A
    92037-1827 CLAMP, HOSE
    CLAMP, HOSE
  • 92037B
    92037-1903 CLAMP, SPEED, L=80.5
    CLAMP, SPEED, L=80.5
  • 92072
    92072-1195 BAND, L=202
    BAND, L=202
  • 92171
    92171-0068 CLAMP, CLIP, DIA=20
    CLAMP, CLIP, DIA=20
  • 92171A
    92171-0081 CLAMP, 20MM DIA.
    CLAMP, 20MM DIA.
  • 92171B
    92171-1415 CLAMP, 13MM DIA.
    CLAMP, 13MM DIA.
  • 92171C
    92171-1423 CLAMP, 10MM DIA.
    CLAMP, 10MM DIA.
  • 92171D
    92171-1424 CLAMP, 15MM DIA.
    CLAMP, 15MM DIA.
  • 92171E
    92171-1460 CLAMP
    CLAMP
