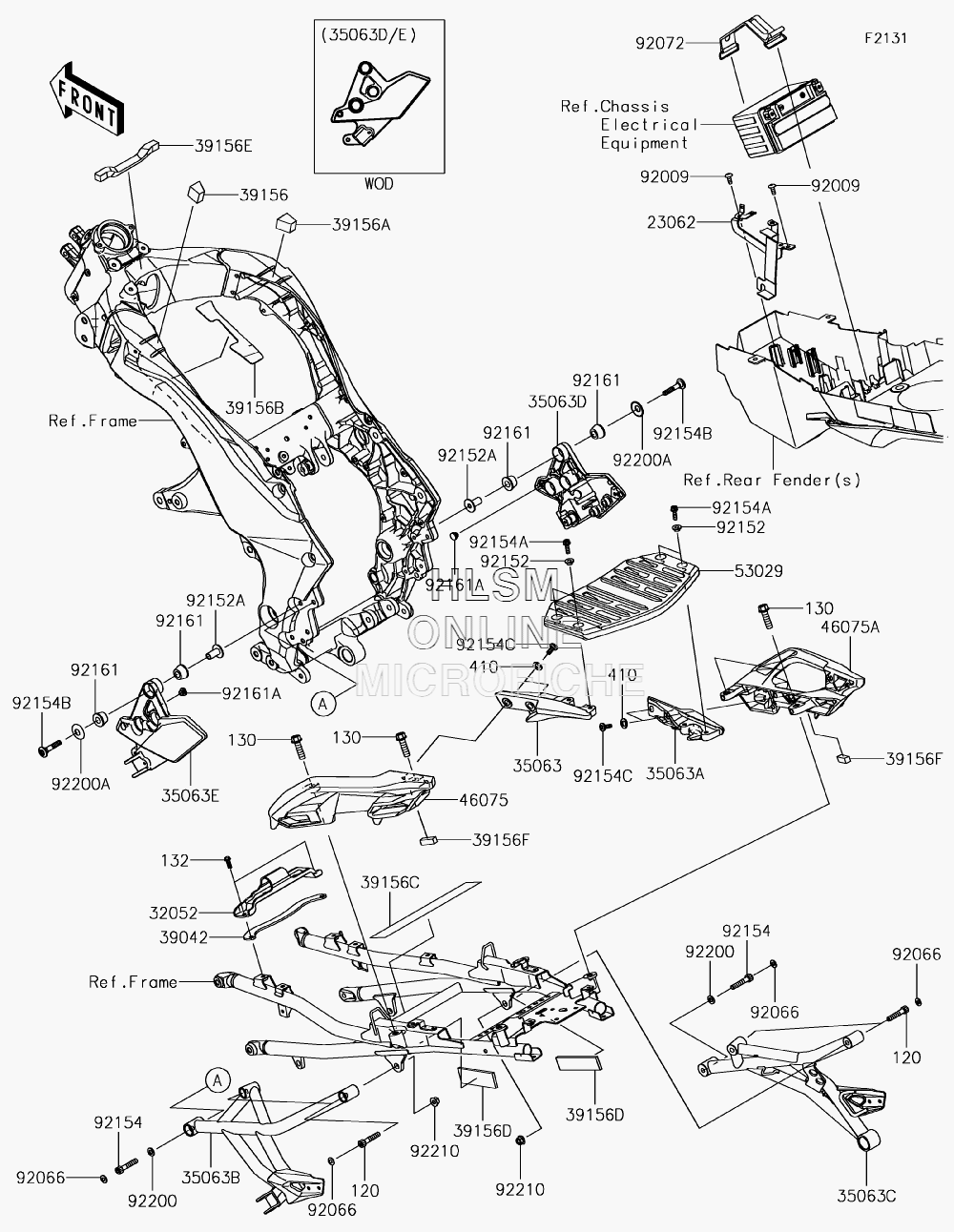

FRAME FITTINGS для Kawasaki VERSYS 1000 LT (KLZ1000BHF) - 2017 года выпуска

  • №
    Артикул
    Название
  • 120
    120CB0840 BOLT-SOCKET, 8X40
    BOLT-SOCKET, 8X40
  • 130
    130CA1035 BOLT-FLANGED, 10X35
    BOLT-FLANGED, 10X35
  • 132
    132BA0616 BOLT-FLANGED-SMALL, 6X16
    BOLT-FLANGED-SMALL, 6X16
  • 23062
    23062-0768 BRACKET-COMP, ECU
    BRACKET-COMP, ECU
  • 32052
    32052-0719 BRACKET-TANK
    BRACKET-TANK
  • 35063
    35063-0971-18R STAY, CARRIER, LEFT HAND, (F.S.BLACK)
    STAY, CARRIER, LEFT HAND, (F.S.BLACK)
  • 35063A
    35063-0972-18R STAY, CARRIER, RIGHT HAND, (F.S.BLACK)
    STAY, CARRIER, RIGHT HAND, (F.S.BLACK)
  • 35063B
    35063-0982-18R STAY, STEP, LEFT HAND, REAR, (F.S.BLACK)
    STAY, STEP, LEFT HAND, REAR, (F.S.BLACK)
  • 35063C
    35063-0983-18R STAY, STEP, RIGHT HAND, REAR, (F.S.BLACK)
    STAY, STEP, RIGHT HAND, REAR, (F.S.BLACK)
  • 35063D
    35063-0987-18R STAY, STEP, RIGHT HAND, FRONT, (F.S.BLACK)
    STAY, STEP, RIGHT HAND, FRONT, (F.S.BLACK)
  • 35063E
    35063-1273-18R STAY, STEP, LEFT HAND, FRONT, (F.S.BLACK)
    STAY, STEP, LEFT HAND, FRONT, (F.S.BLACK)
  • 39042
    39042-0554 CROSSMEMBER
    CROSSMEMBER
  • 39156
    39156-0660 PAD, LEFT HAND
    PAD, LEFT HAND
  • 39156A
    39156-0661 PAD, RIGHT HAND
    PAD, RIGHT HAND
  • 39156B
    39156-1862 PAD, 47X130X1
    PAD, 47X130X1
  • 39156C
    39156-1873 PAD, 30X250X0.5
    PAD, 30X250X0.5
  • 39156D
    39156-1875 PAD, 30X90X5
    PAD, 30X90X5
  • 39156E
    39156-1912 PAD, 10X130X10
    PAD, 10X130X10
  • 39156F
    39156-1939 PAD, 10X30X10
    PAD, 10X30X10
  • 410
    410AA1000 WASHER-PLAIN-SMALL, 10MM
    WASHER-PLAIN-SMALL, 10MM
  • 46075
    46075-0596-18R GRIP, TANDEM, LEFT HAND, (F.S.BLACK)
    GRIP, TANDEM, LEFT HAND, (F.S.BLACK)
  • 46075A
    46075-0597-18R GRIP, TANDEM, RIGHT HAND, (F.S.BLACK)
    GRIP, TANDEM, RIGHT HAND, (F.S.BLACK)
  • 53029
    53029-0329 CARRIER
    CARRIER
  • 92009
    92009-1113 SCREW, TAPPING
    SCREW, TAPPING
  • 92066
    92066-1216 PLUG
    PLUG
  • 92072
    92072-1306 BAND, L=168
    BAND, L=168
  • 92152
    92152-1511 COLLAR, 6.5X10X6.2
    COLLAR, 6.5X10X6.2
  • 92152A
    92152-1594 COLLAR, 8.8X12X25.6
    COLLAR, 8.8X12X25.6
  • 92154
    92154-1001 BOLT, SOCKET, 8X40
    BOLT, SOCKET, 8X40
  • 92154A
    92154-1674 BOLT, SOCKET, 6X20
    BOLT, SOCKET, 6X20
  • 92154B
    92154-1703 BOLT, SOCKET, 8X43.2
    BOLT, SOCKET, 8X43.2
  • 92154C
    92154-1901 BOLT, SOCKET, 8X23
    BOLT, SOCKET, 8X23
  • 92161
    92161-1000 DAMPER, 11.8X26X15
    DAMPER, 11.8X26X15
  • 92161A
    92161-1084 DAMPER
    DAMPER
  • 92200
    92200-0807 WASHER, 8.4X16X1.6
    WASHER, 8.4X16X1.6
  • 92200A
    92200-1729 WASHER, 12.5X30X3
    WASHER, 12.5X30X3
  • 92210
    92210-0159 NUT, FLANGED, LOCK, 8MM
    NUT, FLANGED, LOCK, 8MM
