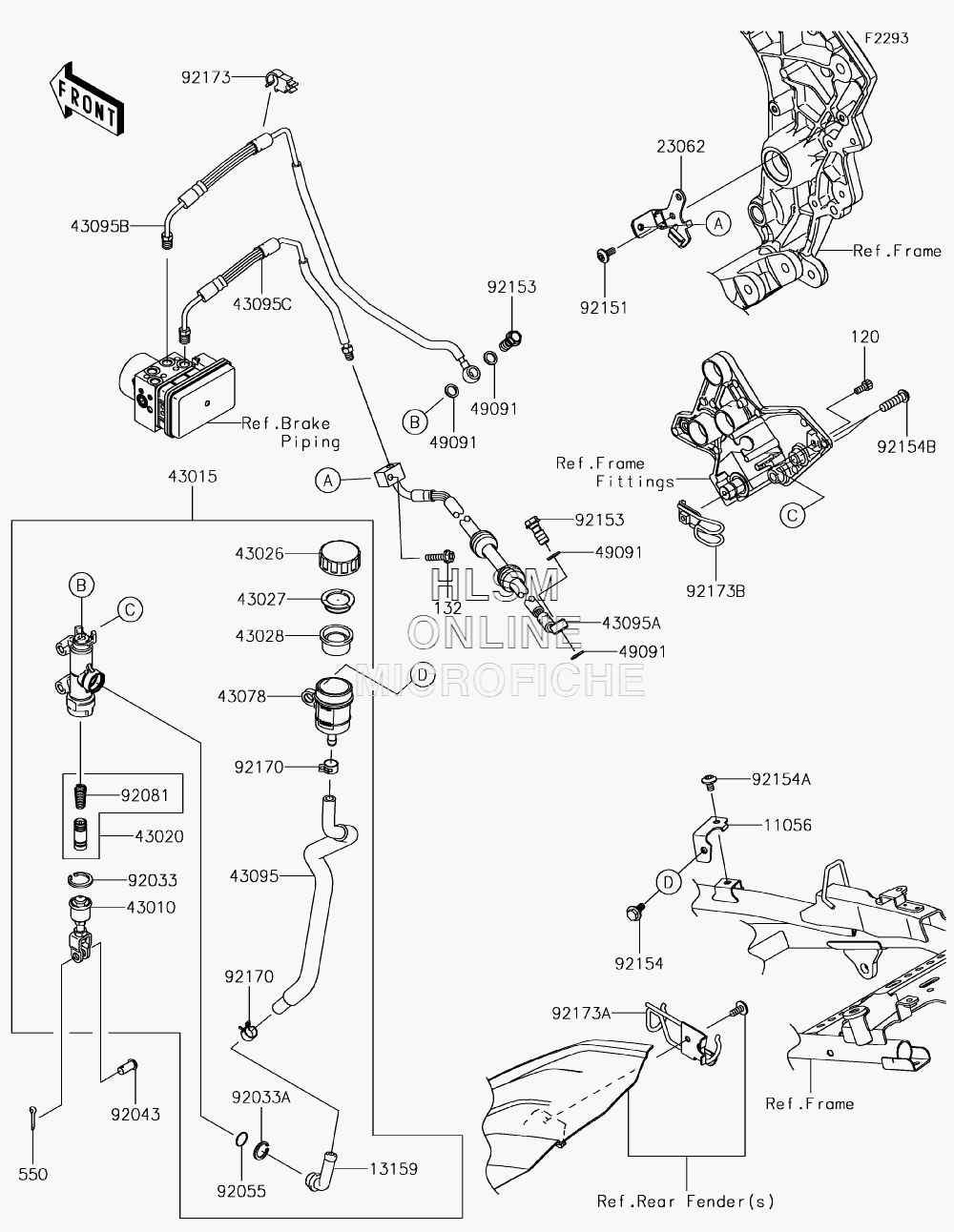

BRAKE - MASTER CYLINDER - REAR для Kawasaki VERSYS 1000 LT (KLZ1000BHF) - 2017 года выпуска`
-
№АртикулНазвание
-
1105611056-7304 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
120120CB0614 BOLT-SOCKET, 6X14BOLT-SOCKET, 6X14
-
1315913159-1056 CONNECTORCONNECTOR
-
132132BA0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
2306223062-0756 BRACKET-COMPBRACKET-COMP
-
4301043010-1062 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0572 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0009 CAP-BRAKECAP-BRAKE
-
4302743027-1053 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1065 DIAPHRAGMDIAPHRAGM
-
4307843078-0060 RESERVOIRRESERVOIR
-
4309543095-0700 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
43095A43095-1448 HOSE-BRAKE, REAR CALIPER-HUHOSE-BRAKE, REAR CALIPER-HU
-
43095B43095-1452 HOSE-BRAKE, REAR M/C-HUHOSE-BRAKE, REAR M/C-HU
-
43095C43095-1453 HOSE-BRAKE, HU-REAR CALIPERHOSE-BRAKE, HU-REAR CALIPER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9204392043-0904 PINPIN
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215192151-1654 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9215492154-0385 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92154A92154-0774 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
92154B92154-1704 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
9217392173-0170 CLAMPCLAMP
-
92173A92173-0882 CLAMPCLAMP
-
92173B92173-1388 CLAMP, REAR BRAKE HOSECLAMP, REAR BRAKE HOSE
