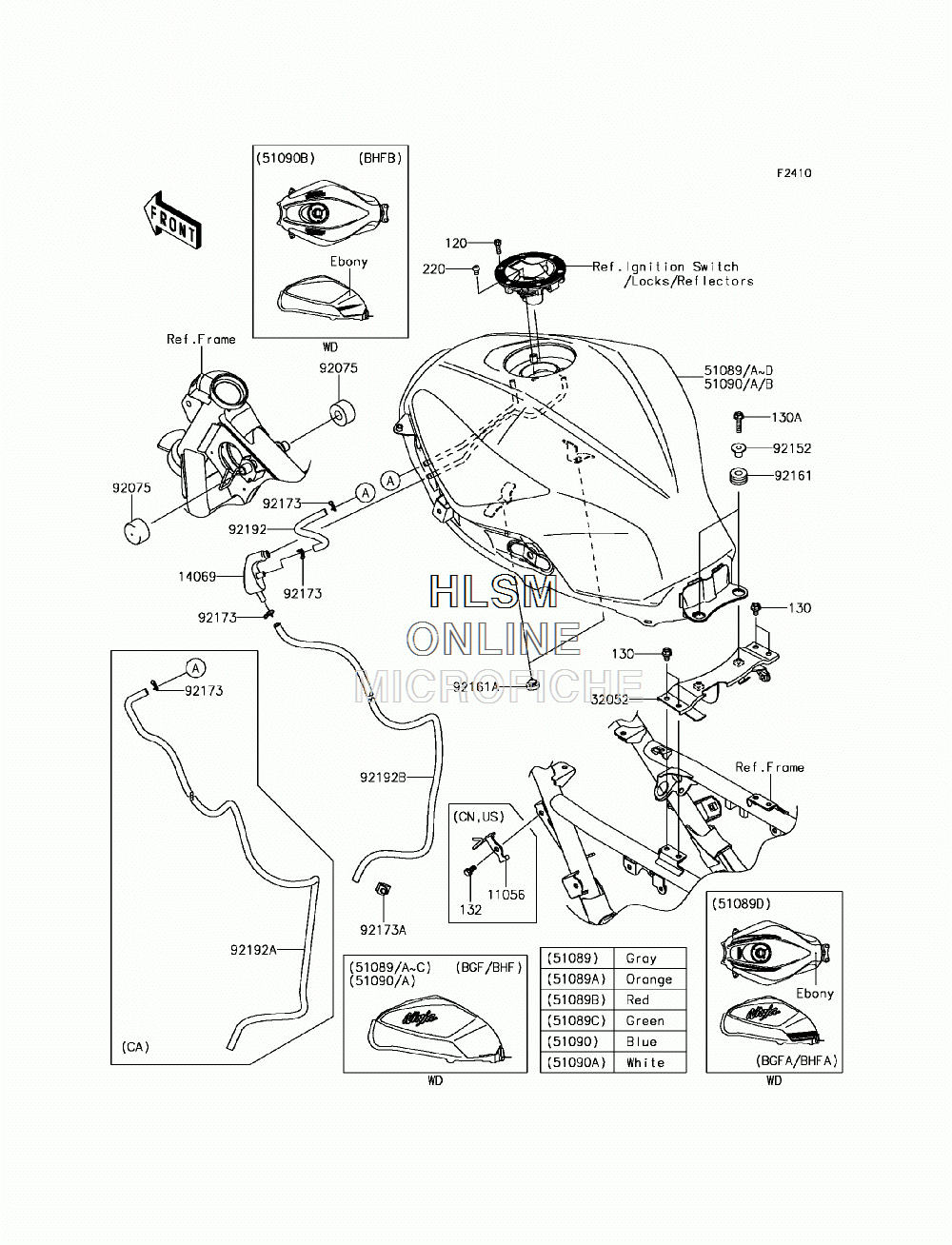

FUEL TANK для Kawasaki NINJA 300 ABS (EX300BHF) - 2017 года выпуска

  • №
    Артикул
    Название
  • 120
    120CB0516 BOLT-SOCKET, 5X16
    BOLT-SOCKET, 5X16
  • 130
    130BA0610 BOLT-FLANGED, 6X10
    BOLT-FLANGED, 6X10
  • 130A
    130BA0625 BOLT-FLANGED, 6X25
    BOLT-FLANGED, 6X25
  • 132
    132BA0612 BOLT-FLANGED-SMALL, 6X12 (EXCEPT CALIF.)
    BOLT-FLANGED-SMALL, 6X12 (EXCEPT CALIF.)
  • 220
    220AB0508 SCREW-PAN-CROS, 5X8
    SCREW-PAN-CROS, 5X8
  • 11056
    11056-1633 BRACKET, DRAIN TUBE (EXCEPT CALIF.)
    BRACKET, DRAIN TUBE (EXCEPT CALIF.)
  • 14069
    14069-0011 BREATHER (EXCEPT CALIF.)
    BREATHER (EXCEPT CALIF.)
  • 32052
    32052-0733 BRACKET-TANK
    BRACKET-TANK
  • 51090
    51090-5010-723 TANK-COMP-FUEL, (C.P.BLUE) (USA ONLY) (FOR 723)
    TANK-COMP-FUEL, (C.P.BLUE) (USA ONLY) (FOR 723)
  • 51090A
    51090-5012-54X TANK-COMP-FUEL, (P.B.WHITE) (FOR 54X)
    TANK-COMP-FUEL, (P.B.WHITE) (FOR 54X)
  • 92075
    92075-1115 DAMPER, FUEL TANK, FRONT
    DAMPER, FUEL TANK, FRONT
  • 92152
    92152-0332 COLLAR, 6.5X10X13.1
    COLLAR, 6.5X10X13.1
  • 92161
    92161-0927 DAMPER, 10X24X12
    DAMPER, 10X24X12
  • 92161A
    92161-1473 DAMPER
    DAMPER
  • 92173
    92173-0049 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92173
    92173-0049 CLAMP (EXCEPT CALIF.)
    CLAMP (EXCEPT CALIF.)
  • 92173A
    92173-0978 CLAMP
    CLAMP
  • 92192
    92192-0310 TUBE, FUEL (EXCEPT CALIF.)
    TUBE, FUEL (EXCEPT CALIF.)
  • 92192A
    92192-1096 TUBE, DRAIN (CALIF. ONLY)
    TUBE, DRAIN (CALIF. ONLY)
  • 92192B
    92192-1237 TUBE, 5X9X900 (EXCEPT CALIF.)
    TUBE, 5X9X900 (EXCEPT CALIF.)
