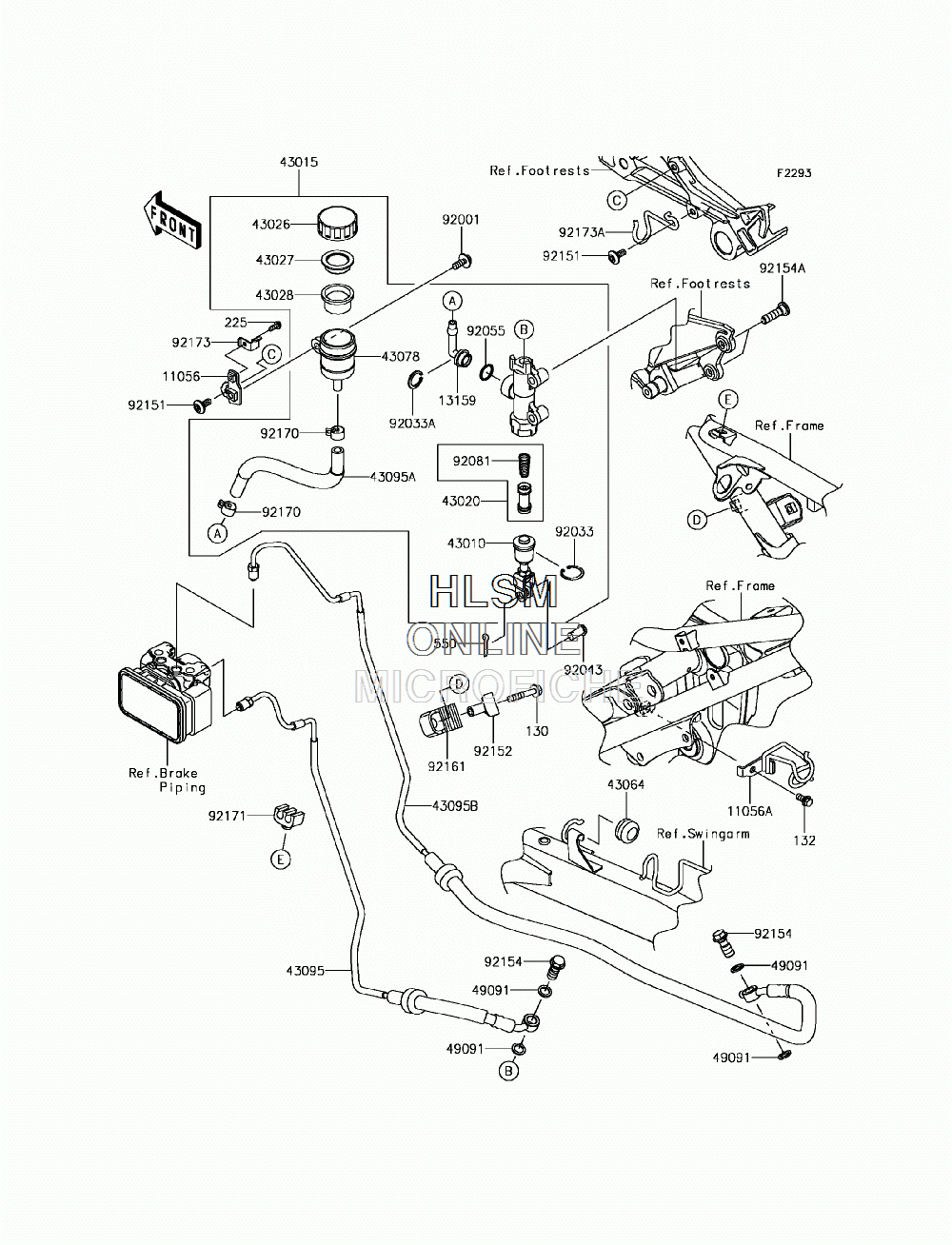

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA 300 ABS (EX300BHF) - 2017 года выпуска`
-
№АртикулНазвание
-
130130BB0635 BOLT-FLANGED, 6X35BOLT-FLANGED, 6X35
-
132132BB0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
225225AB0412 SCREW-PAN-WSP-CROS, 4X12SCREW-PAN-WSP-CROS, 4X12
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
1105611056-2306 BRACKETBRACKET
-
11056A11056-2311 BRACKET, BRAKE HOSEBRACKET, BRAKE HOSE
-
1315913159-1056 CONNECTORCONNECTOR
-
4301043010-0010 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0621 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-0023 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0009 CAP-BRAKECAP-BRAKE
-
4302743027-1053 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1065 DIAPHRAGMDIAPHRAGM
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4307843078-0040 RESERVOIRRESERVOIR
-
4309543095-0695 HOSE-BRAKE, REAR M/CYLINDERHOSE-BRAKE, REAR M/CYLINDER
-
43095A43095-0765 HOSE-BRAKEHOSE-BRAKE
-
43095B43095-0768 HOSE-BRAKE, REAR CALIPERHOSE-BRAKE, REAR CALIPER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200192001-1860 BOLT, W/P, 6X16BOLT, W/P, 6X16
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9204392043-0104 PIN, 8X17PIN, 8X17
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215192151-1654 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9215292152-0409 COLLARCOLLAR
-
9215492154-0226 BOLT, OIL, L=23BOLT, OIL, L=23
-
92154A92154-0843 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9216192161-0347 DAMPER, BRAKE PIPEDAMPER, BRAKE PIPE
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
9217192171-0818 CLAMPCLAMP
-
9217392173-0028 CLAMP, RESERVOIR TANK CAPCLAMP, RESERVOIR TANK CAP
-
92173A92173-0936 CLAMPCLAMP
