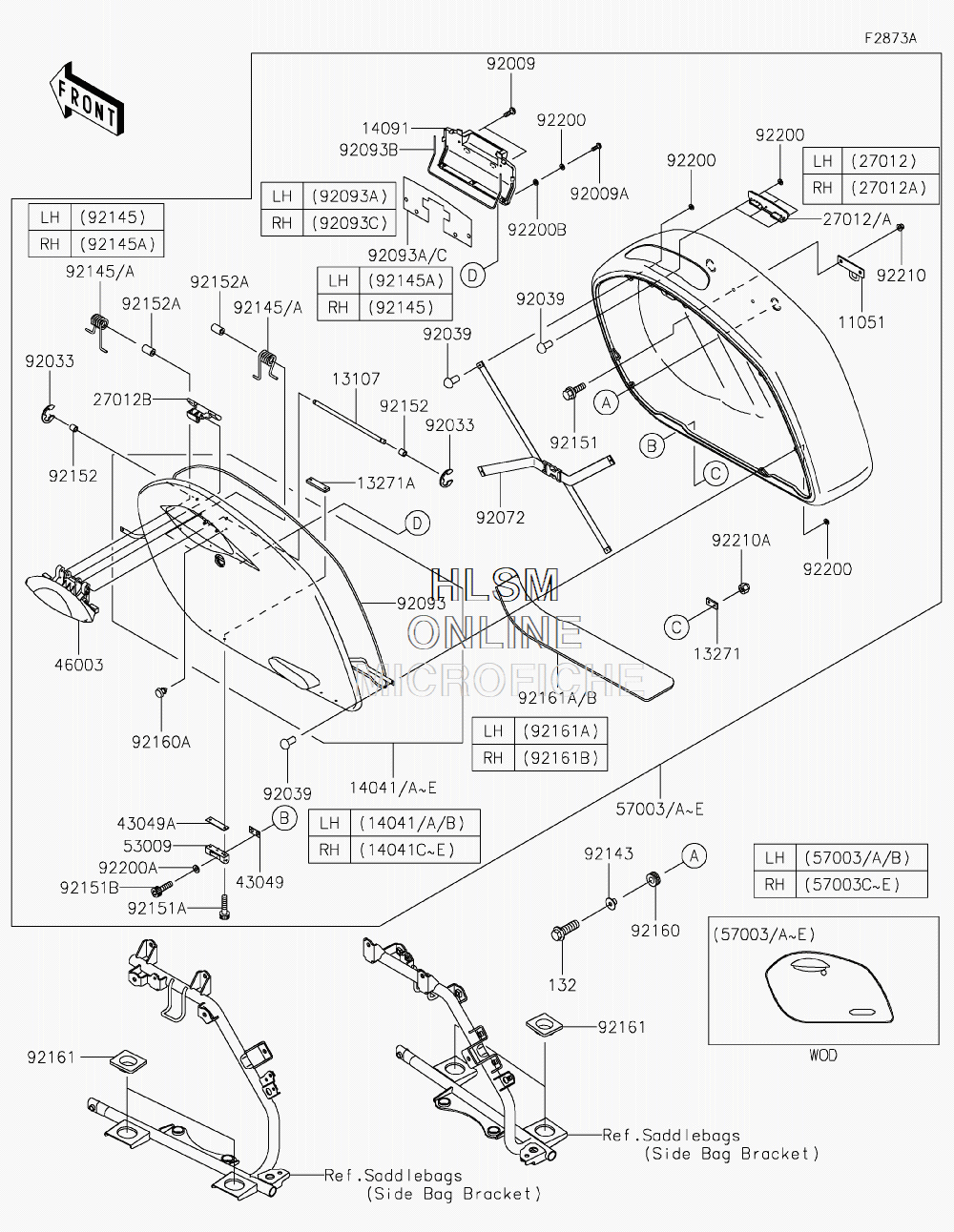

SADDLEBAGS (SIDE BAG) для Kawasaki VULCAN 1700 VAQUERO ABS (VN1700KGF) - 2016 года выпуска`
-
№АртикулНазвание
-
1105111051-1104 BRACKET, SIDE BAG BODYBRACKET, SIDE BAG BODY
-
1310713107-1403 SHAFTSHAFT
-
132132BB0825 BOLT-FLANGED-SMALL, 8X25BOLT-FLANGED-SMALL, 8X25
-
1327113271-1146 PLATEPLATE
-
13271A13271-1147 PLATEPLATE
-
14041A14041-0056-667 COVER-COMP, BAG, LEFT HAND, (P.C.WHITE)COVER-COMP, BAG, LEFT HAND, (P.C.WHITE)
-
14041D14041-0057-667 COVER-COMP, BAG, RIGHT HAND, (P.C.WHITE)COVER-COMP, BAG, RIGHT HAND, (P.C.WHITE)
-
1409114091-1069 COVER, LID MAINTENANCECOVER, LID MAINTENANCE
-
2701227012-1571 HOOK, LOCK PLATE, LEFT HANDHOOK, LOCK PLATE, LEFT HAND
-
27012A27012-1572 HOOK, LOCK PLATE, RIGHT HANDHOOK, LOCK PLATE, RIGHT HAND
-
27012B27012-1575 HOOK, HANDLEHOOK, HANDLE
-
4304943049-1084 PACKINGPACKING
-
43049A43049-1086 PACKINGPACKING
-
4600346003-1505 HANDLE, SIDE BAGHANDLE, SIDE BAG
-
5300953009-1104 HINGE, SIDE BAGHINGE, SIDE BAG
-
57003A57003-0060-667 BAG-ASSY, LEFT HAND, (P.C.WHITE)BAG-ASSY, LEFT HAND, (P.C.WHITE)
-
57003D57003-0061-667 BAG-ASSY, RIGHT HAND, (P.C.WHITE)BAG-ASSY, RIGHT HAND, (P.C.WHITE)
-
9200992009-1870 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
-
92009A92009-1871 SCREW, TAPPING, 3X8SCREW, TAPPING, 3X8
-
9203392033-1300 RING-SNAPRING-SNAP
-
9203992039-1236 RIVETRIVET
-
9207292072-1368 BANDBAND
-
9209392093-1486 SEAL, SIDE BAG COVERSEAL, SIDE BAG COVER
-
92093A92093-1487 SEAL, SIDE BAG, LEFT HANDSEAL, SIDE BAG, LEFT HAND
-
92093B92093-1488 SEALSEAL
-
92093C92093-1489 SEAL, SIDE BAG, RIGHT HANDSEAL, SIDE BAG, RIGHT HAND
-
9214392143-1450 COLLARCOLLAR
-
9214592145-1175 SPRINGSPRING
-
92145A92145-1200 SPRINGSPRING
-
9215192151-1435 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92151A92151-1436 BOLT, SOCKET, 4X22BOLT, SOCKET, 4X22
-
92151B92151-1437 BOLT, SOCKET, 4X18BOLT, SOCKET, 4X18
-
9215292152-1121 COLLARCOLLAR
-
92152A92152-1122 COLLARCOLLAR
-
9216092160-1012 DAMPERDAMPER
-
92160A92160-1976 DAMPERDAMPER
-
9216192161-0895 DAMPERDAMPER
-
92161A92161-1171 DAMPER, SIDE BAG, LEFT HANDDAMPER, SIDE BAG, LEFT HAND
-
92161B92161-1176 DAMPER, SIDE BAG, RIGHT HANDDAMPER, SIDE BAG, RIGHT HAND
-
9220092200-1442 WASHER, 3MMWASHER, 3MM
-
92200A92200-1443 WASHER, 4MMWASHER, 4MM
-
92200B92200-1444 WASHER, 3MMWASHER, 3MM
-
9221092210-1167 NUT, CAP, 6MMNUT, CAP, 6MM
-
92210A92210-1168 NUT, CAP, 4MMNUT, CAP, 4MM
