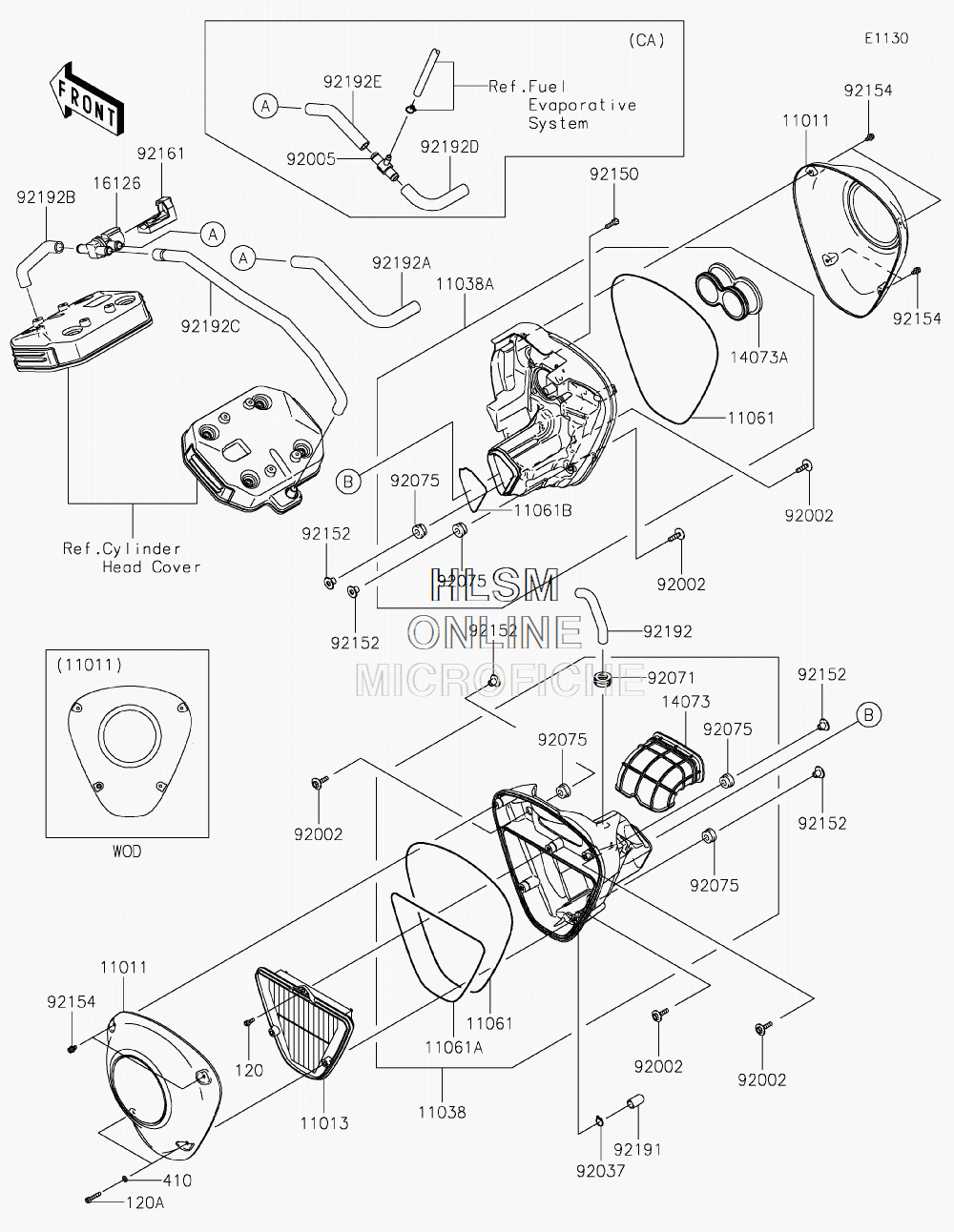

AIR CLEANER для Kawasaki VULCAN 1700 VAQUERO ABS (VN1700KGF) - 2016 года выпуска

  • №
    Артикул
    Название
  • 11011
    11011-0172 CASE-AIR FILTER, (F.S.BLACK)
    CASE-AIR FILTER, (F.S.BLACK)
  • 11013
    11013-0031 ELEMENT-AIR FILTER
    ELEMENT-AIR FILTER
  • 11038
    11038-0022 CASE-ASSY-AIR FILTER, LEFT HAND
    CASE-ASSY-AIR FILTER, LEFT HAND
  • 11038A
    11038-0023 CASE-ASSY-AIR FILTER, RIGHT HAND
    CASE-ASSY-AIR FILTER, RIGHT HAND
  • 11061
    11061-0346 GASKET, 3X812
    GASKET, 3X812
  • 11061A
    11061-0347 GASKET, 3X630
    GASKET, 3X630
  • 11061B
    11061-0367 GASKET, 3X222
    GASKET, 3X222
  • 120
    120CA0512 BOLT-SOCKET, 5X12
    BOLT-SOCKET, 5X12
  • 120A
    120R0525 BOLT-SOCKET, 5X25
    BOLT-SOCKET, 5X25
  • 14073
    14073-0202 DUCT, INTAKE
    DUCT, INTAKE
  • 14073A
    14073-0203 DUCT, THROBO. FUNNEL
    DUCT, THROBO. FUNNEL
  • 16126
    16126-1437 VALVE, AIR SWITCHING
    VALVE, AIR SWITCHING
  • 410
    410S0500 W-PLAIN-S, 5MM
    W-PLAIN-S, 5MM
  • 92002
    92002-1135 BOLT, 6X25
    BOLT, 6X25
  • 92005
    92005-0054 FITTING (CALIF. ONLY)
    FITTING (CALIF. ONLY)
  • 92037
    92037-1900 CLAMP, 14.5MM
    CLAMP, 14.5MM
  • 92071
    92071-1249 GROMMET, AIR SUCTION VALVE
    GROMMET, AIR SUCTION VALVE
  • 92075
    92075-1123 DAMPER, RUBBER
    DAMPER, RUBBER
  • 92150
    92150-1645 BOLT, 6X18
    BOLT, 6X18
  • 92152
    92152-0694 COLLAR, 6.3X10X12
    COLLAR, 6.3X10X12
  • 92154
    92154-0131 BOLT, SOCKET, 5X10
    BOLT, SOCKET, 5X10
  • 92161
    92161-0309 DAMPER
    DAMPER
  • 92191
    92191-1704 TUBE
    TUBE
  • 92192
    92192-0650 TUBE, BREATHER
    TUBE, BREATHER
  • 92192A
    92192-0651 TUBE, A/C-ASWV (EXCEPT CALIF.)
    TUBE, A/C-ASWV (EXCEPT CALIF.)
  • 92192B
    92192-0652 TUBE, FRONT HEAD-ASWV
    TUBE, FRONT HEAD-ASWV
  • 92192C
    92192-0653 TUBE, REAR HEAD-ASWV
    TUBE, REAR HEAD-ASWV
  • 92192D
    92192-0654 TUBE, ASWV-FITTING (CALIF. ONLY)
    TUBE, ASWV-FITTING (CALIF. ONLY)
  • 92192E
    92192-0655 TUBE, FITTING-A/C (CALIF. ONLY)
    TUBE, FITTING-A/C (CALIF. ONLY)
