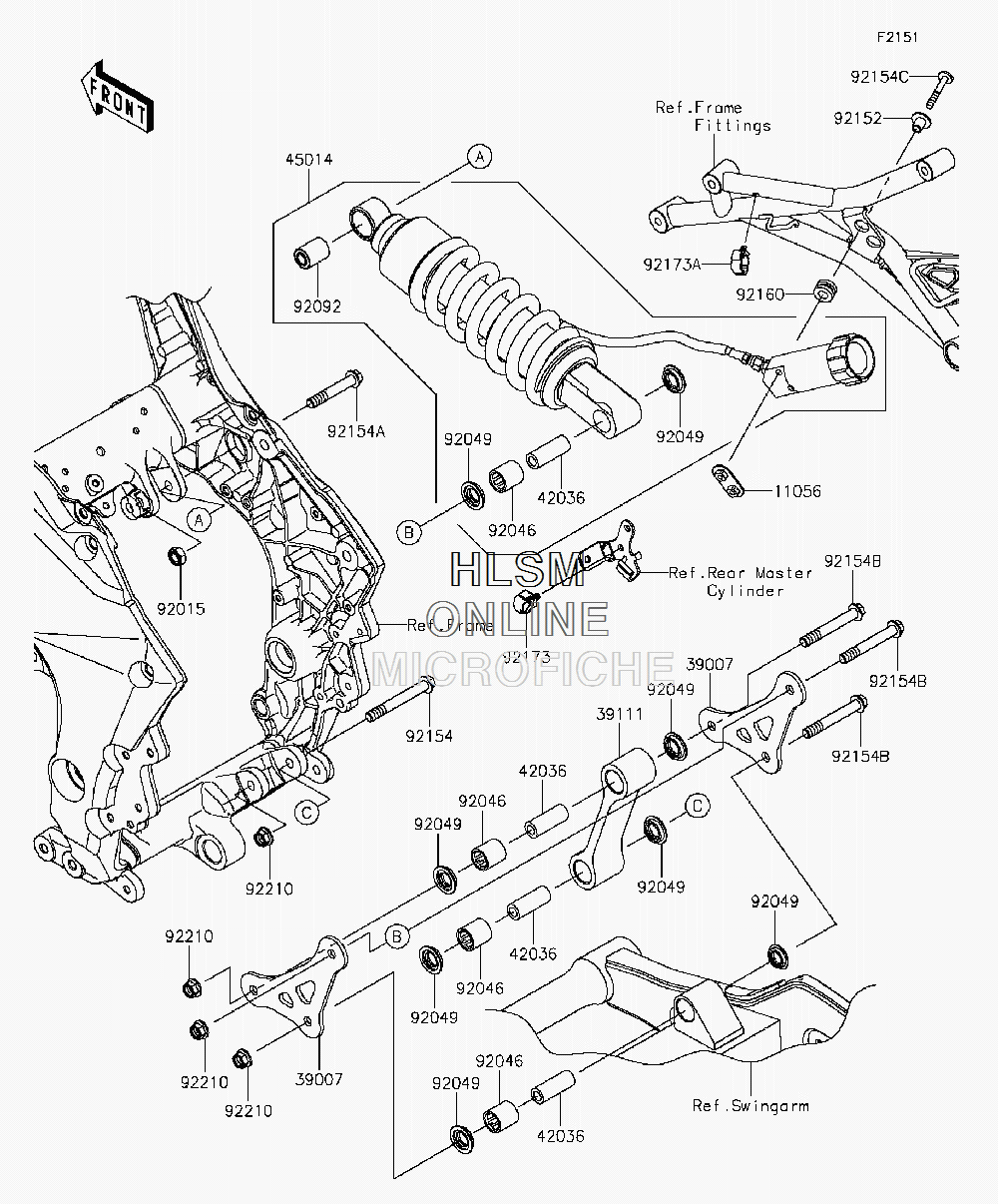

SUSPENSION - REAR W/ SHOCK ABSORBER для Kawasaki VERSYS 1000 LT (KLZ1000BGF) - 2016 года выпуска

  • №
    Артикул
    Название
  • 11056
    11056-1914 BRACKET
    BRACKET
  • 39007
    39007-0356-18R ARM-SUSP, (F.S.BLACK) (FOR ALL COLORS)
    ARM-SUSP, (F.S.BLACK) (FOR ALL COLORS)
  • 39111
    39111-0311 ROD-TIE
    ROD-TIE
  • 42036
    42036-1342 SLEEVE, 10.1X17X44.5
    SLEEVE, 10.1X17X44.5
  • 45014
    45014-0474-37Y SHOCKABSORBER, (P.SILVER) (FOR ALL COLORS)
    SHOCKABSORBER, (P.SILVER) (FOR ALL COLORS)
  • 92015
    92015-1189 NUT, LOCK, 10MM, (BLACK )
    NUT, LOCK, 10MM, (BLACK )
  • 92046
    92046-1273 BEARING-NEEDLE, SFYZM172425
    BEARING-NEEDLE, SFYZM172425
  • 92049
    92049-1223 SEAL-OIL, MHA17245.7F
    SEAL-OIL, MHA17245.7F
  • 92092
    92092-1058 BUSHING-RUBBER
    BUSHING-RUBBER
  • 92152
    92152-0332 COLLAR, 6.5X10X13.1
    COLLAR, 6.5X10X13.1
  • 92154
    92154-0262 BOLT, FLANGED, 10X77
    BOLT, FLANGED, 10X77
  • 92154A
    92154-0263 BOLT, FLANGED, 10X60
    BOLT, FLANGED, 10X60
  • 92154B
    92154-0890 BOLT
    BOLT
  • 92154C
    92154-1006 BOLT, SOCKET, 6X42
    BOLT, SOCKET, 6X42
  • 92160
    92160-1167 DAMPER, 10X20X12
    DAMPER, 10X20X12
  • 92173
    92173-0736 CLAMP, 12MM DIA.
    CLAMP, 12MM DIA.
  • 92173A
    92173-0868 CLAMP, HOLDER CLIP
    CLAMP, HOLDER CLIP
  • 92210
    92210-1139 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
