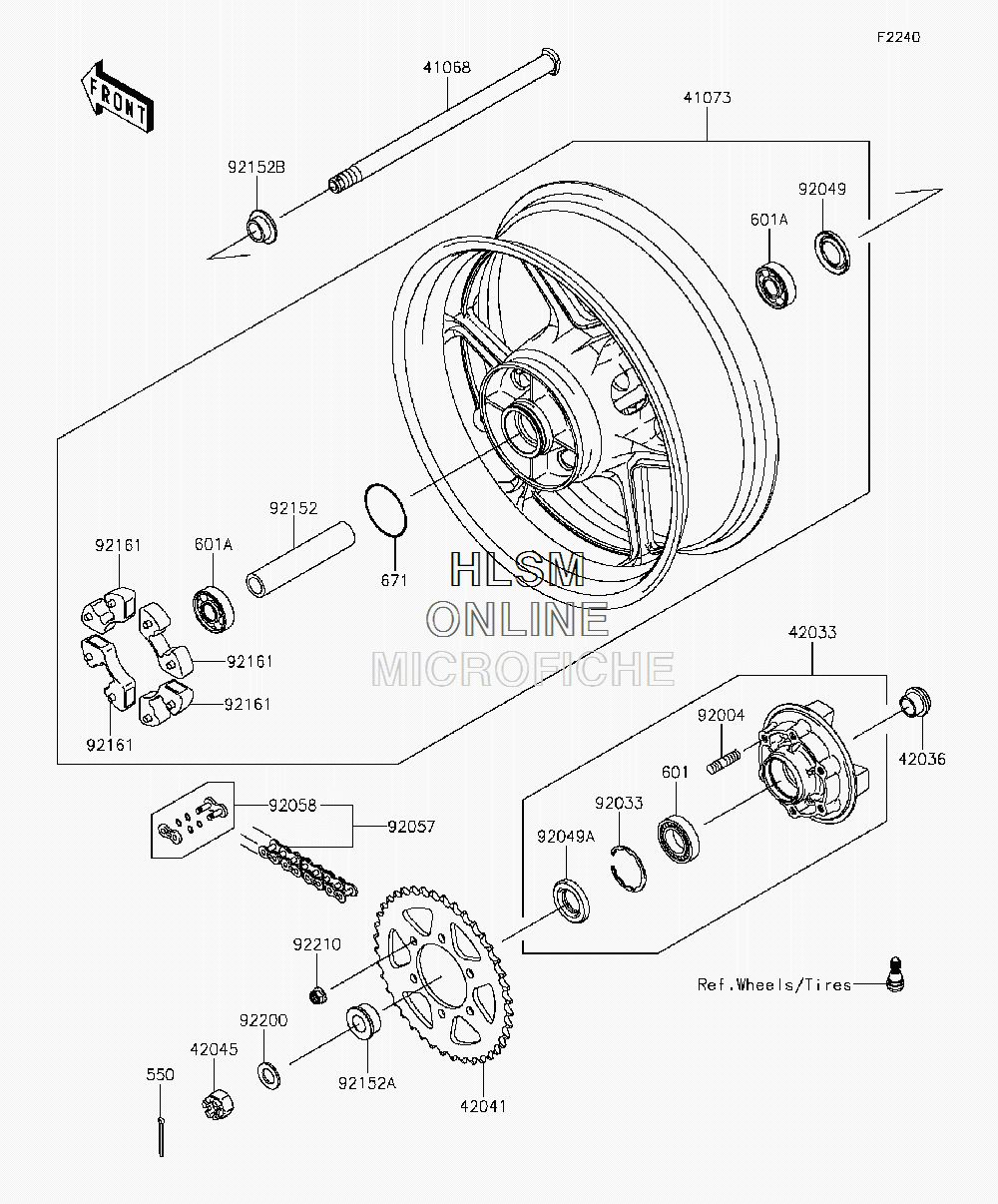

REAR HUB для Kawasaki VERSYS 1000 LT (KLZ1000BGF) - 2016 года выпуска`
-
№АртикулНазвание
-
4106841068-0596 AXLE, REAR, L344AXLE, REAR, L344
-
4107341073-0572-18F WHEEL-ASSY, REAR, (G.BLACK) (FOR ALL COLORS)WHEEL-ASSY, REAR, (G.BLACK) (FOR ALL COLORS)
-
4203342033-0028 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-1251 SLEEVE, REAR HUB, L=23SLEEVE, REAR HUB, L=23
-
4204142041-1467 SPROCKET-HUB, 43TSPROCKET-HUB, 43T
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
550550AA4040 PIN-COTTER, 4.0X40PIN-COTTER, 4.0X40
-
601601B6205UU BEARING-BALLBEARING-BALL
-
601A601B6304UU BEARING-BALL, #6304UUC3BEARING-BALL, #6304UUC3
-
671671B2560 O RING, 60MMO RING, 60MM
-
9200492004-0028 STUD, 10X19STUD, 10X19
-
9203392033-1043 RING-SNAP, 52MMRING-SNAP, 52MM
-
9204992049-0723 SEAL-OIL, 27X52X5SEAL-OIL, 27X52X5
-
92049A92049-1287 SEAL-OILSEAL-OIL
-
9205792057-0630 CHAIN, DRIVE, EK525RMX2, 116LCHAIN, DRIVE, EK525RMX2, 116L
-
9205892058-0032 JOINT-CHAINJOINT-CHAIN
-
9215292152-0088 COLLAR, REAR HUB, L=144.5COLLAR, REAR HUB, L=144.5
-
92152A92152-0118 COLLAR, REAR AXLE, LEFT HAND, L=18COLLAR, REAR AXLE, LEFT HAND, L=18
-
92152B92152-0876 COLLAR, REAR AXLE, RIGHT HAND, 20X28X14.5COLLAR, REAR AXLE, RIGHT HAND, 20X28X14.5
-
9216192161-0342 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-1489 WASHER, 19X32X2.6WASHER, 19X32X2.6
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
