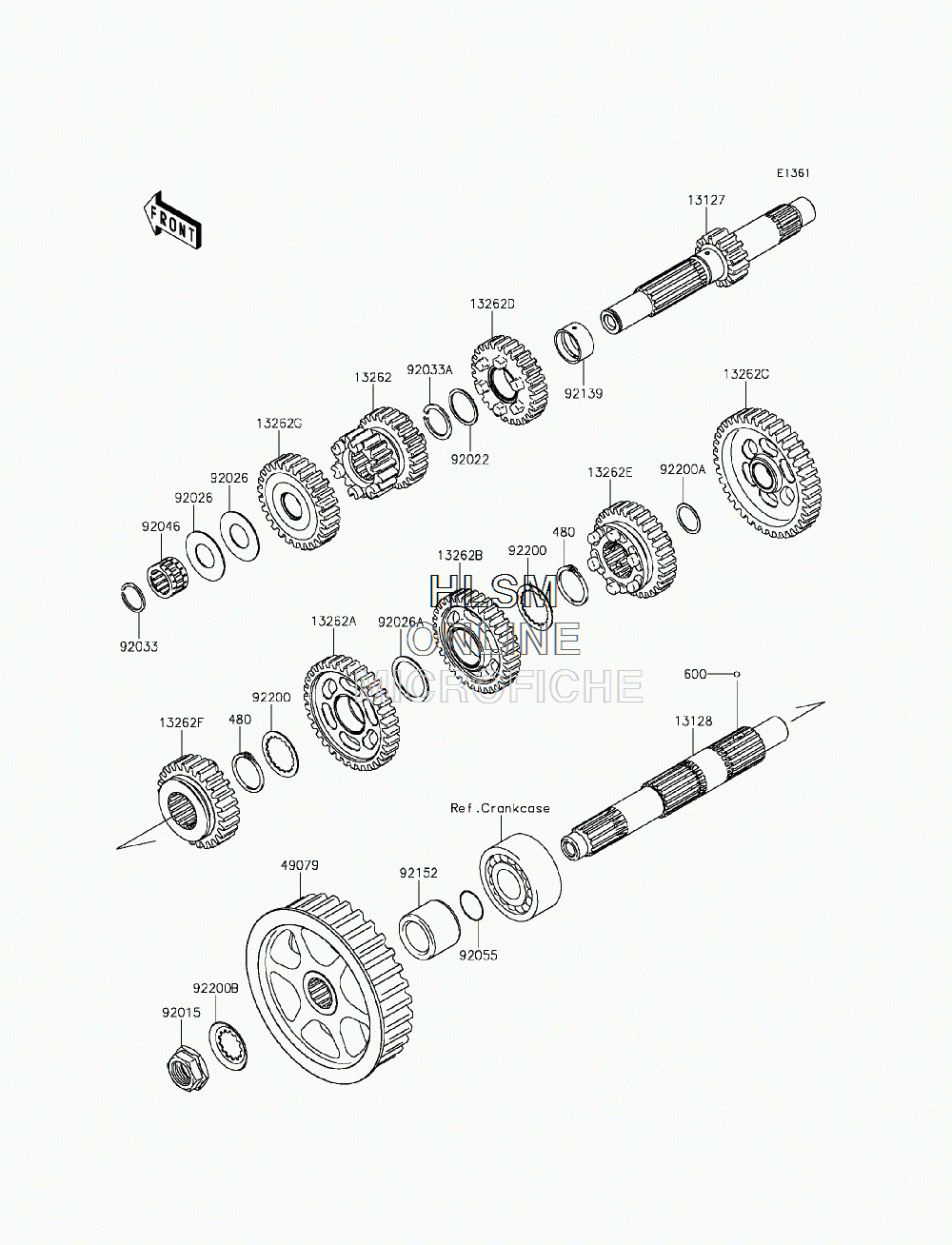

TRANSMISSION для Kawasaki VULCAN 900 CLASSIC (VN900BFF) - 2015 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2900 CIRCLIP
    CIRCLIP
  • 600
    600A0500 BALL-STEEL,5/32
    BALL-STEEL,5/32
  • 13127
    13127-0038 SHAFT-TRANSMISSION INPUT,14T
    SHAFT-TRANSMISSION INPUT,14T
  • 13128
    13128-0025 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13262
    13262-0315 GEAR,INPUT 2ND & 3RD,18T & 25T
    GEAR,INPUT 2ND & 3RD,18T & 25T
  • 13262A
    13262-0319 GEAR,OUTPUT 2ND,34T
    GEAR,OUTPUT 2ND,34T
  • 13262B
    13262-0320 GEAR,OUTPUT 3RD,34T
    GEAR,OUTPUT 3RD,34T
  • 13262C
    13262-0419 GEAR,OUTPUT LOW,39T
    GEAR,OUTPUT LOW,39T
  • 13262D
    13262-0496 GEAR,INPUT 4TH,28T
    GEAR,INPUT 4TH,28T
  • 13262E
    13262-0497 GEAR,OUTPUT 4TH,31T
    GEAR,OUTPUT 4TH,31T
  • 13262F
    13262-0701 GEAR,OUTPUT 5TH,26T
    GEAR,OUTPUT 5TH,26T
  • 13262G
    13262-0703 GEAR,INPUT 5TH,27T
    GEAR,INPUT 5TH,27T
  • 49079
    49079-0016 PULLEY-BELT
    PULLEY-BELT
  • 92015
    92015-1963 NUT,20MM
    NUT,20MM
  • 92022
    92022-161 WASHER,25.3X30X1
    WASHER,25.3X30X1
  • 92026
    92026-0102 SPACER,20X51X1
    SPACER,20X51X1
  • 92026A
    92026-079 SPACER,30X38X1.0
    SPACER,30X38X1.0
  • 92033
    92033-015 RING-SNAP,20MM
    RING-SNAP,20MM
  • 92033A
    92033-026 RING-SNAP,24MM
    RING-SNAP,24MM
  • 92046
    92046-1303 BEARING-NEEDLE,PK20X27X17X3
    BEARING-NEEDLE,PK20X27X17X3
  • 92055
    92055-035 RING-O
    RING-O
  • 92139
    92139-0186 BUSHING,4TH GEAR
    BUSHING,4TH GEAR
  • 92152
    92152-0335 COLLAR
    COLLAR
  • 92200
    92200-0222 WASHER,30.3X38X1.0
    WASHER,30.3X38X1.0
  • 92200A
    92200-0291 WASHER,20.2X25.0X0.5
    WASHER,20.2X25.0X0.5
  • 92200B
    92200-0863 WASHER
    WASHER
