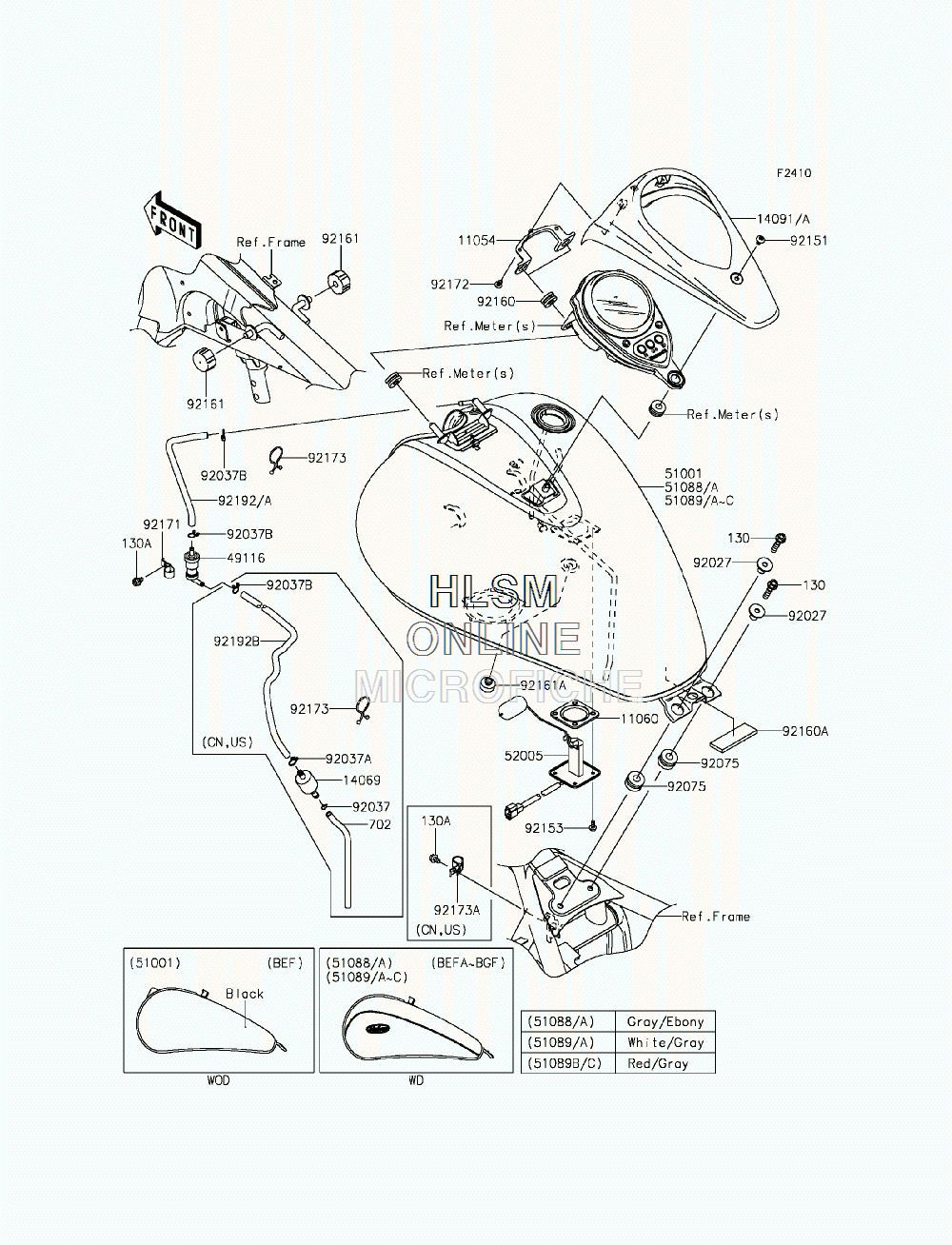

FUEL TANK для Kawasaki VULCAN 900 CLASSIC (VN900BFF) - 2015 года выпуска

  • №
    Артикул
    Название
  • 11054
    11054-0034 BRACKET, METER, FRONT
    BRACKET, METER, FRONT
  • 11060
    11060-1952 GASKET, FUEL GAUGE
    GASKET, FUEL GAUGE
  • 14069
    14069-1004 BREATHER, FUEL TANK (EXCEPT CALIF.)
    BREATHER, FUEL TANK (EXCEPT CALIF.)
  • 14091A
    14091-1730-H8 COVER, METER, EBONY
    COVER, METER, EBONY
  • 49116
    49116-0014 VALVE-ASSY, CHECK
    VALVE-ASSY, CHECK
  • 51089
    51089-5092-51M TANK-COMP-FUEL, WHITE/GRAY (EXCEPT CALIF.)
    TANK-COMP-FUEL, WHITE/GRAY (EXCEPT CALIF.)
  • 51089A
    51089-5109-51M TANK-COMP-FUEL, WHITE/GRAY (CALIF. ONLY)
    TANK-COMP-FUEL, WHITE/GRAY (CALIF. ONLY)
  • 52005
    52005-0718 GAUGE, FUEL
    GAUGE, FUEL
  • 92027
    92027-1780 COLLAR, L=19.3
    COLLAR, L=19.3
  • 92037
    92037-010 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92037A
    92037-1104 CLAMP, HOSE (EXCEPT CALIF.)
    CLAMP, HOSE (EXCEPT CALIF.)
  • 92037B
    92037-147 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037B
    92037-147 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92075
    92075-1736 DAMPER
    DAMPER
  • 92151
    92151-1940 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92153
    92153-1421 BOLT, FLANGED, 5X12
    BOLT, FLANGED, 5X12
  • 92160
    92160-1162 DAMPER
    DAMPER
  • 92160A
    92160-1323 DAMPER
    DAMPER
  • 92161
    92161-0293 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92161A
    92161-1065 DAMPER, SEAT
    DAMPER, SEAT
  • 130
    130BA0830 BOLT-FLANGED, 8X30
    BOLT-FLANGED, 8X30
  • 130A
    130BB0610 BOLT-FLANGED, 6X10 (CALIF. ONLY)
    BOLT-FLANGED, 6X10 (CALIF. ONLY)
  • 130A
    130BB0610 BOLT-FLANGED, 6X10 (EXCEPT CALIF.)
    BOLT-FLANGED, 6X10 (EXCEPT CALIF.)
  • 702
    702A06200 TUBE-RUBBER, 6X200 (EXCEPT CALIF.)
    TUBE-RUBBER, 6X200 (EXCEPT CALIF.)
  • 92171
    92171-0595 CLAMP
    CLAMP
  • 92172
    92172-0006 SCREW, TAPPING, 5X14
    SCREW, TAPPING, 5X14
  • 92173
    92173-0848 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92173
    92173-0848 CLAMP (EXCEPT CALIF.)
    CLAMP (EXCEPT CALIF.)
  • 92173A
    92173-0925 CLAMP (EXCEPT CALIF.)
    CLAMP (EXCEPT CALIF.)
  • 92192
    92192-1107 TUBE, BREATHER, L=220 (EXCEPT CALIF.)
    TUBE, BREATHER, L=220 (EXCEPT CALIF.)
  • 92192A
    92192-1108 TUBE, BREATHER, BLUE, L=220 (CALIF. ONLY)
    TUBE, BREATHER, BLUE, L=220 (CALIF. ONLY)
  • 92192B
    92192-1129 TUBE, 5X10X500/350 (EXCEPT CALIF.)
    TUBE, 5X10X500/350 (EXCEPT CALIF.)
