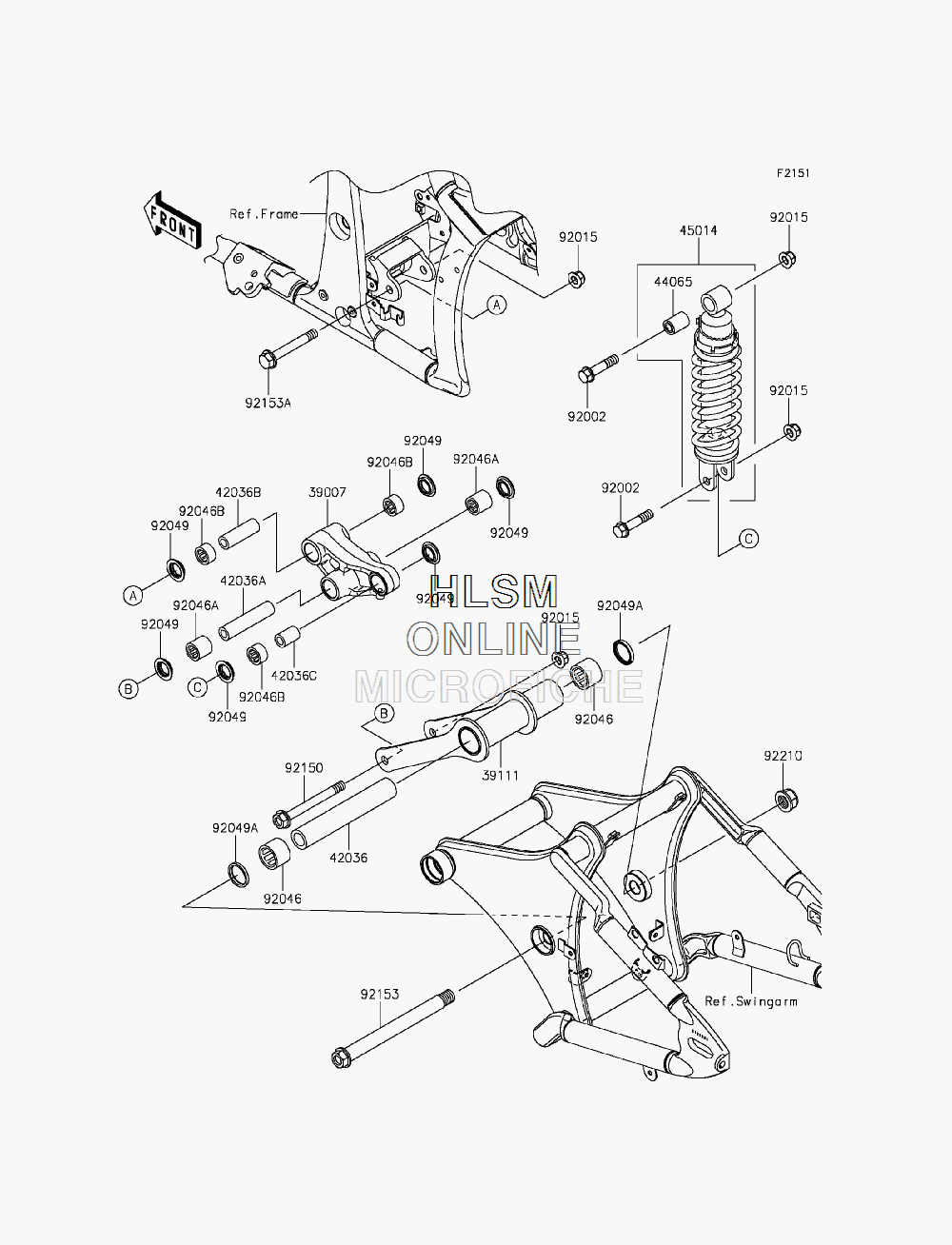

SUSPENSION - REAR W/ SHOCK ABSORBER для Kawasaki VULCAN 900 CLASSIC LT (VN900DFF) - 2015 года выпуска
-
№АртикулНазвание
-
3900739007-0160 ARM-SUSP,UNI TRAKARM-SUSP,UNI TRAK
-
3911139111-0026 ROD-TIE,SUSPENSIONROD-TIE,SUSPENSION
-
4203642036-0032 SLEEVE,20.1X30X171SLEEVE,20.1X30X171
-
42036A42036-0040 SLEEVE,12.1X20X92SLEEVE,12.1X20X92
-
42036B42036-1078 SLEEVE,ARM, FRONTSLEEVE,ARM, FRONT
-
42036C42036-1234 SLEEVE,12.1X20X30SLEEVE,12.1X20X30
-
4406544065-1017 BUSHING,SHOCK ABSORBERBUSHING,SHOCK ABSORBER
-
4501445014-0271 SHOCK ABSORBERSHOCK ABSORBER
-
9200292002-1130 BOLT,12X55BOLT,12X55
-
9201592015-1433 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
-
9204692046-0019 BEARING-NEEDLE,30BM3726BEARING-NEEDLE,30BM3726
-
92046A92046-1110 BEARING-NEEDLE,BM202726BEARING-NEEDLE,BM202726
-
92046B92046-1112 BEARING-NEEDLE,BM202715BEARING-NEEDLE,BM202715
-
9204992049-1109 SEAL-OIL,ARMSEAL-OIL,ARM
-
92049A92049-1205 SEAL-OIL,BJN 30374SEAL-OIL,BJN 30374
-
9215092150-1895 BOLT,FLANGED,12X117BOLT,FLANGED,12X117
-
9215392153-1392 BOLT,FLANGED,18X214BOLT,FLANGED,18X214
-
92153A92153-1403 BOLT,FLANGED,12X90BOLT,FLANGED,12X90
-
9221092210-0267 NUT,LOCK,18MMNUT,LOCK,18MM
