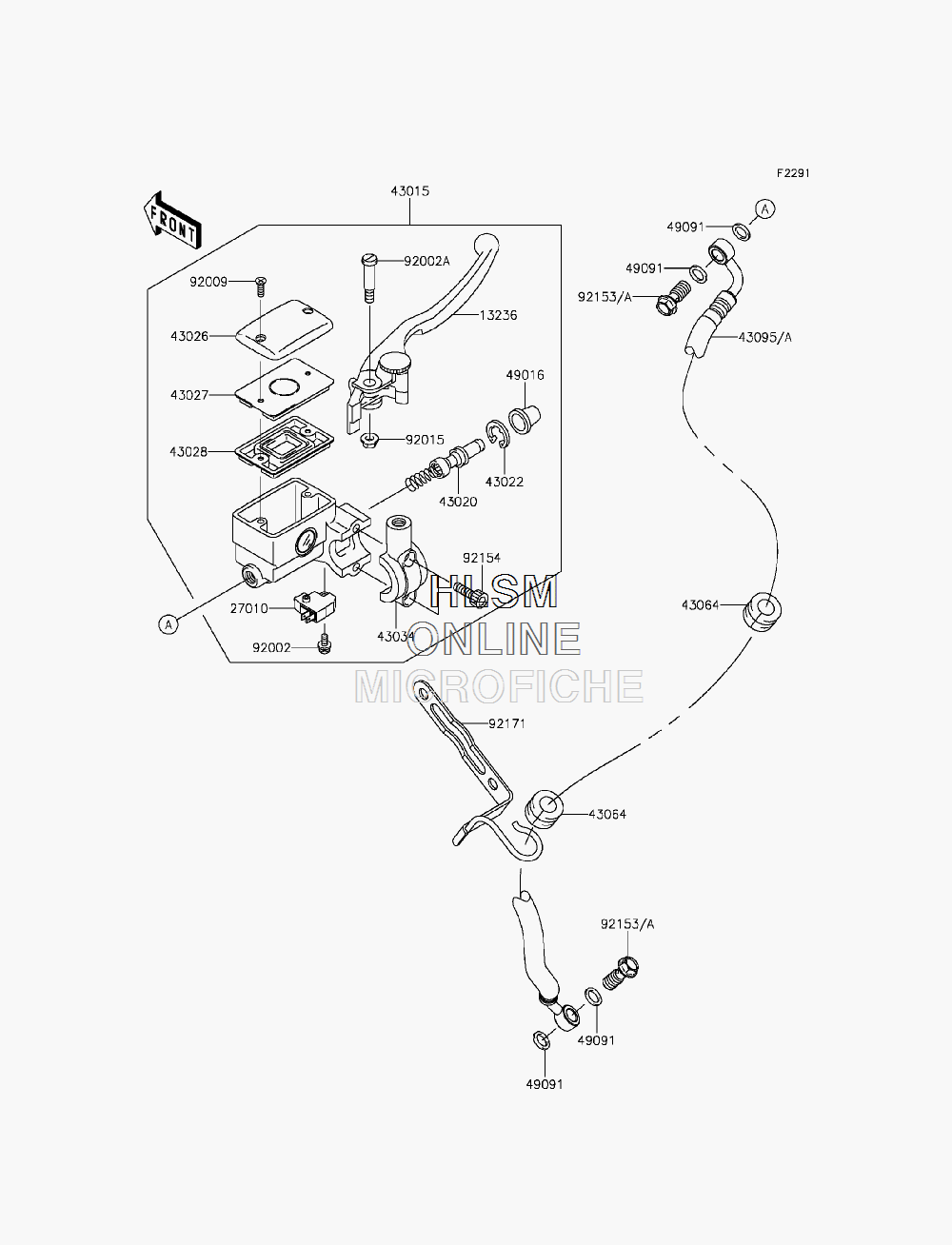

BRAKE - MASTER CYLINDER - FRONT для Kawasaki VULCAN 900 CLASSIC LT (VN900DFF) - 2015 года выпуска`
-
№АртикулНазвание
-
1323613236-1315 LEVER-COMP, FRONT BRAKELEVER-COMP, FRONT BRAKE
-
2701027010-0025 SWITCH,BRAKESWITCH,BRAKE
-
4301543015-0169 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1098 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE,PISTONSTOPPER-BRAKE,PISTON
-
4302643026-0025 CAP-BRAKECAP-BRAKE
-
4302743027-1059 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1058 DIAPHRAGM,MASTER CYLINDERDIAPHRAGM,MASTER CYLINDER
-
4303443034-0071 HOLDER-BRAKEHOLDER-BRAKE
-
4306443064-006 GROMMET,HOSE CLAMPGROMMET,HOSE CLAMP
-
43095A43095-0681 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4901649016-1044 COVER-SEAL,MASTER CYLINDERCOVER-SEAL,MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9200292002-1323 BOLT,SCREW,4X12BOLT,SCREW,4X12
-
92002A92002-1561 BOLT, LEVER SETBOLT, LEVER SET
-
9200992009-1458 SCREW,4MMSCREW,4MM
-
9201592015-1528 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
92153A92153-1419 BOLT,OIL,L=23BOLT,OIL,L=23
-
9215492154-0541 BOLT,SOCKET,6MMBOLT,SOCKET,6MM
-
9217192171-0770 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
