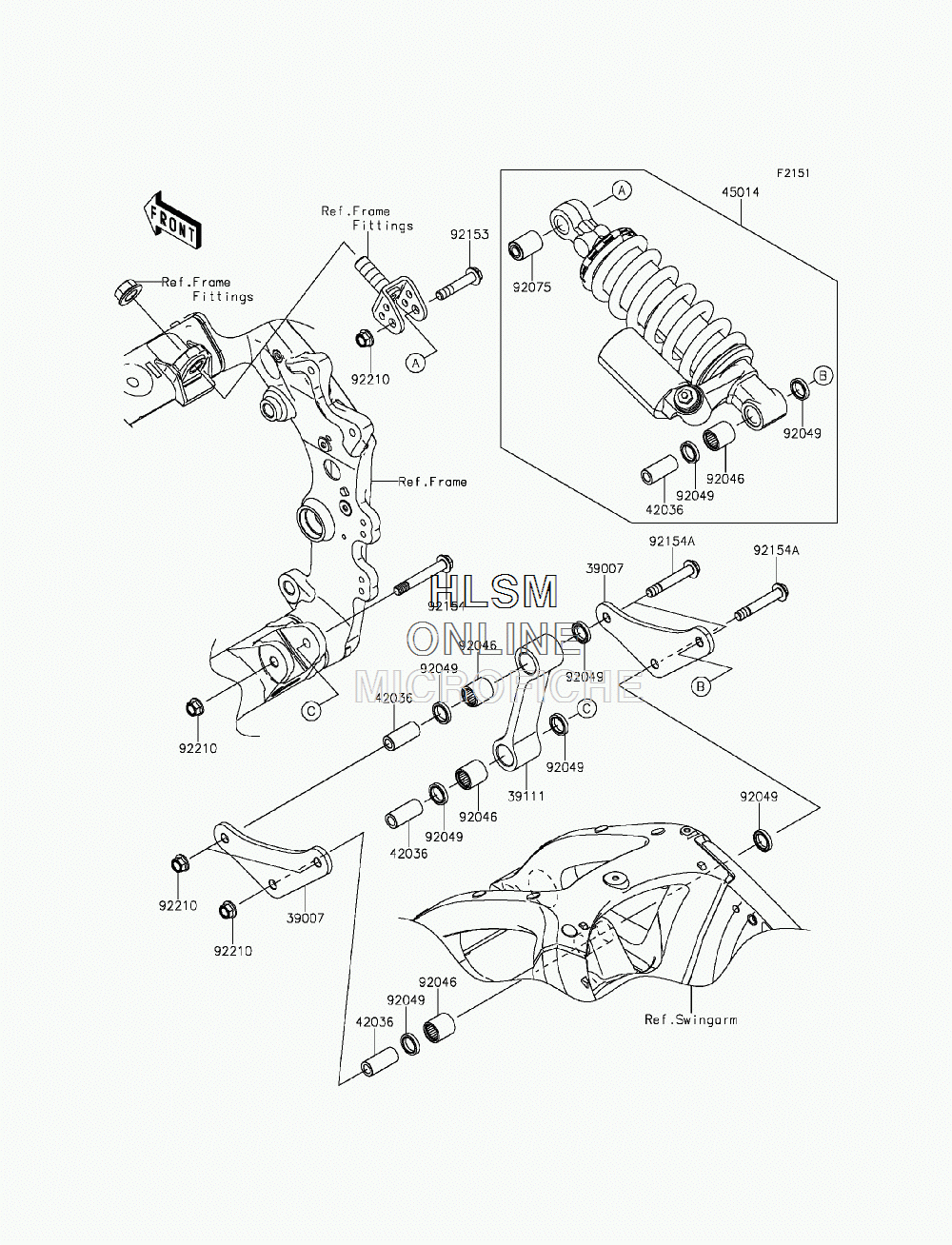

SUSPENSION - REAR W/ SHOCK ABSORBER для Kawasaki NINJA ZX-10R (ZX1000JFF) - 2015 года выпуска
-
№АртикулНазвание
-
3900739007-0167 ARM-SUSP,HORIZONTAL BACK-LINKARM-SUSP,HORIZONTAL BACK-LINK
-
3911139111-0079 ROD-TIE,SUSPENSIONROD-TIE,SUSPENSION
-
4203642036-0075 SLEEVE,10.1X17X39SLEEVE,10.1X17X39
-
4501445014-0311-37X SHOCK ABSORBER,SPG (GREEN)+BODY (BLACK)SHOCK ABSORBER,SPG (GREEN)+BODY (BLACK)
-
9204692046-1273 BEARING-NEEDLE,SFYZM172425BEARING-NEEDLE,SFYZM172425
-
9204992049-0158 SEAL-OIL,SD0 17 24 5 NSSEAL-OIL,SD0 17 24 5 NS
-
9207592075-1426 DAMPER,SHOCK ABSORBERDAMPER,SHOCK ABSORBER
-
9215392153-1545 BOLT,FLANGED,10X51BOLT,FLANGED,10X51
-
9215492154-0384 BOLT,FLANGED,10X71BOLT,FLANGED,10X71
-
92154A92154-0398 BOLT,FLANGED,10X63BOLT,FLANGED,10X63
-
9221092210-1139 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
