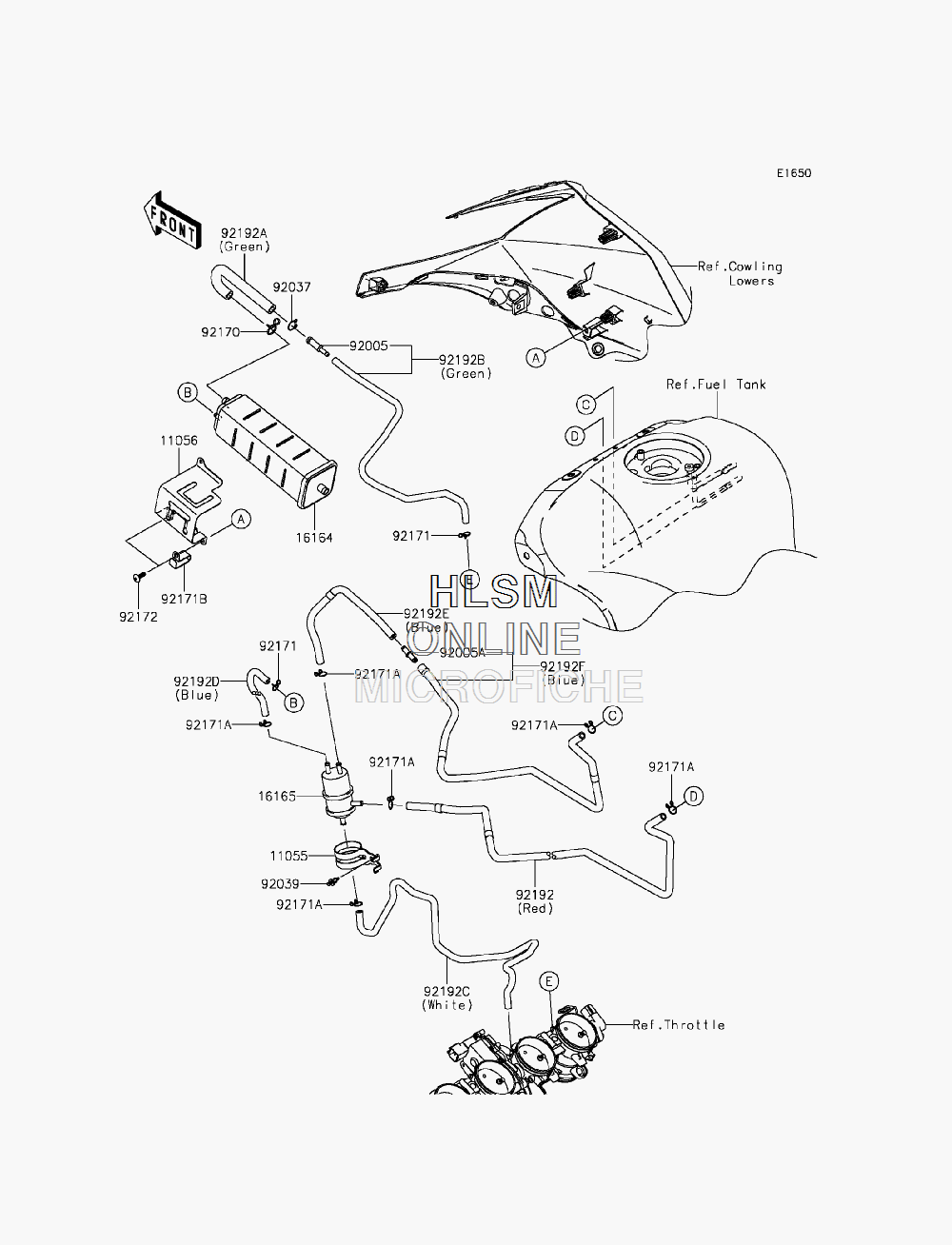

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki NINJA ZX-10R (ZX1000JFF) - 2015 года выпуска

  • №
    Артикул
    Название
  • 11055
    11055-1173 BRACKET,SEPARATOR (CALIF. ONLY)
    BRACKET,SEPARATOR (CALIF. ONLY)
  • 11056
    11056-0194 BRACKET,CANISTER (CALIF. ONLY)
    BRACKET,CANISTER (CALIF. ONLY)
  • 16164
    16164-0009 CANISTER (CALIF. ONLY)
    CANISTER (CALIF. ONLY)
  • 16165
    16165-1001 SEPARATOR (CALIF. ONLY)
    SEPARATOR (CALIF. ONLY)
  • 92005
    92005-0032 FITTING (CALIF. ONLY)
    FITTING (CALIF. ONLY)
  • 92005A
    92005-0721 FITTING (CALIF. ONLY)
    FITTING (CALIF. ONLY)
  • 92037
    92037-1271 CLAMP,12.5MM (CALIF. ONLY)
    CLAMP,12.5MM (CALIF. ONLY)
  • 92039
    92039-0068 RIVET (CALIF. ONLY)
    RIVET (CALIF. ONLY)
  • 92170
    92170-1695 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92171
    92171-0576 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92171A
    92171-0718 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92171B
    92171-0911 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92172
    92172-0238 SCREW,TAPPING,5X16 (CALIF. ONLY)
    SCREW,TAPPING,5X16 (CALIF. ONLY)
  • 92192
    92192-0895 TUBE,5X10X940, (RED) (CALIF. ONLY)
    TUBE,5X10X940, (RED) (CALIF. ONLY)
  • 92192A
    92192-0896 TUBE,FITTING-CANISTER,(GREEN) (CALIF. ONLY)
    TUBE,FITTING-CANISTER,(GREEN) (CALIF. ONLY)
  • 92192B
    92192-0897 TUBE,FITTING-THROBO,(GREEN) (CALIF. ONLY)
    TUBE,FITTING-THROBO,(GREEN) (CALIF. ONLY)
  • 92192C
    92192-0898 TUBE,SEPARATOR-THROBO,(WHITE) (CALIF. ONLY)
    TUBE,SEPARATOR-THROBO,(WHITE) (CALIF. ONLY)
  • 92192D
    92192-0989 TUBE,CANISTER-SEPARATOR,(BLUE) (CALIF. ONLY)
    TUBE,CANISTER-SEPARATOR,(BLUE) (CALIF. ONLY)
  • 92192E
    92192-0990 TUBE,5X10X720,(BLUE) (CALIF. ONLY)
    TUBE,5X10X720,(BLUE) (CALIF. ONLY)
  • 92192F
    92192-0991 TUBE,TANK-SEPARATOR,(BLUE) (CALIF. ONLY)
    TUBE,TANK-SEPARATOR,(BLUE) (CALIF. ONLY)
