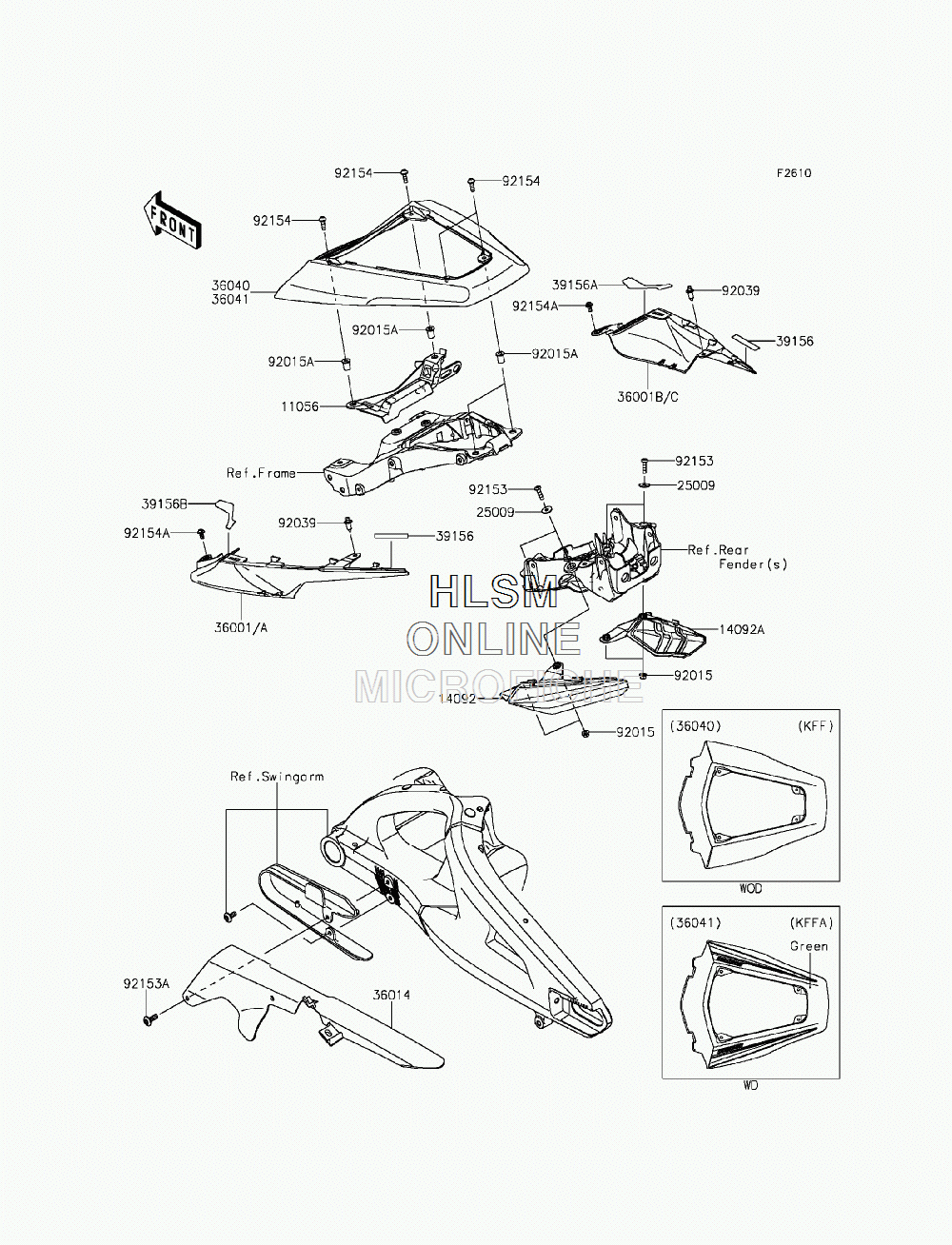

SIDE COVERS W/ CHAIN COVER для Kawasaki NINJA ZX-10R ABS 30TH ANNIVERSARY EDITION (ZX1000KFFA) - 2015 года выпуска

  • №
    Артикул
    Название
  • 11056
    11056-0601 BRACKET
    BRACKET
  • 14092
    14092-0784 COVER, REAR SIGNAL, LEFT HAND
    COVER, REAR SIGNAL, LEFT HAND
  • 14092A
    14092-0785 COVER, REAR SIGNAL, RIGHT HAND
    COVER, REAR SIGNAL, RIGHT HAND
  • 25009
    25009-004 WASHER,5.2X16X1.2
    WASHER,5.2X16X1.2
  • 36001
    36001-0580-H8 COVER-SIDE,TAIL, LEFT HAND,(EBONY)
    COVER-SIDE,TAIL, LEFT HAND,(EBONY)
  • 36001B
    36001-0581-H8 COVER-SIDE,TAIL, RIGHT HAND,(EBONY)
    COVER-SIDE,TAIL, RIGHT HAND,(EBONY)
  • 36014
    36014-0062 CASE-CHAIN
    CASE-CHAIN
  • 36041
    36041-5003-777 COVER-TAIL,(L.GREEN)
    COVER-TAIL,(L.GREEN)
  • 39156
    39156-0712 PAD,10X50X0.2
    PAD,10X50X0.2
  • 39156A
    39156-0743 PAD,SIDE COVER, RIGHT HAND
    PAD,SIDE COVER, RIGHT HAND
  • 39156B
    39156-0744 PAD,SIDE COVER, LEFT HAND
    PAD,SIDE COVER, LEFT HAND
  • 92015
    92015-1752 NUT,LOCK,FLANGED,5MM
    NUT,LOCK,FLANGED,5MM
  • 92015A
    92015-1757 NUT,WELL,5MM
    NUT,WELL,5MM
  • 92039
    92039-0068 RIVET
    RIVET
  • 92153
    92153-0370 BOLT,SOCKET,5X18
    BOLT,SOCKET,5X18
  • 92153A
    92153-0422 BOLT,SOCKET,6X14
    BOLT,SOCKET,6X14
  • 92154
    92154-0209 BOLT,SOCKET,5X16
    BOLT,SOCKET,5X16
  • 92154A
    92154-0211 BOLT,SOCKET,5X10
    BOLT,SOCKET,5X10
