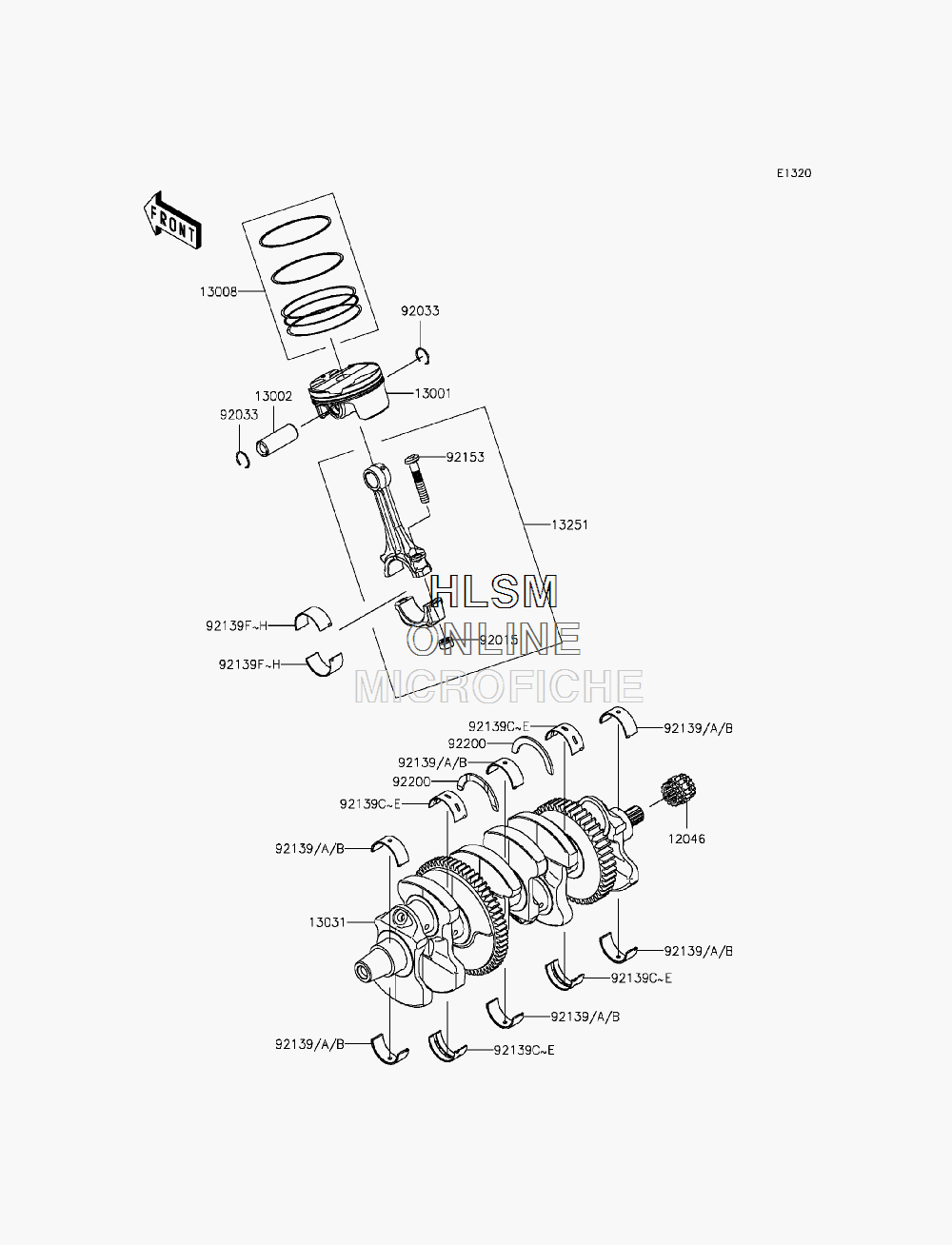

CRANKSHAFT/PISTON(S) для Kawasaki NINJA ZX-10R ABS 30TH ANNIVERSARY EDITION (ZX1000KFFA) - 2015 года выпуска

  • №
    Артикул
    Название
  • 12046
    12046-0033 SPROCKET,16T
    SPROCKET,16T
  • 13001
    13001-0129 PISTON-ENGINE
    PISTON-ENGINE
  • 13002
    13002-0004 PIN-PISTON
    PIN-PISTON
  • 13008
    13008-0041 RING-SET-PISTON
    RING-SET-PISTON
  • 13031
    13031-0147 CRANKSHAFT-COMP
    CRANKSHAFT-COMP
  • 13251
    13251-0031-HH ROD-ASSY-CONNECTING,HH
    ROD-ASSY-CONNECTING,HH
  • 92015
    92015-1311 NUT,FLANGED,8MM
    NUT,FLANGED,8MM
  • 92033
    92033-1054 RING-SNAP
    RING-SNAP
  • 92139
    92139-0298 BUSHING,#1 & #3 & #5,(BLUE)
    BUSHING,#1 & #3 & #5,(BLUE)
  • 92139A
    92139-0299 BUSHING,#1 & #3 & #5,(BLACK)
    BUSHING,#1 & #3 & #5,(BLACK)
  • 92139B
    92139-0300 BUSHING,#1 & #3 & #5,(BROWN)
    BUSHING,#1 & #3 & #5,(BROWN)
  • 92139C
    92139-0301 BUSHING,#2 & #4,(BLUE)
    BUSHING,#2 & #4,(BLUE)
  • 92139D
    92139-0302 BUSHING,#2 & #4,(BLACK)
    BUSHING,#2 & #4,(BLACK)
  • 92139E
    92139-0303 BUSHING,#2 & #4,(BROWN)
    BUSHING,#2 & #4,(BROWN)
  • 92139F
    92139-0719 BUSHING,PIN,(BLUE)
    BUSHING,PIN,(BLUE)
  • 92139G
    92139-0720 BUSHING,PIN,(BLACK)
    BUSHING,PIN,(BLACK)
  • 92139H
    92139-0721 BUSHING,PIN,(BROWN)
    BUSHING,PIN,(BROWN)
  • 92153
    92153-0809 BOLT,CON-ROD,M8X45.5
    BOLT,CON-ROD,M8X45.5
  • 92200
    92200-0424 WASHER,T=3.25
    WASHER,T=3.25
