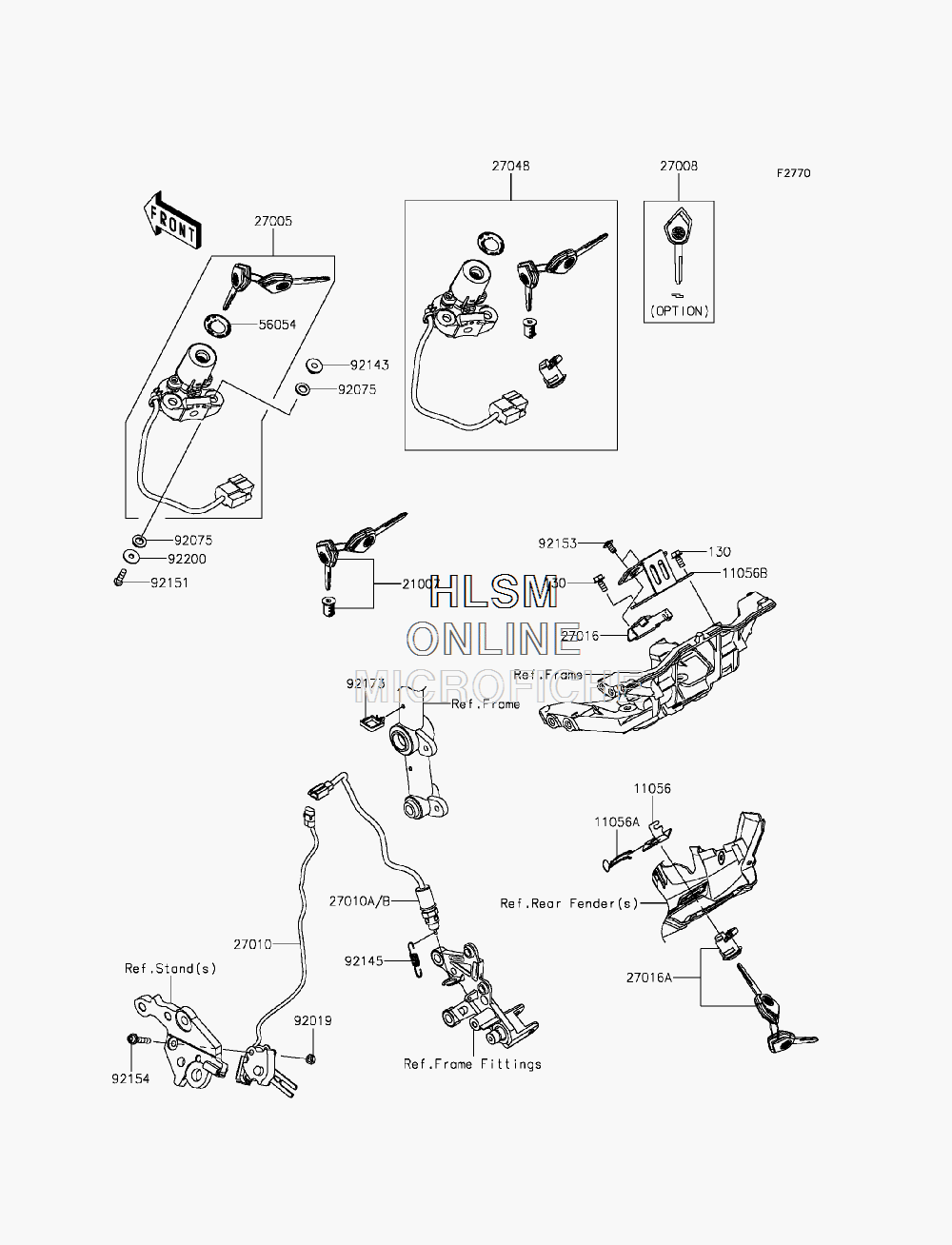

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA H2R (ZX1000PFF) - 2015 года выпуска
-
№АртикулНазвание
-
130130CB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
1105611056-0237 BRACKETBRACKET
-
11056A11056-0238 BRACKET, CLASPBRACKET, CLASP
-
11056B11056-7045 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
2100721007-5079 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-0603 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0590 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0825 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010B27010-1462 SWITCH, BRAKE LAMPSWITCH, BRAKE LAMP
-
2701627016-1115 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-5389 LOCK-ASSY, SEATLOCK-ASSY, SEAT
-
2704827048-5056 SWITCH-ASSYSWITCH-ASSY
-
5605456054-1596 MARK, IGNITIONMARK, IGNITION
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9207592075-1564 DAMPERDAMPER
-
9214392143-1016 COLLAR, L=9.6COLLAR, L=9.6
-
9214592145-0946 SPRING, REAR BRAKESPRING, REAR BRAKE
-
9215192151-1946 BOLT, TORX, 6X22BOLT, TORX, 6X22
-
9215392153-1617 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9215492154-1736 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
9217392173-1513 CLAMPCLAMP
-
9220092200-0212 WASHER, 6X20X1.6WASHER, 6X20X1.6
