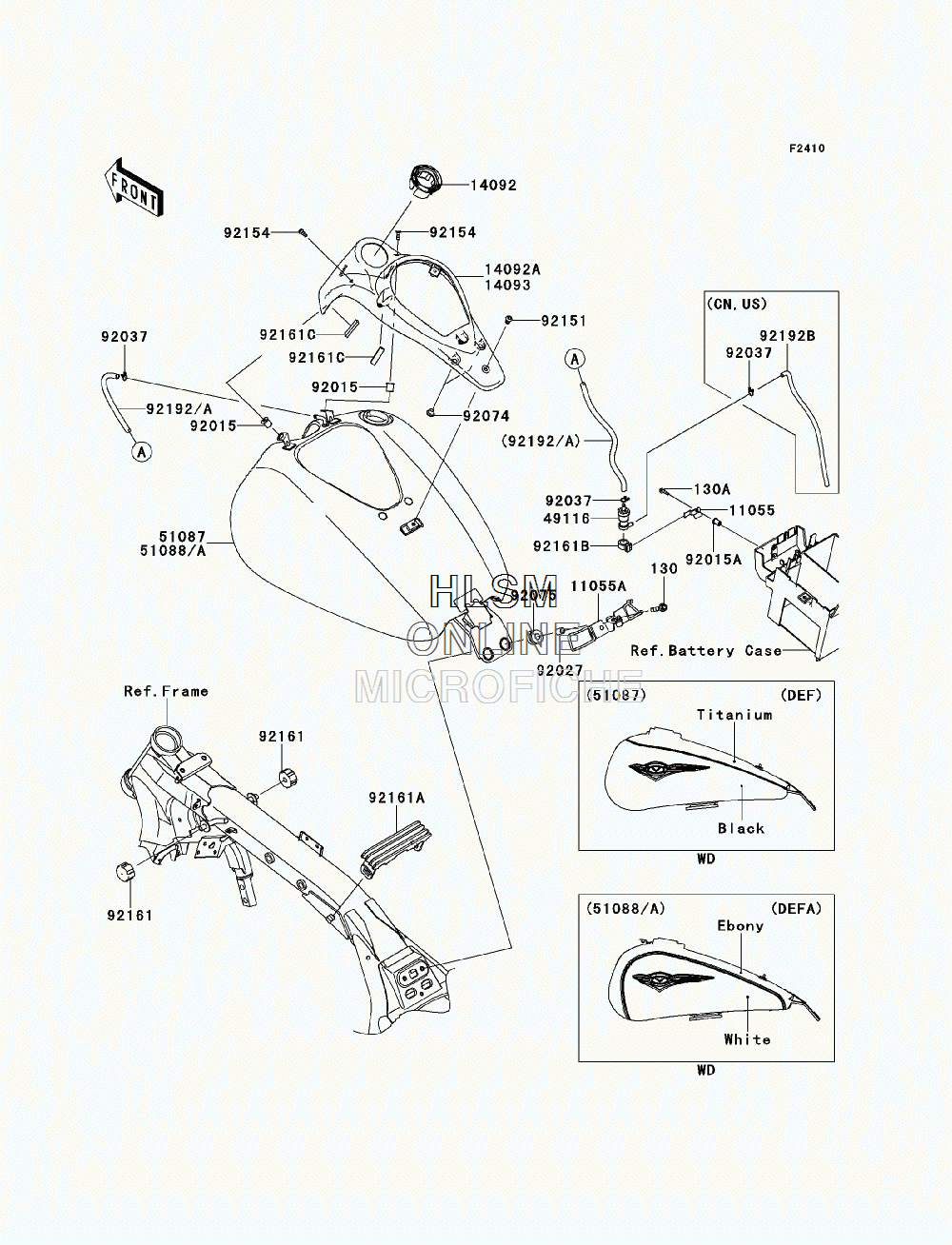

FUEL TANK для Kawasaki VULCAN 1700 NOMAD ABS (VN1700DEF) - 2014 года выпуска
-
№АртикулНазвание
-
130130BA0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
130A130BB0516 BOLT-FLANGED, 5X16BOLT-FLANGED, 5X16
-
1105511055-1512 BRACKET, CHECK VALVEBRACKET, CHECK VALVE
-
11055A11055-1552 BRACKET, SEATBRACKET, SEAT
-
1409214092-0046 COVER, IGNITION SWITCHCOVER, IGNITION SWITCH
-
14092A14092-0117 COVER, METERCOVER, METER
-
4911649116-0014 VALVE-ASSY, CHECKVALVE-ASSY, CHECK
-
5108751087-5442-28K TANK-COMP-FUEL, (BLACK/TITANIUM)TANK-COMP-FUEL, (BLACK/TITANIUM)
-
9201592015-1700 NUTNUT
-
92015A92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202792027-034 COLLAR, 8.8X12X17COLLAR, 8.8X12X17
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9207492074-028 PLUG, 7X2PLUG, 7X2
-
9207592075-1736 DAMPERDAMPER
-
9215192151-1449 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
9215492154-0242 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9216192161-0293 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92161A92161-0577 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92161B92161-0744 DAMPER, CHECK VALVEDAMPER, CHECK VALVE
-
92161C92161-1502 DAMPER, 10X40X7DAMPER, 10X40X7
-
9219292192-0829 TUBE, 5X10X980TUBE, 5X10X980
-
92192B92192-0837 TUBETUBE
