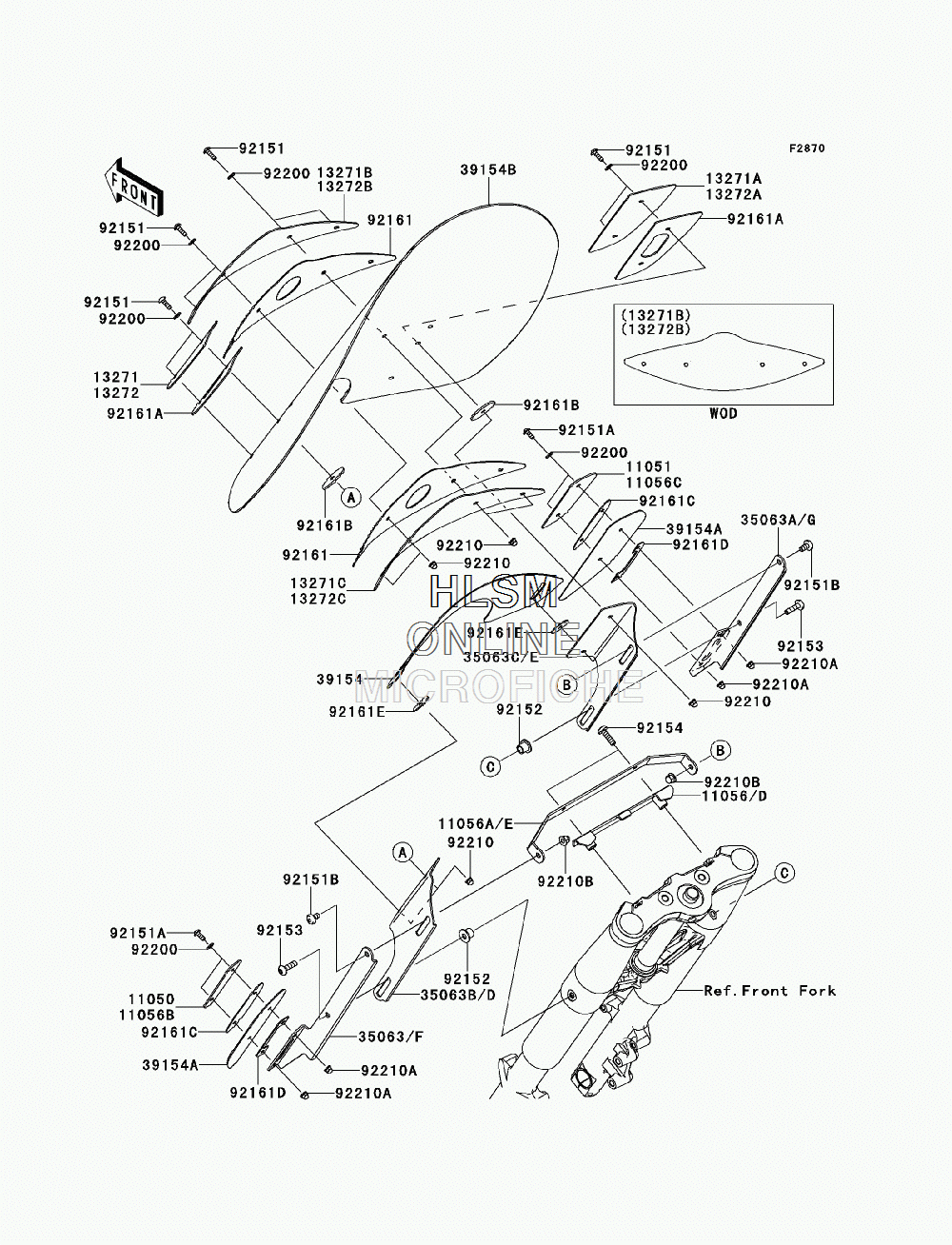

COWLING для Kawasaki VULCAN 1700 NOMAD ABS (VN1700DEF) - 2014 года выпуска
-
№АртикулНазвание
-
1105011050-1750 BRACKET, DEFLECTOR, LEFT HANDBRACKET, DEFLECTOR, LEFT HAND
-
1105111051-1061 BRACKET, DEFLECTOR, RIGHT HANDBRACKET, DEFLECTOR, RIGHT HAND
-
1105611056-0507 BRACKETBRACKET
-
11056A11056-0508 BRACKETBRACKET
-
1327113271-0704 PLATE, WINDSHIELD, LEFT HAND, OUTERPLATE, WINDSHIELD, LEFT HAND, OUTER
-
13271A13271-0705 PLATE, WINDSHIELD, RIGHT HAND, OUTERPLATE, WINDSHIELD, RIGHT HAND, OUTER
-
13271B13271-0706 PLATE, WINDSHIELD, CNT, OUTERPLATE, WINDSHIELD, CNT, OUTER
-
13271C13271-0707 PLATE, WINDSHIELD, CNT, INNERPLATE, WINDSHIELD, CNT, INNER
-
3506335063-0538 STAY, DEFLECTOR, LEFT HANDSTAY, DEFLECTOR, LEFT HAND
-
35063A35063-0539 STAY, DEFLECTOR, RIGHT HANDSTAY, DEFLECTOR, RIGHT HAND
-
35063B35063-0595 STAY, WINDSHIELD, LEFT HANDSTAY, WINDSHIELD, LEFT HAND
-
35063C35063-0596 STAY, WINDSHIELD, RIGHT HANDSTAY, WINDSHIELD, RIGHT HAND
-
3915439154-0034 WINDSHIELD, SUBWINDSHIELD, SUB
-
39154A39154-0325 WINDSHIELD, DEFLECTORWINDSHIELD, DEFLECTOR
-
39154B39154-0326 WINDSHIELD, MAINWINDSHIELD, MAIN
-
9215192151-1750 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92151A92151-1751 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
92151B92151-1752 BOLT, SOCKET, 8X16BOLT, SOCKET, 8X16
-
9215292152-0742 COLLARCOLLAR
-
9215392153-1467 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9215492154-0186 BOLT, SOCKET, 8X40BOLT, SOCKET, 8X40
-
9216192161-0330 DAMPER, WINDSHIELD, CNTDAMPER, WINDSHIELD, CNT
-
92161A92161-0332 DAMPER, WINDSHIELD, LEFT HAND & RIGHT HAND, OUTERDAMPER, WINDSHIELD, LEFT HAND & RIGHT HAND, OUTER
-
92161B92161-0647 DAMPERDAMPER
-
92161C92161-0679 DAMPER, DEFLECTOR, OUTERDAMPER, DEFLECTOR, OUTER
-
92161D92161-0680 DAMPER, DEFLECTOR, INNERDAMPER, DEFLECTOR, INNER
-
92161E92161-0712 DAMPERDAMPER
-
9220092200-3775 WASHER, 6.5X14.5X1.5WASHER, 6.5X14.5X1.5
-
9221092210-0220 NUT, CAP, 6MMNUT, CAP, 6MM
-
92210A92210-1129 NUT, CAP, 6MMNUT, CAP, 6MM
-
92210B92210-1132 NUT, CAP, 8MMNUT, CAP, 8MM
