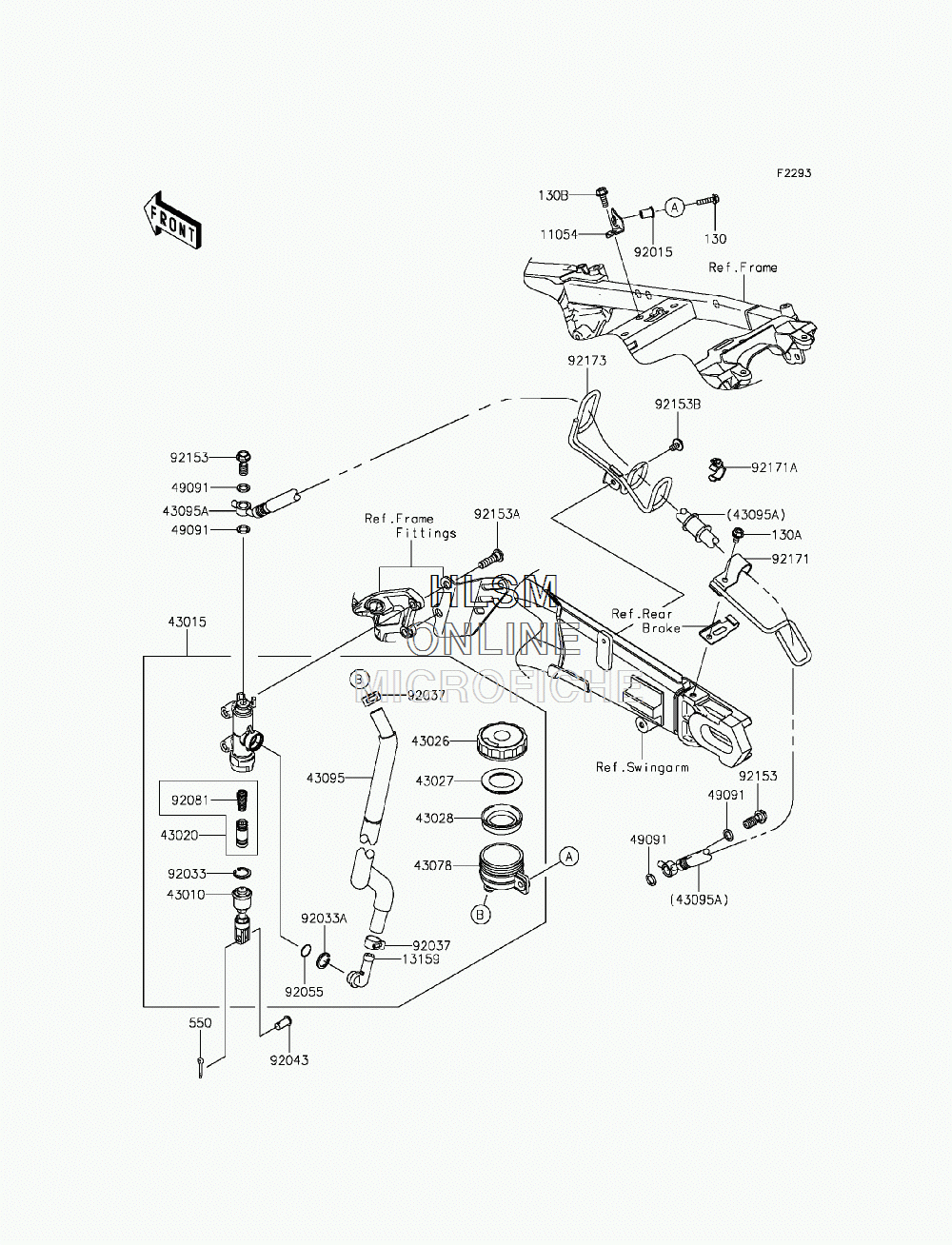

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA ZX-14R (ZX1400EEFA) - 2014 года выпуска`
-
№АртикулНазвание
-
130130BA0520 BOLT-FLANGED,5X20BOLT-FLANGED,5X20
-
130A130BA0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
130B130BA0616 BOLT-FLANGED,6X16BOLT-FLANGED,6X16
-
550550AA2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
1105411054-0184 BRACKET, RESERVOIR TANK, REARBRACKET, RESERVOIR TANK, REAR
-
1315913159-1052 CONNECTOR, REAR MASTER CYLINDERCONNECTOR, REAR MASTER CYLINDER
-
4301043010-0012 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0584 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1051 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM,MASTER CYLINDERDIAPHRAGM,MASTER CYLINDER
-
4307843078-1082 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-0235 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
43095A43095-0401 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9201592015-1757 NUT,WELL,5MMNUT,WELL,5MM
-
9203392033-0079 RING-SNAP,20.9X24.6X1.2RING-SNAP,20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP,20.5MMRING-SNAP,20.5MM
-
9203792037-1547 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
9204392043-0104 PIN,8X17PIN,8X17
-
9205592055-0741 RING-O,14.8X2.4RING-O,14.8X2.4
-
9208192081-1737 SPRING,MASTER CYLINDERSPRING,MASTER CYLINDER
-
9215392153-0627 BOLT,OIL,L=23BOLT,OIL,L=23
-
92153A92153-1624 BOLT,SOCKET,8X30BOLT,SOCKET,8X30
-
92153B92153-1628 BOLT,SOCKET,6X10BOLT,SOCKET,6X10
-
9217192171-0553 CLAMP,BRAKE HOSE, REARCLAMP,BRAKE HOSE, REAR
-
92171A92171-1703 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
9217392173-0989 CLAMPCLAMP
