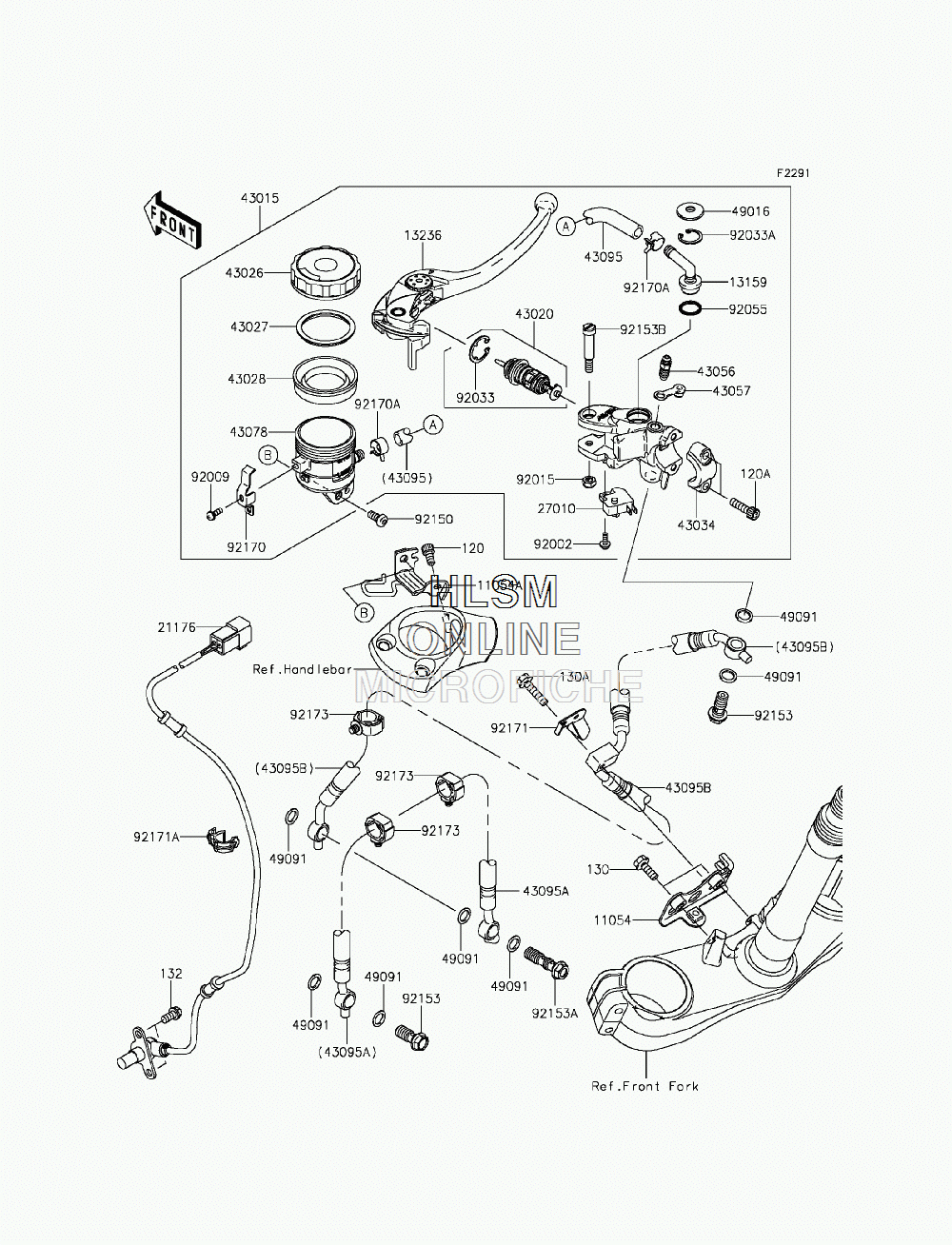

BRAKE - MASTER CYLINDER - FRONT для Kawasaki NINJA ZX-14R (ZX1400EEFA) - 2014 года выпуска`
-
№АртикулНазвание
-
120120CA0612 BOLT-SOCKET,6X12BOLT-SOCKET,6X12
-
120A120CB0622 BOLT-SOCKET,6X22BOLT-SOCKET,6X22
-
130130BA0618 BOLT-FLANGED,6X18BOLT-FLANGED,6X18
-
130A130BB0625 BOLT-FLANGED,6X25BOLT-FLANGED,6X25
-
132132BA0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
1105411054-0029 BRACKET,JOINTBRACKET,JOINT
-
11054A11054-0636 BRACKET, RESERVOIR TANK, FRONTBRACKET, RESERVOIR TANK, FRONT
-
1315913159-1061 CONNECTORCONNECTOR
-
1323613236-0103 LEVER-COMP, FRONT BRAKELEVER-COMP, FRONT BRAKE
-
2117621176-0051 SENSOR,SPEED, FRONTSENSOR,SPEED, FRONT
-
2701027010-0025 SWITCH,BRAKESWITCH,BRAKE
-
4301543015-0150 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-0010 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1051 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM,MASTER CYLINDERDIAPHRAGM,MASTER CYLINDER
-
4303443034-0056 HOLDER-BRAKE,MASTER CYLINDERHOLDER-BRAKE,MASTER CYLINDER
-
4305643056-1056 BREATHER-BRAKEBREATHER-BRAKE
-
4305743057-1001 CAP-BREATHERCAP-BREATHER
-
4307843078-1099 RESERVOIRRESERVOIR
-
4309543095-0040 HOSE-BRAKE, FRONT MASTER CYLINDERHOSE-BRAKE, FRONT MASTER CYLINDER
-
43095A43095-0400 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
43095B43095-0677 HOSE-BRAKE,M/C-CALIPERHOSE-BRAKE,M/C-CALIPER
-
4901649016-1147 COVER-SEALCOVER-SEAL
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9200292002-1323 BOLT,SCREW,4X12BOLT,SCREW,4X12
-
9200992009-1570 SCREWSCREW
-
9201592015-1528 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9203392033-0034 RING-SNAPRING-SNAP
-
92033A92033-1186 RING-SNAP,20.5MMRING-SNAP,20.5MM
-
9205592055-0741 RING-O,14.8X2.4RING-O,14.8X2.4
-
9215092150-1836 BOLT,SOCKET,6X14BOLT,SOCKET,6X14
-
9215392153-0627 BOLT,OIL,L=23BOLT,OIL,L=23
-
92153A92153-0628 BOLT,OIL,L=37BOLT,OIL,L=37
-
92153B92153-0868 BOLT, LEVERBOLT, LEVER
-
9217092170-1090 CLAMPCLAMP
-
92170A92170-1091 CLAMP,HOSECLAMP,HOSE
-
9217192171-0624 CLAMPCLAMP
-
92171A92171-1703 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
9217392173-0868 CLAMP,HOLDER CLIPCLAMP,HOLDER CLIP
