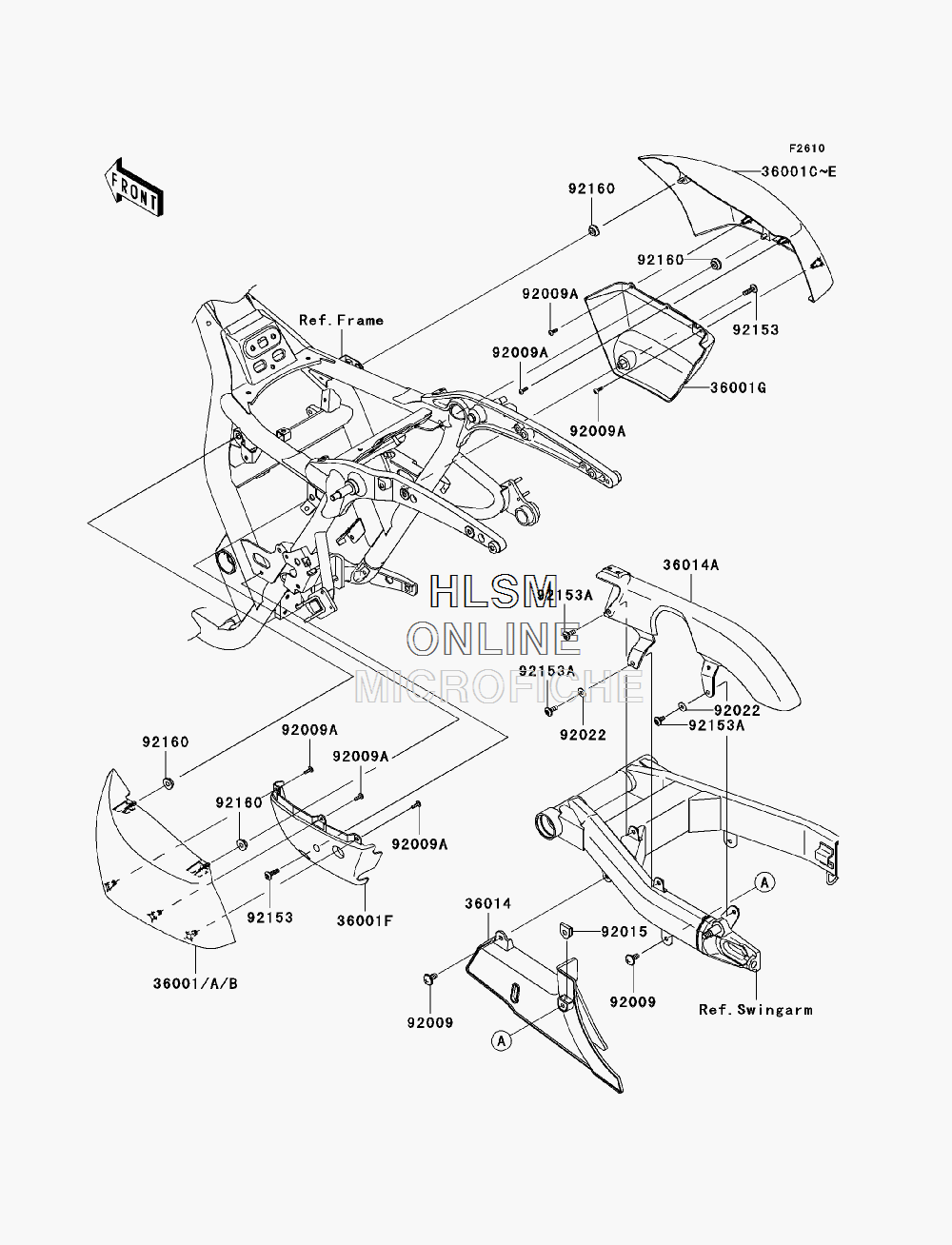

SIDE COVERS W/ CHAIN COVER для Kawasaki VULCAN 1700 CLASSIC (VN1700ECF) - 2012 года выпуска
-
№АртикулНазвание
-
3600136001-0157-H8 COVER-SIDE, LEFT HAND,UPP,EBONYCOVER-SIDE, LEFT HAND,UPP,EBONY
-
36001C36001-0158-H8 COVER-SIDE, RIGHT HAND,UPP,EBONYCOVER-SIDE, RIGHT HAND,UPP,EBONY
-
36001F36001-0202 COVER-SIDE, LEFT HAND,LWRCOVER-SIDE, LEFT HAND,LWR
-
36001G36001-0203 COVER-SIDE, RIGHT HAND,LWRCOVER-SIDE, RIGHT HAND,LWR
-
3601436014-0042 CASE-CHAINCASE-CHAIN
-
36014A36014-0061 CASE-CHAIN,UPPCASE-CHAIN,UPP
-
9200992009-1555 SCREW,6X14SCREW,6X14
-
92009A92009-1792 SCREW,TAPPING,4X14SCREW,TAPPING,4X14
-
9201592015-1904 NUT,CLIP,6MMNUT,CLIP,6MM
-
9202292022-1654 WASHER,6.5X16X1.0WASHER,6.5X16X1.0
-
9215392153-0574 BOLT,SOCKET,6X22BOLT,SOCKET,6X22
-
92153A92153-0816 BOLT,6X18BOLT,6X18
-
9216092160-1613 DAMPERDAMPER
