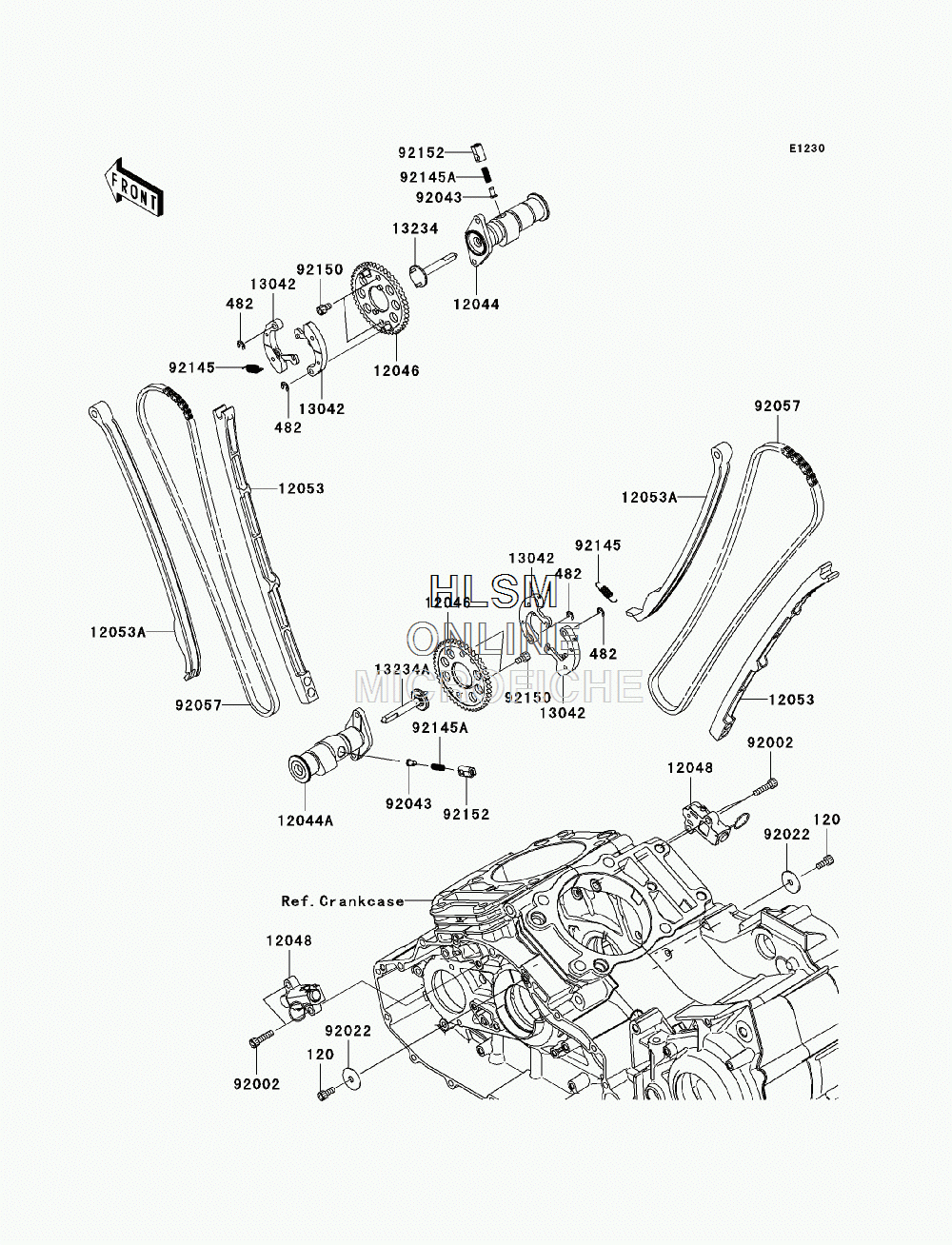

CAMSHAFT(S) W/ TENSIONER для Kawasaki VULCAN 1700 CLASSIC (VN1700ECF) - 2012 года выпуска

  • №
    Артикул
    Название
  • 120
    120CA0614 BOLT-SOCKET,6X14
    BOLT-SOCKET,6X14
  • 482
    482J5000 CIRCLIP-TYPE-E
    CIRCLIP-TYPE-E
  • 12044
    12044-0134 CAMSHAFT-VALVE, FRONT
    CAMSHAFT-VALVE, FRONT
  • 12044A
    12044-0135 CAMSHAFT-VALVE, REAR
    CAMSHAFT-VALVE, REAR
  • 12046
    12046-0064 SPROCKET,CAMSHAFT,46T
    SPROCKET,CAMSHAFT,46T
  • 12048
    12048-0053 TENSIONER-ASSY,CAM CHAIN
    TENSIONER-ASSY,CAM CHAIN
  • 12053
    12053-0120 GUIDE-CHAIN,FIXED SIDE
    GUIDE-CHAIN,FIXED SIDE
  • 12053A
    12053-0121 GUIDE-CHAIN,TENSIONER SIDE
    GUIDE-CHAIN,TENSIONER SIDE
  • 13042
    13042-0028 WEIGHT,DECOMP
    WEIGHT,DECOMP
  • 13234
    13234-0040 SHAFT-COMP, FRONT CAMSHAFT
    SHAFT-COMP, FRONT CAMSHAFT
  • 13234A
    13234-0041 SHAFT-COMP, REAR CAMSHAFT
    SHAFT-COMP, REAR CAMSHAFT
  • 92002
    92002-1696 BOLT,SOCKET,6X25
    BOLT,SOCKET,6X25
  • 92022
    92022-227 WASHER,7X27X1.6
    WASHER,7X27X1.6
  • 92043
    92043-0163 PIN
    PIN
  • 92057
    92057-0154 CHAIN,CAM,98XRIGHT HAND2010-146M
    CHAIN,CAM,98XRIGHT HAND2010-146M
  • 92145
    92145-0586 SPRING,8X0.4X20
    SPRING,8X0.4X20
  • 92145A
    92145-0589 SPRING,5.9X0.4X16.5
    SPRING,5.9X0.4X16.5
  • 92150
    92150-1650 BOLT,SOCKET,6X10
    BOLT,SOCKET,6X10
  • 92152
    92152-0650 COLLAR
    COLLAR
