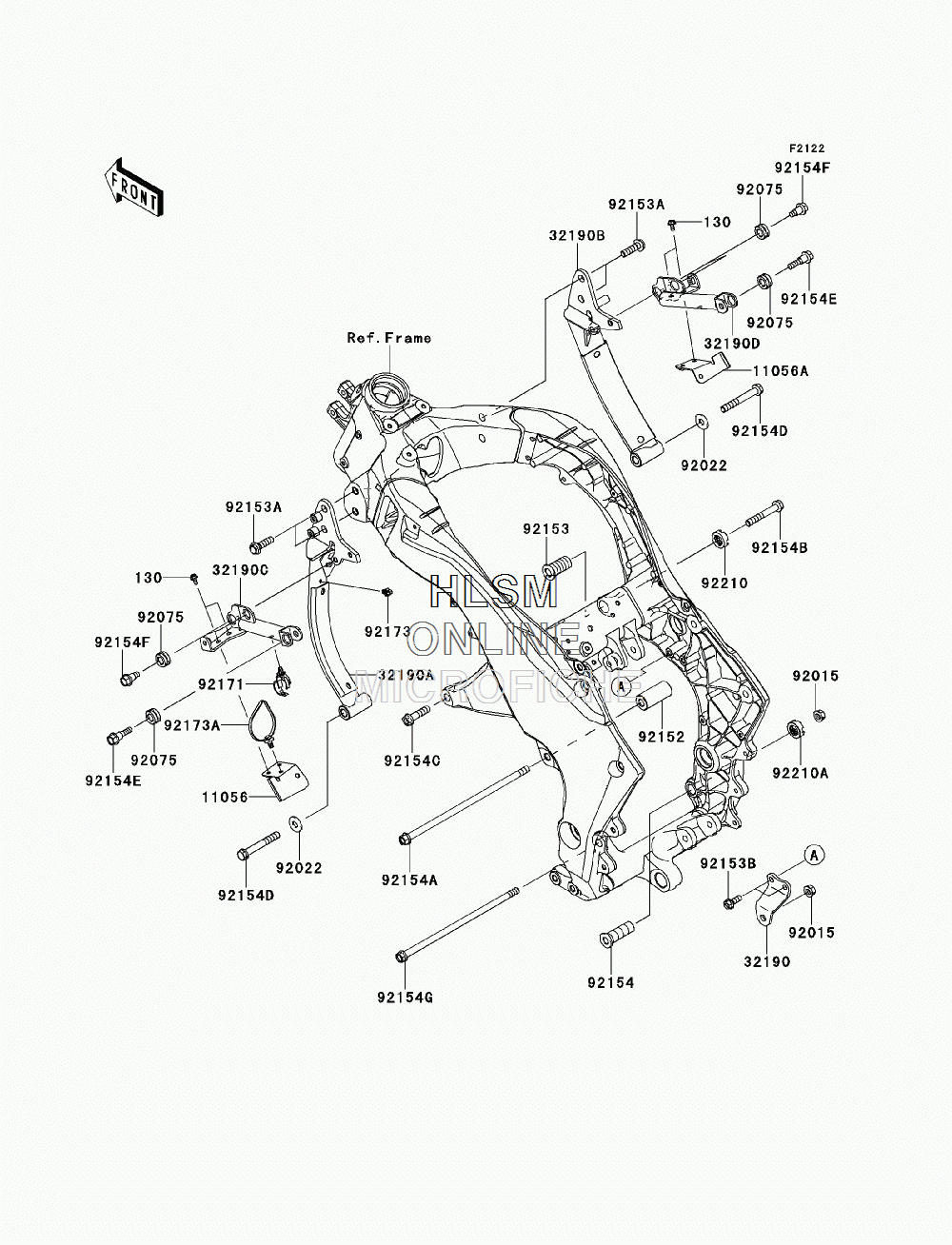

ENGINE MOUNT для Kawasaki NINJA 1000 ABS (ZX1000HCF) - 2012 года выпуска
-
№АртикулНазвание
-
130130BB0510 BOLT-FLANGED, 5X10BOLT-FLANGED, 5X10
-
1105611056-0550 BRACKET, HEAT SHIELD, LEFT HANDBRACKET, HEAT SHIELD, LEFT HAND
-
11056A11056-0551 BRACKET, HEAT SHIELD, RIGHT HANDBRACKET, HEAT SHIELD, RIGHT HAND
-
3219032190-0458-18R BRACKET-ENGINE, CR CASE UPPER, (BLACK)BRACKET-ENGINE, CR CASE UPPER, (BLACK)
-
32190A32190-0580-18R BRACKET-ENGINE, LEFT HAND, (F.S.BLACK)BRACKET-ENGINE, LEFT HAND, (F.S.BLACK)
-
32190B32190-0581-18R BRACKET-ENGINE, RIGHT HAND, (F.S.BLACK)BRACKET-ENGINE, RIGHT HAND, (F.S.BLACK)
-
32190C32190-0582 BRACKET-ENGINE, LEFT HANDBRACKET-ENGINE, LEFT HAND
-
32190D32190-0583 BRACKET-ENGINE, RIGHT HANDBRACKET-ENGINE, RIGHT HAND
-
9201592015-1180 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202292022-1396 WASHER, 10.5X26X2.3, (BLACK)WASHER, 10.5X26X2.3, (BLACK)
-
9207592075-1898 DAMPERDAMPER
-
9215292152-0853 COLLAR, 11X26X56.5COLLAR, 11X26X56.5
-
9215392153-0488 BOLT, SOCKET, 20X43BOLT, SOCKET, 20X43
-
92153A92153-0802 BOLT, FLANGED, 10X35BOLT, FLANGED, 10X35
-
92153B92153-1554 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
9215492154-0267 BOLT, ENGINE MOUNT, 18X53.5BOLT, ENGINE MOUNT, 18X53.5
-
92154A92154-0268 BOLT, FLANGED, 10X270BOLT, FLANGED, 10X270
-
92154B92154-0312 BOLT, FLANGED, 10X65BOLT, FLANGED, 10X65
-
92154C92154-0313 BOLT, FLANGED, 10X40BOLT, FLANGED, 10X40
-
92154D92154-0449 BOLT, FLANGED, 10X75BOLT, FLANGED, 10X75
-
92154E92154-0742 BOLT, FLANGED, 8X25BOLT, FLANGED, 8X25
-
92154F92154-0749 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
92154G92154-0827 BOLT, FLANGED, 10X255BOLT, FLANGED, 10X255
-
9217192171-0069 CLAMP, DIA=20CLAMP, DIA=20
-
9217392173-0215 CLAMPCLAMP
-
92173A92173-0742 CLAMPCLAMP
-
9221092210-0591 NUT, 20MMNUT, 20MM
-
92210A92210-1203 NUT, 18MMNUT, 18MM
