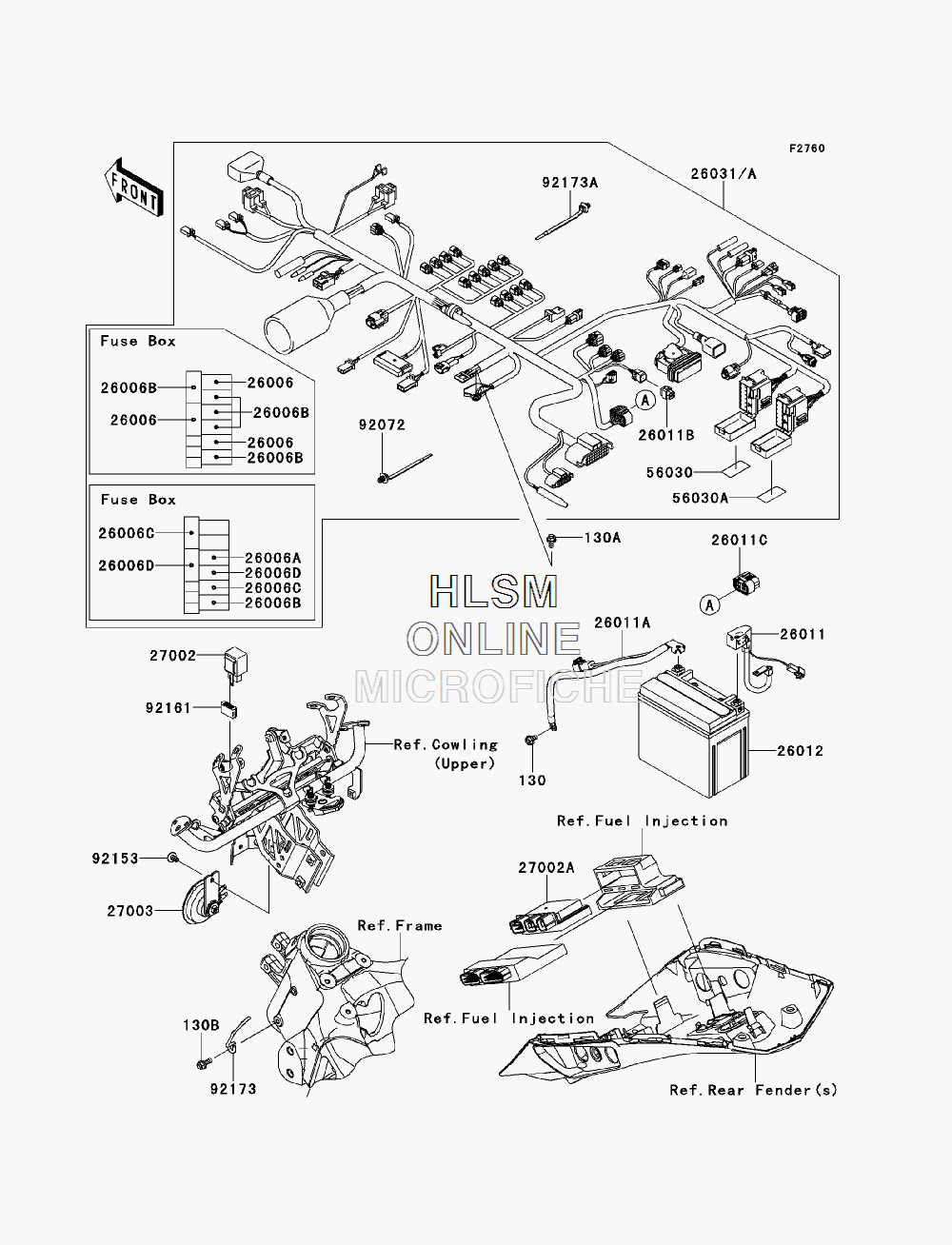

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA 1000 ABS (ZX1000HCF) - 2012 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0610 BOLT-FLANGED, 6X10
    BOLT-FLANGED, 6X10
  • 130A
    130BA0612 BOLT-FLANGED, 6X12
    BOLT-FLANGED, 6X12
  • 130B
    130BA0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 26006
    26006-0001 FUSE, MINI BLADE, 15A, (BLUE)
    FUSE, MINI BLADE, 15A, (BLUE)
  • 26006A
    26006-0052 FUSE, MINI BLADE, 2A, (GRAY)
    FUSE, MINI BLADE, 2A, (GRAY)
  • 26006B
    26006-1078 FUSE, MINI BLADE, 10A, (RED)
    FUSE, MINI BLADE, 10A, (RED)
  • 26006C
    26006-1079 FUSE, MINI BLADE, 20A, (YELLOW)
    FUSE, MINI BLADE, 20A, (YELLOW)
  • 26006D
    26006-1080 FUSE, MINI BLADE, 30A, (GREEN)
    FUSE, MINI BLADE, 30A, (GREEN)
  • 26011
    26011-0252 WIRE-LEAD, BATTERY(+)
    WIRE-LEAD, BATTERY(+)
  • 26011A
    26011-0253 WIRE-LEAD, BATTERY(-)
    WIRE-LEAD, BATTERY(-)
  • 26011B
    26011-0271 WIRE-LEAD, CAP
    WIRE-LEAD, CAP
  • 26011C
    26011-0275 WIRE-LEAD
    WIRE-LEAD
  • 26012
    26012-0088 BATTERY, YTX9-BS, 12V 8AH
    BATTERY, YTX9-BS, 12V 8AH
  • 26031
    26031-1301 HARNESS, MAIN
    HARNESS, MAIN
  • 27002
    27002-0006 RELAY-ASSY, SIGNAL LAMP
    RELAY-ASSY, SIGNAL LAMP
  • 27002A
    27002-0007 RELAY-ASSY
    RELAY-ASSY
  • 27003
    27003-0075 HORN
    HORN
  • 56030
    56030-0361 LABEL, FUSE BOX
    LABEL, FUSE BOX
  • 56030A
    56030-0704 LABEL, FUSE BOX, ABS & ACCESSORY
    LABEL, FUSE BOX, ABS & ACCESSORY
  • 92072
    92072-1414 BAND
    BAND
  • 92153
    92153-1948 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92161
    92161-0283 DAMPER, SIGNAL RELAY
    DAMPER, SIGNAL RELAY
  • 92173
    92173-0182 CLAMP
    CLAMP
  • 92173A
    92173-0726 CLAMP, HEAD PIPE
    CLAMP, HEAD PIPE
