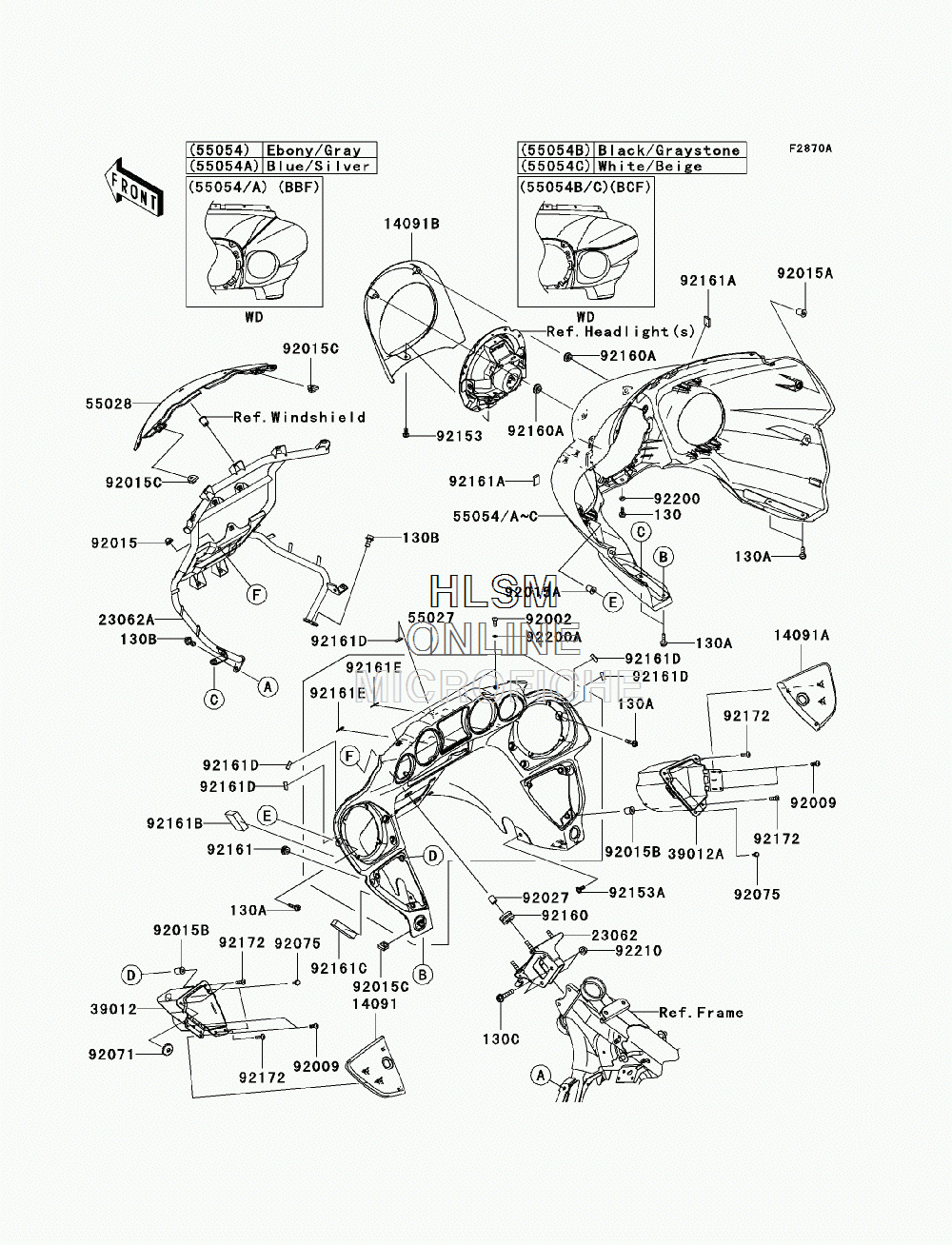

COWLING для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700BBF) - 2011 года выпуска`
-
№АртикулНазвание
-
130130AA0616 BOLT-FLANGED,6X16BOLT-FLANGED,6X16
-
130A130BB0622 BOLT-FLANGED,6X22BOLT-FLANGED,6X22
-
130B130BB0816 BOLT-FLANGED,8X16BOLT-FLANGED,8X16
-
130C130BB0835 BOLT-FLANGED,8X35BOLT-FLANGED,8X35
-
1409114091-0946-6Z COVER,STORAGE CASE, LEFT HAND,F.BLACKCOVER,STORAGE CASE, LEFT HAND,F.BLACK
-
14091A14091-0947-6Z COVER,STORAGE CASE, RIGHT HAND,F.BLACKCOVER,STORAGE CASE, RIGHT HAND,F.BLACK
-
14091B14091-0948 COVER,HEAD LAMPCOVER,HEAD LAMP
-
2306223062-0106 BRACKET-COMP,HEAD PIPEBRACKET-COMP,HEAD PIPE
-
23062A23062-0720 BRACKET-COMP,COWLINGBRACKET-COMP,COWLING
-
3901239012-0027 CASE-STORAGE, LEFT HANDCASE-STORAGE, LEFT HAND
-
39012A39012-0028 CASE-STORAGE, RIGHT HANDCASE-STORAGE, RIGHT HAND
-
5502755027-0063-6Z COWLING-ASSY,UPP,INNER,BLACKCOWLING-ASSY,UPP,INNER,BLACK
-
5502855028-0227-6Z COWLING,CNT,F.BLACKCOWLING,CNT,F.BLACK
-
5505455054-5208-17R COWLING,UPP,OUTER,EBONY/GRAY (FOR 17R)COWLING,UPP,OUTER,EBONY/GRAY (FOR 17R)
-
55054A55054-5209-32Z COWLING,UPP,OUTER,BLUE/SILVER (USA ONLY) (FOR 32Z)COWLING,UPP,OUTER,BLUE/SILVER (USA ONLY) (FOR 32Z)
-
9200292002-1700 BOLT,6X14BOLT,6X14
-
9200992009-1332 SCREW,TAPPING,5X10SCREW,TAPPING,5X10
-
9201592015-1406 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
92015A92015-1700 NUTNUT
-
92015B92015-1757 NUT,WELL,5MMNUT,WELL,5MM
-
92015C92015-1904 NUT,CLIP,6MMNUT,CLIP,6MM
-
9202792027-012 COLLAR,8.8X12X14COLLAR,8.8X12X14
-
9207192071-079 GROMMET,TAIL LAMP WIREGROMMET,TAIL LAMP WIRE
-
9207592075-1808 DAMPERDAMPER
-
9215392153-0817 BOLT,SOCKET,6X16BOLT,SOCKET,6X16
-
92153A92153-1451 BOLT,SOCKET,6X15BOLT,SOCKET,6X15
-
9216092160-1007 DAMPERDAMPER
-
92160A92160-1613 DAMPERDAMPER
-
9216192161-0317 DAMPERDAMPER
-
92161A92161-0717 DAMPERDAMPER
-
92161B92161-0784 DAMPERDAMPER
-
92161C92161-0785 DAMPERDAMPER
-
92161D92161-0965 DAMPERDAMPER
-
92161E92161-0996 DAMPER,3X25X0.3DAMPER,3X25X0.3
-
9217292172-0428 SCREW,5X18SCREW,5X18
-
9220092200-0511 WASHER,6.5X12X2WASHER,6.5X12X2
-
92200A92200-1465 WASHER,6.2X10X1WASHER,6.2X10X1
-
9221092210-0004 NUT,FLANGED,8MMNUT,FLANGED,8MM
