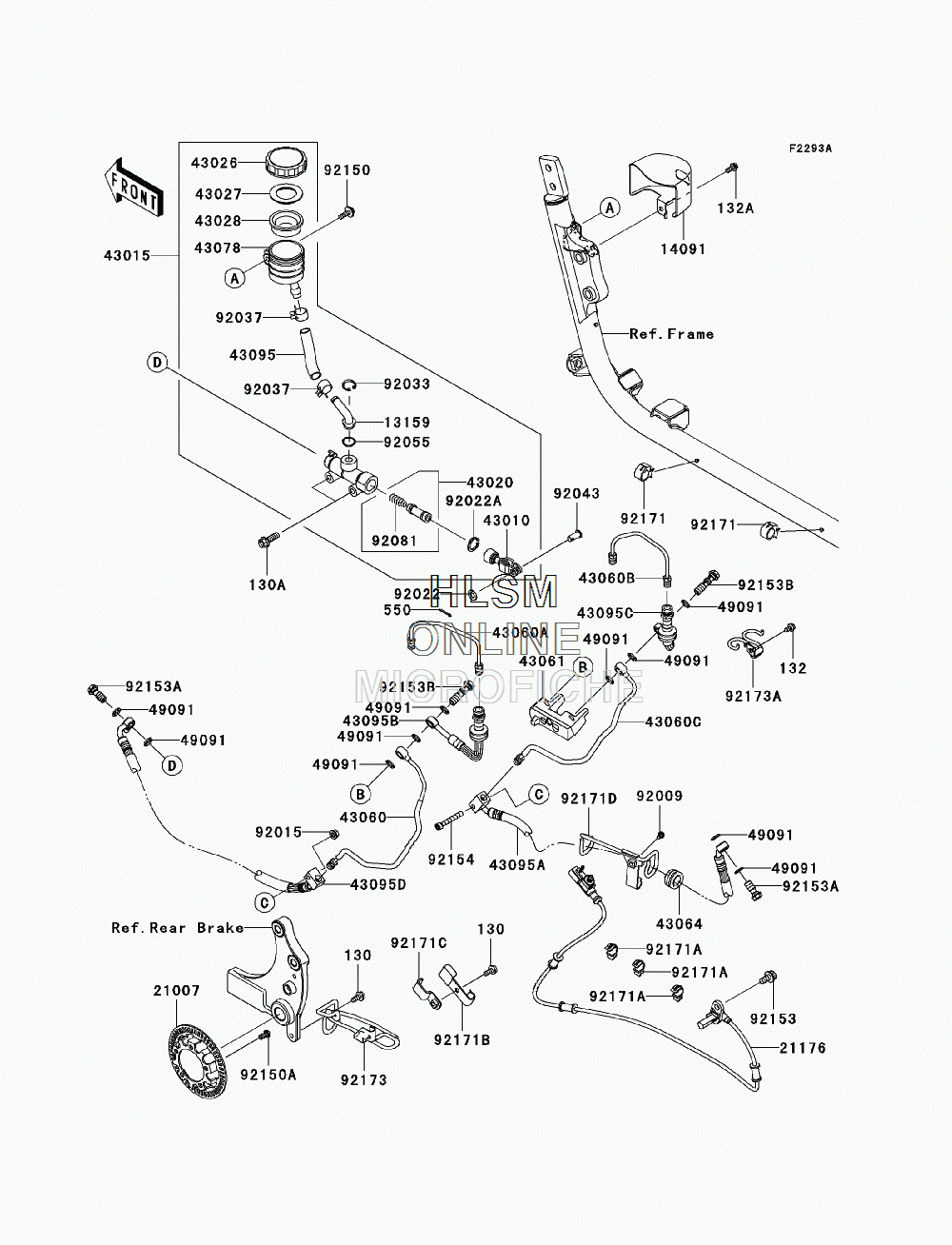

BRAKE - MASTER CYLINDER - REAR для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700BBF) - 2011 года выпуска

  • №
    Артикул
    Название
  • 13159
    13159-1052 CONNECTOR, REAR MASTER CYLINDER
    CONNECTOR, REAR MASTER CYLINDER
  • 14091
    14091-1595 COVER, RESERVOIR TANK
    COVER, RESERVOIR TANK
  • 21007
    21007-0115 ROTOR,SPEED SENSOR
    ROTOR,SPEED SENSOR
  • 21176
    21176-0104 SENSOR,SPEED, REAR
    SENSOR,SPEED, REAR
  • 43010
    43010-1062 ROD-ASSY-BRAKE
    ROD-ASSY-BRAKE
  • 43015
    43015-0081 CYLINDER-ASSY-MASTER, REAR
    CYLINDER-ASSY-MASTER, REAR
  • 43020
    43020-1057 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43026
    43026-1051 CAP-BRAKE
    CAP-BRAKE
  • 43027
    43027-1051 PLATE-DIAPHRAGM
    PLATE-DIAPHRAGM
  • 43028
    43028-1057 DIAPHRAGM,MASTER CYLINDER
    DIAPHRAGM,MASTER CYLINDER
  • 43060
    43060-0078 PIPE-BRAKE, REAR M/CYLINDER-(HU)
    PIPE-BRAKE, REAR M/CYLINDER-(HU)
  • 43060A
    43060-0079 PIPE-BRAKE,(REAR M/CYLINDER)-HU
    PIPE-BRAKE,(REAR M/CYLINDER)-HU
  • 43060B
    43060-0080 PIPE-BRAKE,HU-(REAR CALIPER)
    PIPE-BRAKE,HU-(REAR CALIPER)
  • 43060C
    43060-0081 PIPE-BRAKE,(HU)-REAR CALIPER
    PIPE-BRAKE,(HU)-REAR CALIPER
  • 43061
    43061-0006 JOINT-BRAKE
    JOINT-BRAKE
  • 43064
    43064-007 GROMMET,HOSE CLAMP
    GROMMET,HOSE CLAMP
  • 43078
    43078-1178 RESERVOIR, REAR MASTER CYLINDER
    RESERVOIR, REAR MASTER CYLINDER
  • 43095
    43095-0306 HOSE-BRAKE, REAR MASTER CYLINDER
    HOSE-BRAKE, REAR MASTER CYLINDER
  • 43095A
    43095-0391 HOSE-BRAKE,HU-REAR CALIPER
    HOSE-BRAKE,HU-REAR CALIPER
  • 43095B
    43095-0520 HOSE-BRAKE,(REAR M/CYLINDER)-HU
    HOSE-BRAKE,(REAR M/CYLINDER)-HU
  • 43095C
    43095-0521 HOSE-BRAKE,HU-(REAR CALIPER)
    HOSE-BRAKE,HU-(REAR CALIPER)
  • 43095D
    43095-0524 HOSE-BRAKE, REAR M/CYLINDER-(HU)
    HOSE-BRAKE, REAR M/CYLINDER-(HU)
  • 49091
    49091-0001 WASHER-SEAL,10.1X14.5X1.5
    WASHER-SEAL,10.1X14.5X1.5
  • 92009
    92009-1661 SCREW,6X10
    SCREW,6X10
  • 92015
    92015-1078 NUT,FLANGED,6MM
    NUT,FLANGED,6MM
  • 92022
    92022-1582 WASHER,8.5X16X1.2
    WASHER,8.5X16X1.2
  • 92022A
    92022-1601 WASHER,CIRCRIP
    WASHER,CIRCRIP
  • 92033
    92033-1186 RING-SNAP,20.5MM
    RING-SNAP,20.5MM
  • 92037
    92037-1547 CLAMP,BRAKE HOSE
    CLAMP,BRAKE HOSE
  • 92043
    92043-1013 PIN,8X16
    PIN,8X16
  • 92055
    92055-1251 RING-O,MASTER CYLINDER
    RING-O,MASTER CYLINDER
  • 92081
    92081-1737 SPRING,MASTER CYLINDER
    SPRING,MASTER CYLINDER
  • 92150
    92150-1339 BOLT,FLANGED,6X20
    BOLT,FLANGED,6X20
  • 92150A
    92150-1836 BOLT,SOCKET,6X14
    BOLT,SOCKET,6X14
  • 92153
    92153-0327 BOLT,SOCKET,8X16
    BOLT,SOCKET,8X16
  • 92153A
    92153-0627 BOLT,OIL,L=23
    BOLT,OIL,L=23
  • 92153B
    92153-1438 BOLT,OIL,L=37
    BOLT,OIL,L=37
  • 92154
    92154-0134 BOLT,SOCKET,6X45
    BOLT,SOCKET,6X45
  • 130
    130BA0614 BOLT-FLANGED,6X14
    BOLT-FLANGED,6X14
  • 130A
    130BB0825 BOLT-FLANGED,8X25
    BOLT-FLANGED,8X25
  • 132
    132BA0610 BOLT-FLANGED-SMALL,6X10
    BOLT-FLANGED-SMALL,6X10
  • 132A
    132BB0612 BOLT-FLANGED-SMALL,6X12
    BOLT-FLANGED-SMALL,6X12
  • 550
    550AA2015 PIN-COTTER,2.0X15
    PIN-COTTER,2.0X15
  • 92171
    92171-1424 CLAMP,DIA=15
    CLAMP,DIA=15
  • 92171A
    92171-1819 CLAMP,BRAKE HOSE
    CLAMP,BRAKE HOSE
  • 92171B
    92171-1826 CLAMP
    CLAMP
  • 92171C
    92171-1827 CLAMP
    CLAMP
  • 92171D
    92171-1828 CLAMP
    CLAMP
  • 92173
    92173-0138 CLAMP,BRAKE HOSE
    CLAMP,BRAKE HOSE
  • 92173A
    92173-0184 CLAMP, REAR BRAKE HOSE
    CLAMP, REAR BRAKE HOSE
