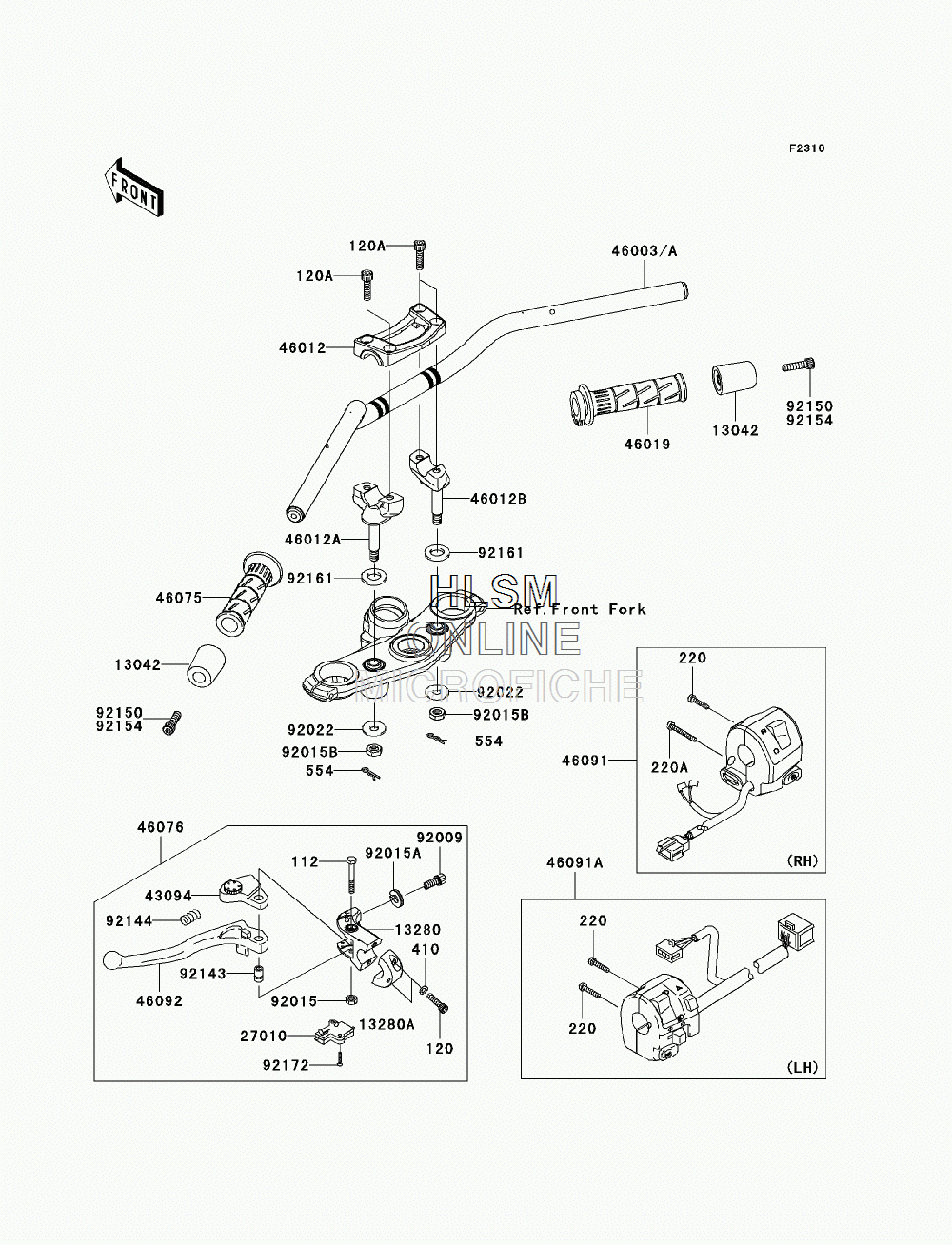

HANDLEBAR для Kawasaki NINJA 650R (EX650CAF) - 2010 года выпуска
-
№АртикулНазвание
-
112112AB0645 BOLT-UPSET, 6X45BOLT-UPSET, 6X45
-
120120CB0625 BOLT-SOCKET, 6X25BOLT-SOCKET, 6X25
-
120A120CC0830 BOLT-SOCKET, 8X30BOLT-SOCKET, 8X30
-
220220AB0525 SCREW-PAN-CROSS, 5X25SCREW-PAN-CROSS, 5X25
-
220A220AB0540 SCREW-PAN-CROSS, 5X40SCREW-PAN-CROSS, 5X40
-
410410AB0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
554554DB0800 PIN-SNAPPIN-SNAP
-
1304213042-5002 WEIGHT, HANDLEWEIGHT, HANDLE
-
1328013280-0306 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
13280A13280-0319 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
2701027010-1094 SWITCH, CLUTCH (BLACK)SWITCH, CLUTCH (BLACK)
-
4309443094-1053 ADJUSTER, CLUTCH LEVERADJUSTER, CLUTCH LEVER
-
4600346003-0152-26M HANDLE (F.M.GRAY)HANDLE (F.M.GRAY)
-
4601246012-0059 HOLDER-HANDLE, UPPHOLDER-HANDLE, UPP
-
46012A46012-0060 HOLDER-HANDLE, LWR (LEFT)HOLDER-HANDLE, LWR (LEFT)
-
46012B46012-0061 HOLDER-HANDLE, LWR (RIGHT)HOLDER-HANDLE, LWR (RIGHT)
-
4601946019-0001 GRIP-ASSY, THROTTLEGRIP-ASSY, THROTTLE
-
4607546075-1144 GRIP (LEFT)GRIP (LEFT)
-
4607646076-0053 LEVER-ASSY-GRIP, CLUTCHLEVER-ASSY-GRIP, CLUTCH
-
4609146091-0159 HOUSING-ASSY-CONTROL (RIGHT)HOUSING-ASSY-CONTROL (RIGHT)
-
46091A46091-0161 HOUSING-ASSY-CONTROL (LEFT)HOUSING-ASSY-CONTROL (LEFT)
-
4609246092-0031 LEVER-GRIP, CLUTCHLEVER-GRIP, CLUTCH
-
9200992009-1134 SCREW, CABLE ADJUST, 8MM (BLACK)SCREW, CABLE ADJUST, 8MM (BLACK)
-
9201592015-1191 NUT, LOCK, 6MM (BLACK)NUT, LOCK, 6MM (BLACK)
-
92015A92015-1197 NUT, CABLE ADJUST LOCK, 8MM, BLKNUT, CABLE ADJUST LOCK, 8MM, BLK
-
92015B92015-1962 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9202292022-1088 WASHER, 10.2X28X2WASHER, 10.2X28X2
-
9214392143-1379 COLLARCOLLAR
-
9214492144-1467 SPRINGSPRING
-
9215092150-1604 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9216192161-0037 DAMPERDAMPER
-
9217292172-0183 SCREW, 3X16SCREW, 3X16
