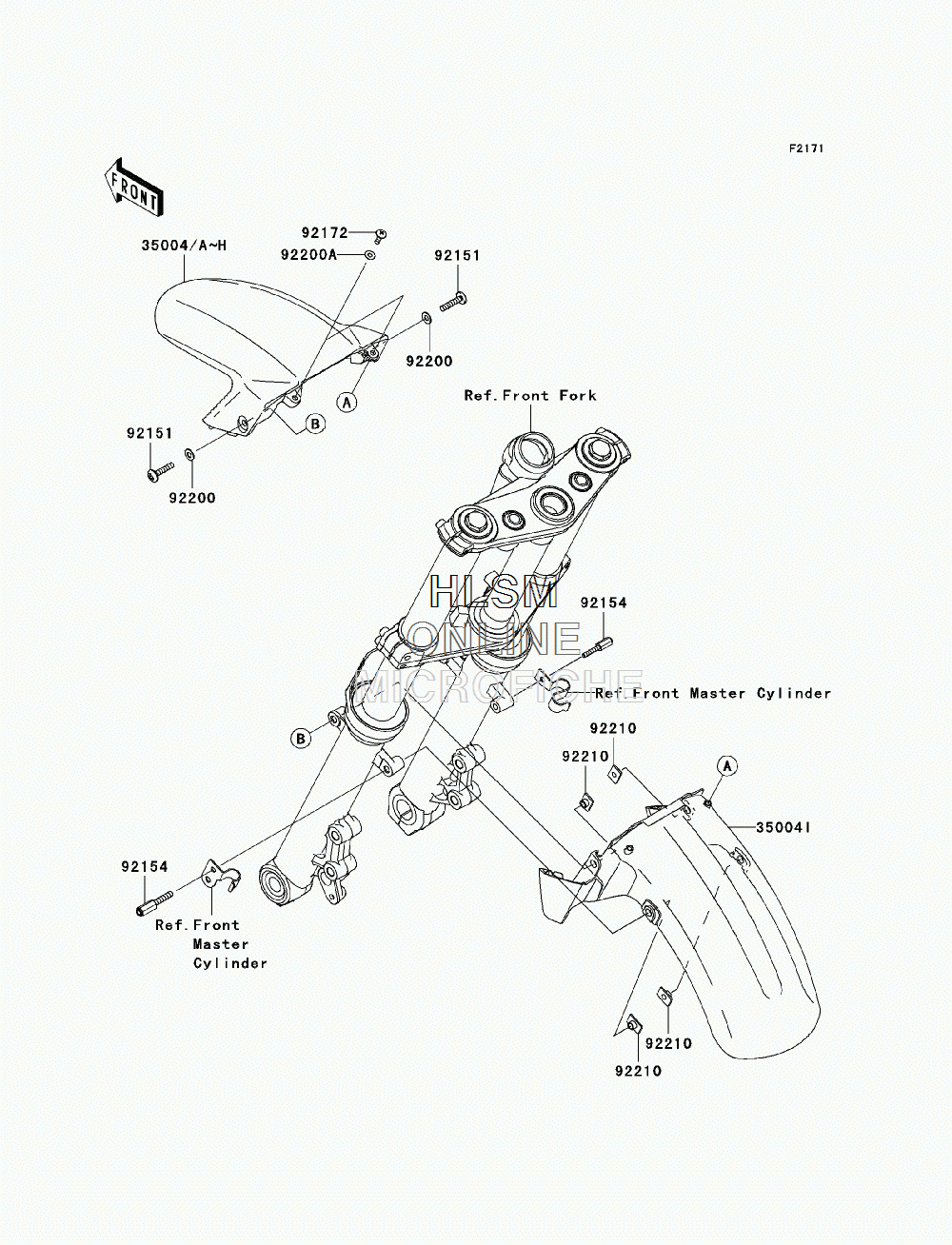

FENDER - FRONT для Kawasaki NINJA 650R (EX650CAF) - 2010 года выпуска
-
№АртикулНазвание
-
3500435004-0110-H8 FENDER-FRONT, FRONT (EBONY) (FOR H8)FENDER-FRONT, FRONT (EBONY) (FOR H8)
-
35004C35004-0110-15P FENDER-FRONT, FRONT (C.L.GREEN) (FOR 15P)FENDER-FRONT, FRONT (C.L.GREEN) (FOR 15P)
-
35004F35004-0110-15W FENDER-FRONT, FRONT (M.I.BLUE) (USA ONLY) (FOR 15W)FENDER-FRONT, FRONT (M.I.BLUE) (USA ONLY) (FOR 15W)
-
35004I35004-0111 FENDER-FRONT, REARFENDER-FRONT, REAR
-
9215192151-1605 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
9215492154-0305 BOLTBOLT
-
9217292172-0427 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
9220092200-1388 WASHER, 6.5X14X1WASHER, 6.5X14X1
-
92200A92200-1480 WASHER, NYLON, 5.3X11.5X0.5WASHER, NYLON, 5.3X11.5X0.5
-
9221092210-1352 NUT, PLATE, 6MMNUT, PLATE, 6MM
