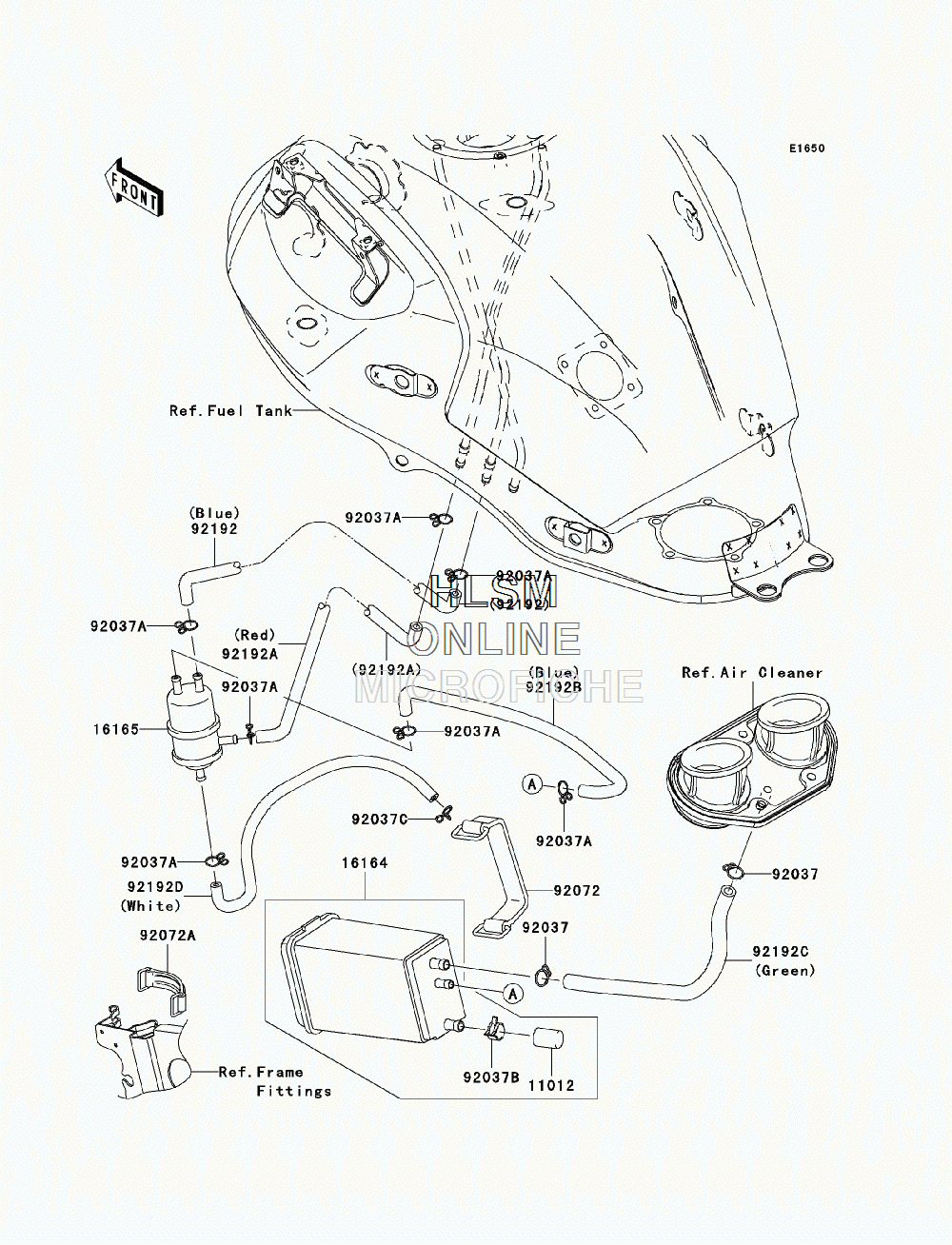

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki VERSYS (KLE650A9F) - 2009 года выпуска
-
№АртикулНазвание
-
1101211012-1388 CAP, CANISTERCAP, CANISTER
-
1616416164-1054 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1512 CLAMP, CANISTERCLAMP, CANISTER
-
92037C92037-1712 CLAMPCLAMP
-
9207292072-1384 BANDBAND
-
92072A92072-1419 BAND, L=50BAND, L=50
-
9219292192-0586 TUBE, SEPARATOR-TANK, BLUETUBE, SEPARATOR-TANK, BLUE
-
92192A92192-0717 TUBE, TANK-SEPARATOR, REDTUBE, TANK-SEPARATOR, RED
-
92192B92192-0719 TUBE, CANISTER-SEPARATOR, BLUETUBE, CANISTER-SEPARATOR, BLUE
-
92192C92192-0720 TUBE, A/C-CANISTER, GREENTUBE, A/C-CANISTER, GREEN
-
92192D92192-0721 TUBE, SEPARATOR-THROBO, WHITETUBE, SEPARATOR-THROBO, WHITE
