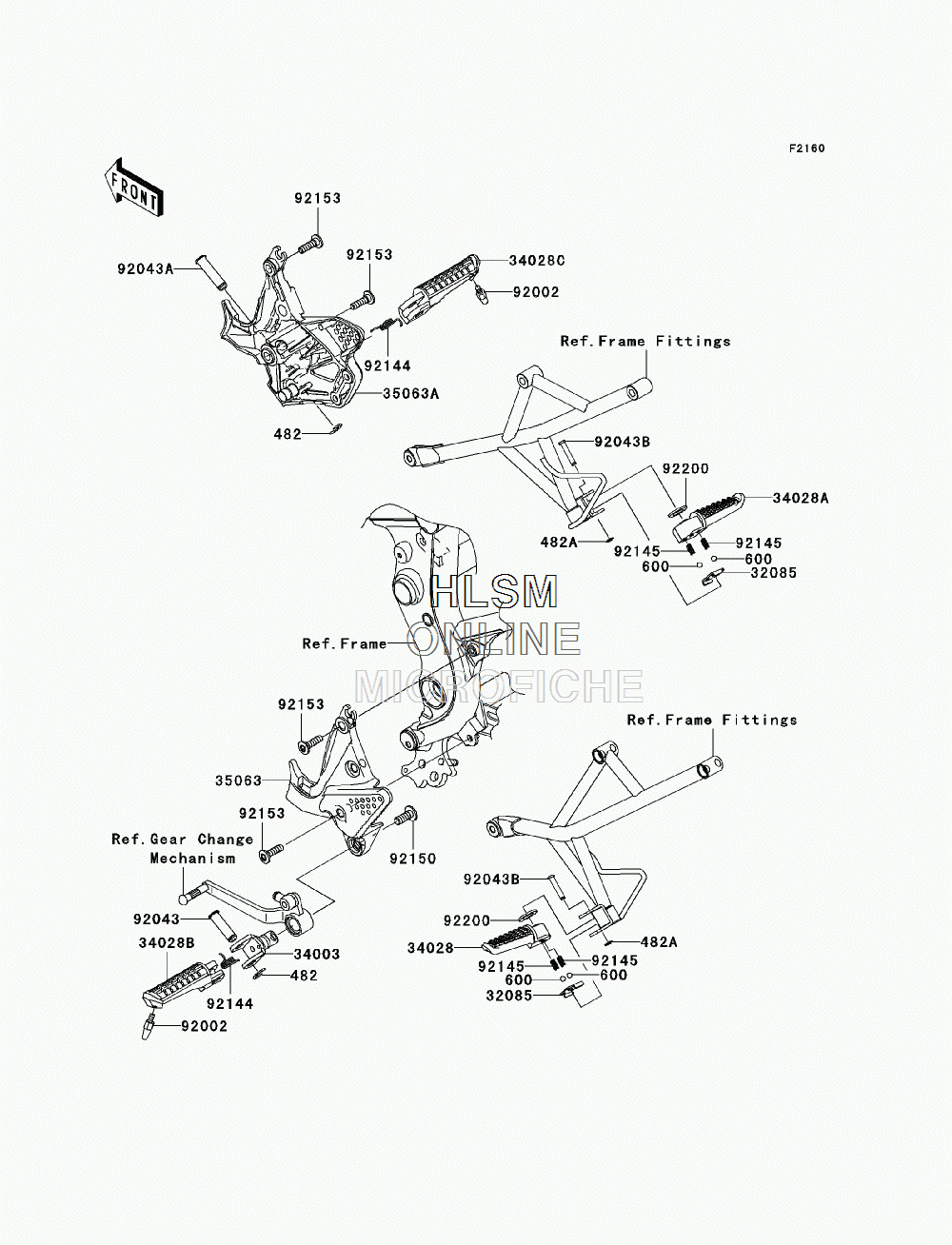

FOOTRESTS для Kawasaki VERSYS (KLE650A9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 482
    482EA0100 CIRCLIP-TYPE-E, 10MM
    CIRCLIP-TYPE-E, 10MM
  • 482A
    482EA5000 CIRCLIP-TYPE-E
    CIRCLIP-TYPE-E
  • 600
    600A0800 BALL-STEEL, 1/4"
    BALL-STEEL, 1/4"
  • 32085
    32085-0047 STOPPER, REAR STEP
    STOPPER, REAR STEP
  • 34003
    34003-1474 HOLDER-STEP
    HOLDER-STEP
  • 34028
    34028-0004 STEP, REAR, LEFT HAND
    STEP, REAR, LEFT HAND
  • 34028A
    34028-0005 STEP, REAR, RIGHT HAND
    STEP, REAR, RIGHT HAND
  • 34028B
    34028-1334 STEP, FRONT, LEFT HAND
    STEP, FRONT, LEFT HAND
  • 34028C
    34028-1335 STEP, FRONT, RIGHT HAND
    STEP, FRONT, RIGHT HAND
  • 35063
    35063-0310-458 STAY, STEP, FRONT, LEFT HAND, P. SILVER
    STAY, STEP, FRONT, LEFT HAND, P. SILVER
  • 35063A
    35063-0401-458 STAY, STEP, FRONT, RIGHT HAND, P. SILVER
    STAY, STEP, FRONT, RIGHT HAND, P. SILVER
  • 92002
    92002-1742 BOLT, BANK SENSOR
    BOLT, BANK SENSOR
  • 92043
    92043-0150 PIN, 12X37
    PIN, 12X37
  • 92043A
    92043-1145 PIN, 12X42.5
    PIN, 12X42.5
  • 92043B
    92043-1271 PIN, 6X34
    PIN, 6X34
  • 92144
    92144-1567 SPRING, STEP RETURN
    SPRING, STEP RETURN
  • 92145
    92145-1319 SPRING
    SPRING
  • 92150
    92150-1268 BOLT, SOCKET, 10X25
    BOLT, SOCKET, 10X25
  • 92153
    92153-1630 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92200
    92200-0043 WASHER, 16X26X2.3
    WASHER, 16X26X2.3
