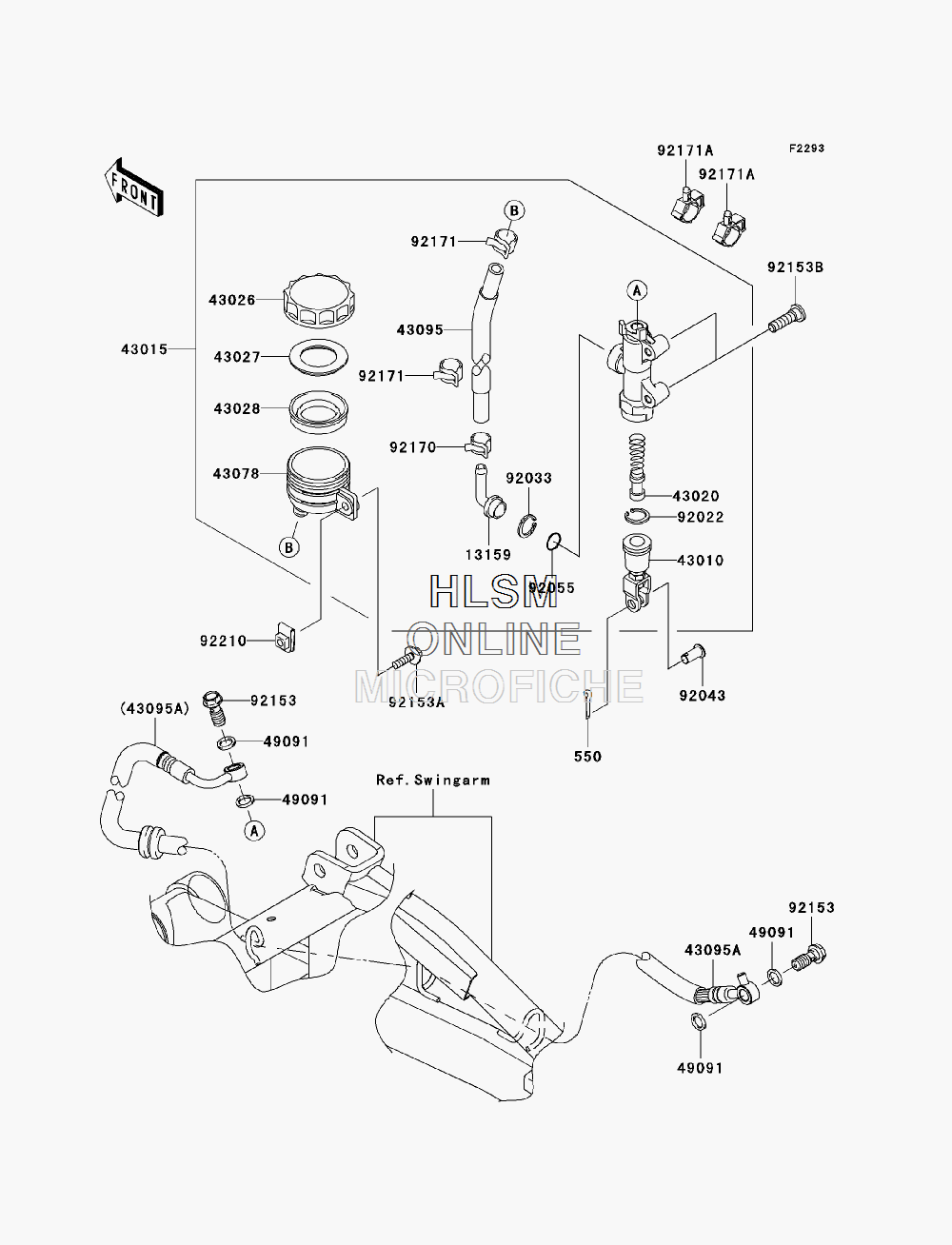

BRAKE - MASTER CYLINDER - REAR для Kawasaki ER-6N (ER650C9F) - 2009 года выпуска`
-
№АртикулНазвание
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
1315913159-1056 CONNECTORCONNECTOR
-
4301043010-1062 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0122 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1051 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4307843078-1082 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-0193 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
43095A43095-0413 HOSE-BRAKE, REAR, L=712HOSE-BRAKE, REAR, L=712
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9202292022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9204392043-0182 PINPIN
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92153A92153-0725 BOLT, 6X22BOLT, 6X22
-
92153B92153-1624 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
9217192171-0463 CLAMP, HOSECLAMP, HOSE
-
92171A92171-0955 CLAMPCLAMP
-
9221092210-0474 NUT, 6MMNUT, 6MM
