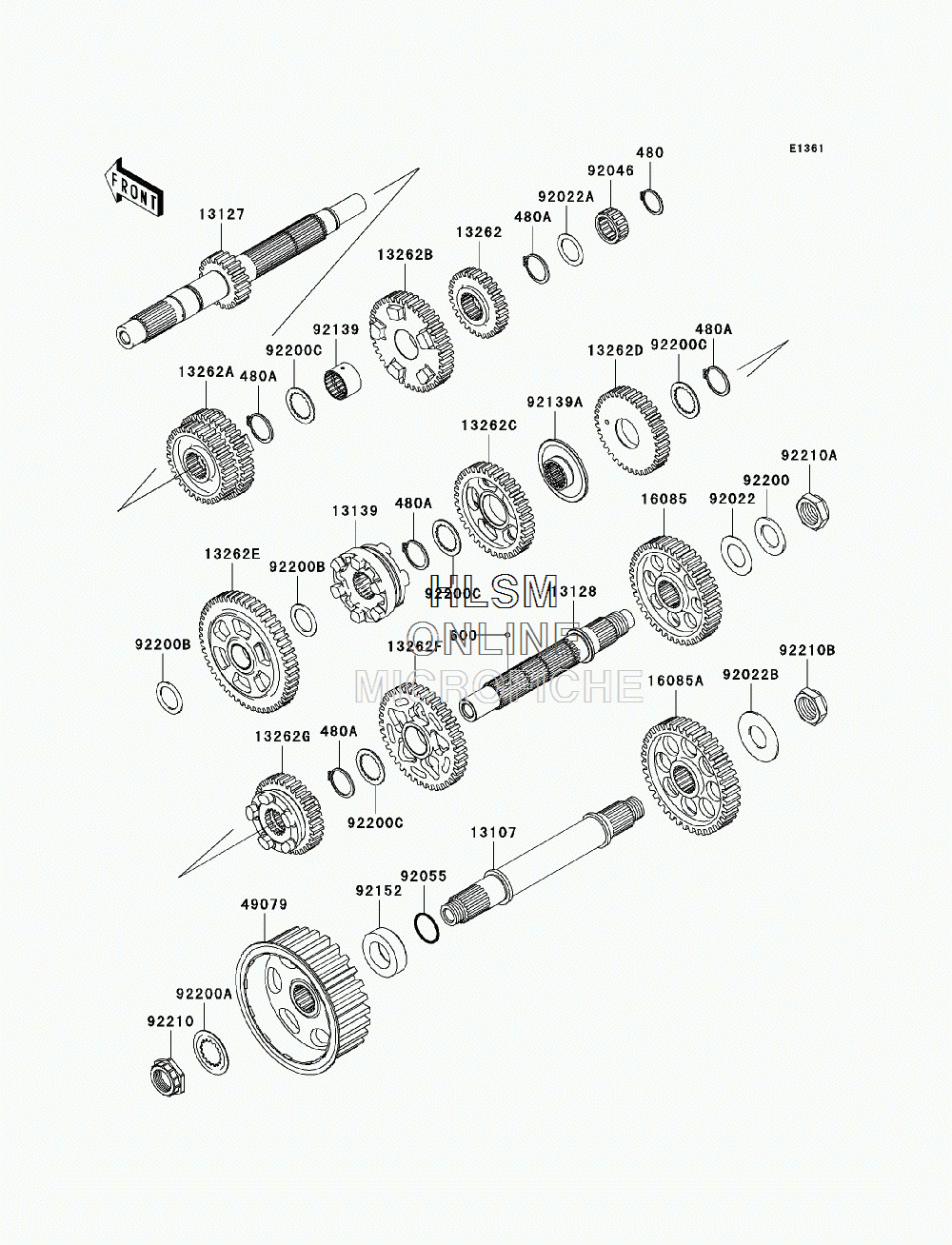

TRANSMISSION для Kawasaki VULCAN 2000 CLASSIC LT (VN2000J8F) - 2008 года выпуска
-
№АртикулНазвание
-
480480J2500 CIRCLIP-TYPE-C,25MMCIRCLIP-TYPE-C,25MM
-
480A480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL-STEEL,5/32"BALL-STEEL,5/32"
-
1310713107-0108 SHAFT,PULLEYSHAFT,PULLEY
-
1312713127-0003 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1312813128-0013 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1313913139-0001 SHIFTER,OUTPUTSHIFTER,OUTPUT
-
1326213262-0004 GEAR,INPUT 2ND,27TGEAR,INPUT 2ND,27T
-
13262A13262-0005 GEAR,INPUT 3RD & 4TH,32T & 33TGEAR,INPUT 3RD & 4TH,32T & 33T
-
13262B13262-0006 GEAR,INPUT 5TH,37TGEAR,INPUT 5TH,37T
-
13262C13262-0008 GEAR,OUTPUT 3RD,39TGEAR,OUTPUT 3RD,39T
-
13262D13262-0009 GEAR,OUTPUT 4TH,31TGEAR,OUTPUT 4TH,31T
-
13262E13262-0010 GEAR,OUTPUT LOW,51TGEAR,OUTPUT LOW,51T
-
13262F13262-0011 GEAR,OUTPUT 2ND,44TGEAR,OUTPUT 2ND,44T
-
13262G13262-0012 GEAR,OUTPUT 5TH,27TGEAR,OUTPUT 5TH,27T
-
1608516085-0004 GEAR,TRANSFER,41TGEAR,TRANSFER,41T
-
16085A16085-0032 GEAR,TRANSFER,50TGEAR,TRANSFER,50T
-
4907949079-0014 PULLEY-BELTPULLEY-BELT
-
9202292022-1390 WASHER,25.3X44X1WASHER,25.3X44X1
-
92022A92022-1855 WASHER,25.5X36X1.0WASHER,25.5X36X1.0
-
92022B92022-1857 WASHER,25.3X56X2.0WASHER,25.3X56X2.0
-
9204692046-0007 BEARING-NEEDLE,KT 253515E02 C3BEARING-NEEDLE,KT 253515E02 C3
-
9205592055-0006 RING-O,29.7X2.4RING-O,29.7X2.4
-
9213992139-0006 BUSHINGBUSHING
-
92139A92139-0007 BUSHING,OUTPUT 3RD-4TH GEARBUSHING,OUTPUT 3RD-4TH GEAR
-
9215292152-0021 COLLAR,30X50X16COLLAR,30X50X16
-
9220092200-0016 WASHER,25.5X42X2.6WASHER,25.5X42X2.6
-
92200A92200-0017 WASHER,31X50X1WASHER,31X50X1
-
92200B92200-0116 WASHER,25.5X36X1.6WASHER,25.5X36X1.6
-
92200C92200-1381 WASHER,30.3X40X1.5WASHER,30.3X40X1.5
-
9221092210-0060 NUT,25MMNUT,25MM
-
92210A92210-0136 NUT, LEFT HANDED,25MMNUT, LEFT HANDED,25MM
-
92210B92210-0138 NUT,25MMNUT,25MM
