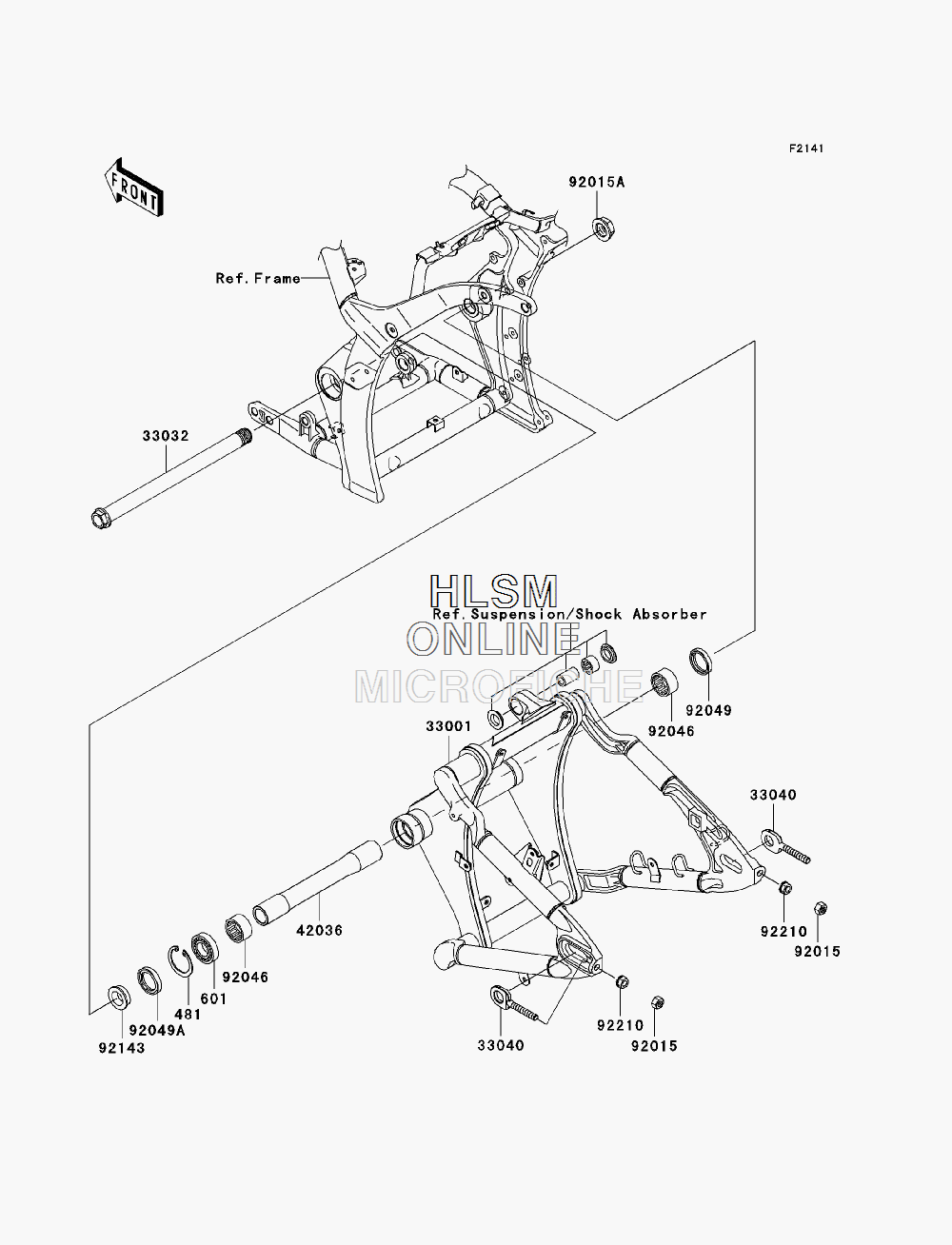

SUSPENSION - SWINGARM для Kawasaki VULCAN 2000 CLASSIC LT (VN2000J8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 481
    481J4700 CIRCLIP-TYPE-C,47MM
    CIRCLIP-TYPE-C,47MM
  • 601
    601B6005UU BEARING-BALL,#6005UU
    BEARING-BALL,#6005UU
  • 33001
    33001-0147-18R ARM-COMP-SWING,F.S.BLACK
    ARM-COMP-SWING,F.S.BLACK
  • 33032
    33032-0004 SHAFT-SWING ARM
    SHAFT-SWING ARM
  • 33040
    33040-0005 ADJUSTER-CHAIN
    ADJUSTER-CHAIN
  • 42036
    42036-0007 SLEEVE,SWING ARM,L=266.5
    SLEEVE,SWING ARM,L=266.5
  • 92015
    92015-1494 NUT,LOCK,10MM
    NUT,LOCK,10MM
  • 92015A
    92015-1845 NUT,FLANGED,25MM
    NUT,FLANGED,25MM
  • 92046
    92046-1205 BEARING-NEEDLE,BM3520
    BEARING-NEEDLE,BM3520
  • 92049
    92049-0017 SEAL-OIL,KC35X45X6
    SEAL-OIL,KC35X45X6
  • 92049A
    92049-1381 SEAL-OIL,MHA 35X47X5
    SEAL-OIL,MHA 35X47X5
  • 92143
    92143-1481 COLLAR,SWING ARM,L=12.5
    COLLAR,SWING ARM,L=12.5
  • 92210
    92210-0349 NUT,FLANGED,10MM
    NUT,FLANGED,10MM
