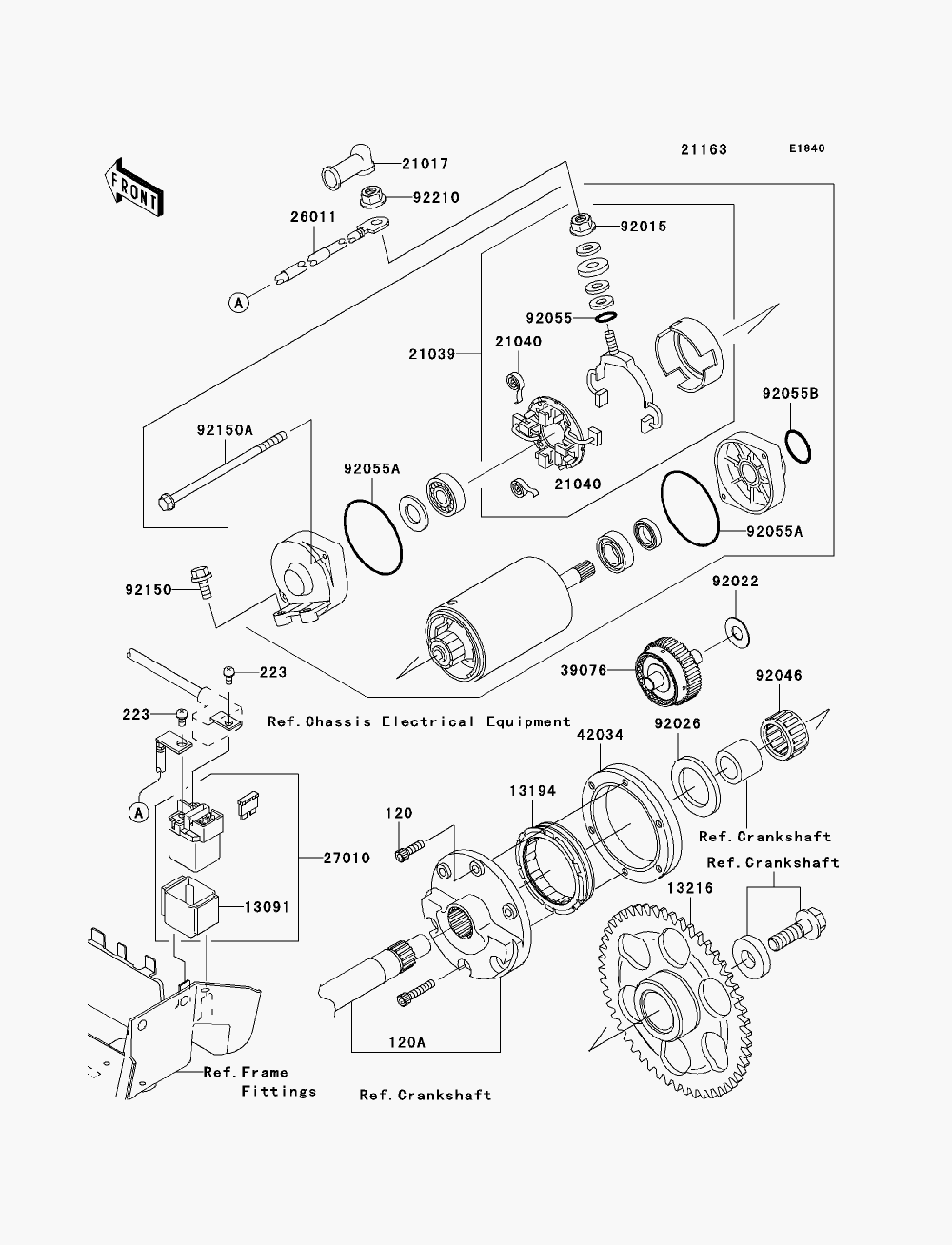

STARTER MOTOR для Kawasaki VULCAN 1600 MEAN STREAK (VN1600B8FA) - 2008 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0620 BOLT-SOCKET, 6X20
    BOLT-SOCKET, 6X20
  • 120A
    120S0630 BOLT-SOCKET, 6X30
    BOLT-SOCKET, 6X30
  • 223
    223D0510 SCREW-PAN-WS-CROS, 5X10
    SCREW-PAN-WS-CROS, 5X10
  • 13091
    13091-1884 HOLDER, MAGNETIC SWITCH
    HOLDER, MAGNETIC SWITCH
  • 13194
    13194-1088 CLUTCH-ONEWAY
    CLUTCH-ONEWAY
  • 13216
    13216-0019 GEAR-COMP, FREE WHEEL
    GEAR-COMP, FREE WHEEL
  • 21017
    21017-017 GROMMET, STARTER TERMINAL
    GROMMET, STARTER TERMINAL
  • 21039
    21039-1060 BRUSH, CARBON
    BRUSH, CARBON
  • 21040
    21040-1055 SPRING-BRUSH
    SPRING-BRUSH
  • 21163
    21163-1271 STARTER-ELECTRIC
    STARTER-ELECTRIC
  • 26011
    26011-0081 WIRE-LEAD
    WIRE-LEAD
  • 27010
    27010-1327 SWITCH, MAGNETIC
    SWITCH, MAGNETIC
  • 39076
    39076-0003 LIMITER, STARTER TORQUE
    LIMITER, STARTER TORQUE
  • 42034
    42034-1093 COUPLING
    COUPLING
  • 92015
    92015-1476 NUT, STARTER MOTOR
    NUT, STARTER MOTOR
  • 92022
    92022-1852 WASHER, 12X27.5X1.0
    WASHER, 12X27.5X1.0
  • 92026
    92026-1490 SPACER, 31X49.5X1.2
    SPACER, 31X49.5X1.2
  • 92046
    92046-1171 BEARING-NEEDLE, K30X35X20
    BEARING-NEEDLE, K30X35X20
  • 92055
    92055-1370 RING-O, 4.5X2.0
    RING-O, 4.5X2.0
  • 92055A
    92055-1381 RING-O, STARTER MOTOR
    RING-O, STARTER MOTOR
  • 92055B
    92055-1393 RING-O, 37MM
    RING-O, 37MM
  • 92150
    92150-1779 BOLT, FLANGED-SMALL, 6X25
    BOLT, FLANGED-SMALL, 6X25
  • 92150A
    92150-1913 BOLT, STARTER MOTOR
    BOLT, STARTER MOTOR
  • 92210
    92210-0188 NUT, 6MM
    NUT, 6MM
