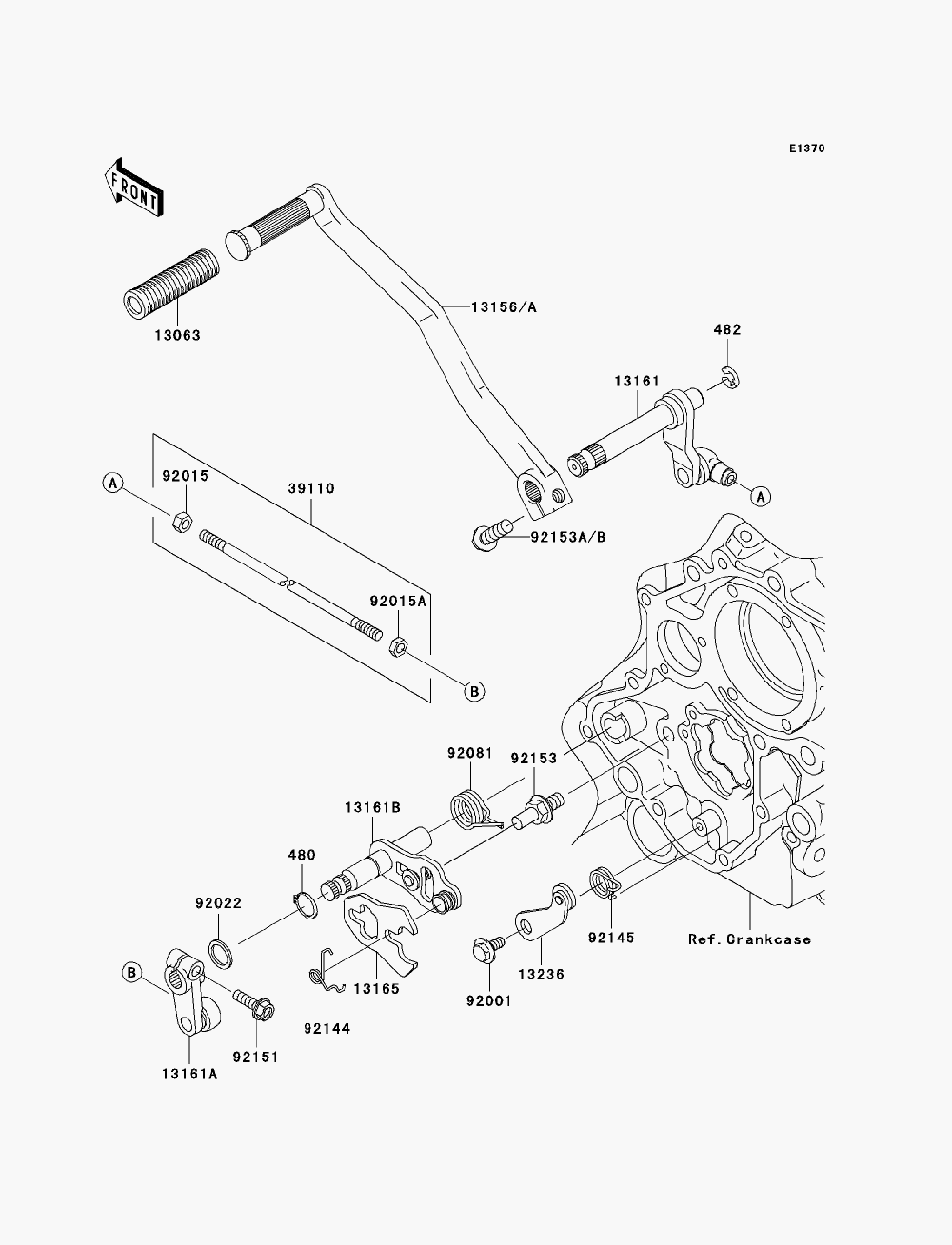

GEAR CHANGE MECHANISM для Kawasaki VULCAN 1600 MEAN STREAK (VN1600B8FA) - 2008 года выпуска

  • №
    Артикул
    Название
  • 480
    480J1300 CIRCLIP-TYPE-C, 13MM
    CIRCLIP-TYPE-C, 13MM
  • 482
    482L0100 CIRCLIP-TYPE-E, 10MM
    CIRCLIP-TYPE-E, 10MM
  • 13063
    13063-002 DAMPER, PEDAL
    DAMPER, PEDAL
  • 13156A
    13156-0089 LEVER-CHANGE
    LEVER-CHANGE
  • 13161
    13161-0006 LEVER-COMP-CHANGE SHAFT
    LEVER-COMP-CHANGE SHAFT
  • 13161A
    13161-1253 LEVER-COMP-CHANGE SHAFT
    LEVER-COMP-CHANGE SHAFT
  • 13161B
    13161-1254 LEVER-COMP-CHANGE SHAFT
    LEVER-COMP-CHANGE SHAFT
  • 13165
    13165-1120 PAWL
    PAWL
  • 13236
    13236-1126 LEVER-COMP, POSITION
    LEVER-COMP, POSITION
  • 39110
    39110-1119 ROD-ASSY-TIE
    ROD-ASSY-TIE
  • 92001
    92001-1715 BOLT, FLANGED, 6X14
    BOLT, FLANGED, 6X14
  • 92015
    92015-1443 NUT, 6MM
    NUT, 6MM
  • 92015A
    92015-1444 NUT, LEFT HANDED, 6MM
    NUT, LEFT HANDED, 6MM
  • 92022
    92022-1224 WASHER, 13.2X20X0.5
    WASHER, 13.2X20X0.5
  • 92081
    92081-1869 SPRING, CHANGE PEDAL RETURN
    SPRING, CHANGE PEDAL RETURN
  • 92144
    92144-1029 SPRING
    SPRING
  • 92145
    92145-0008 SPRING, RETURN
    SPRING, RETURN
  • 92151
    92151-1226 BOLT, FLANGED, 6X20
    BOLT, FLANGED, 6X20
  • 92153
    92153-1076 BOLT, RETURN SPRING
    BOLT, RETURN SPRING
  • 92153B
    92153-1754 BOLT, FLANGED, 8X25
    BOLT, FLANGED, 8X25
