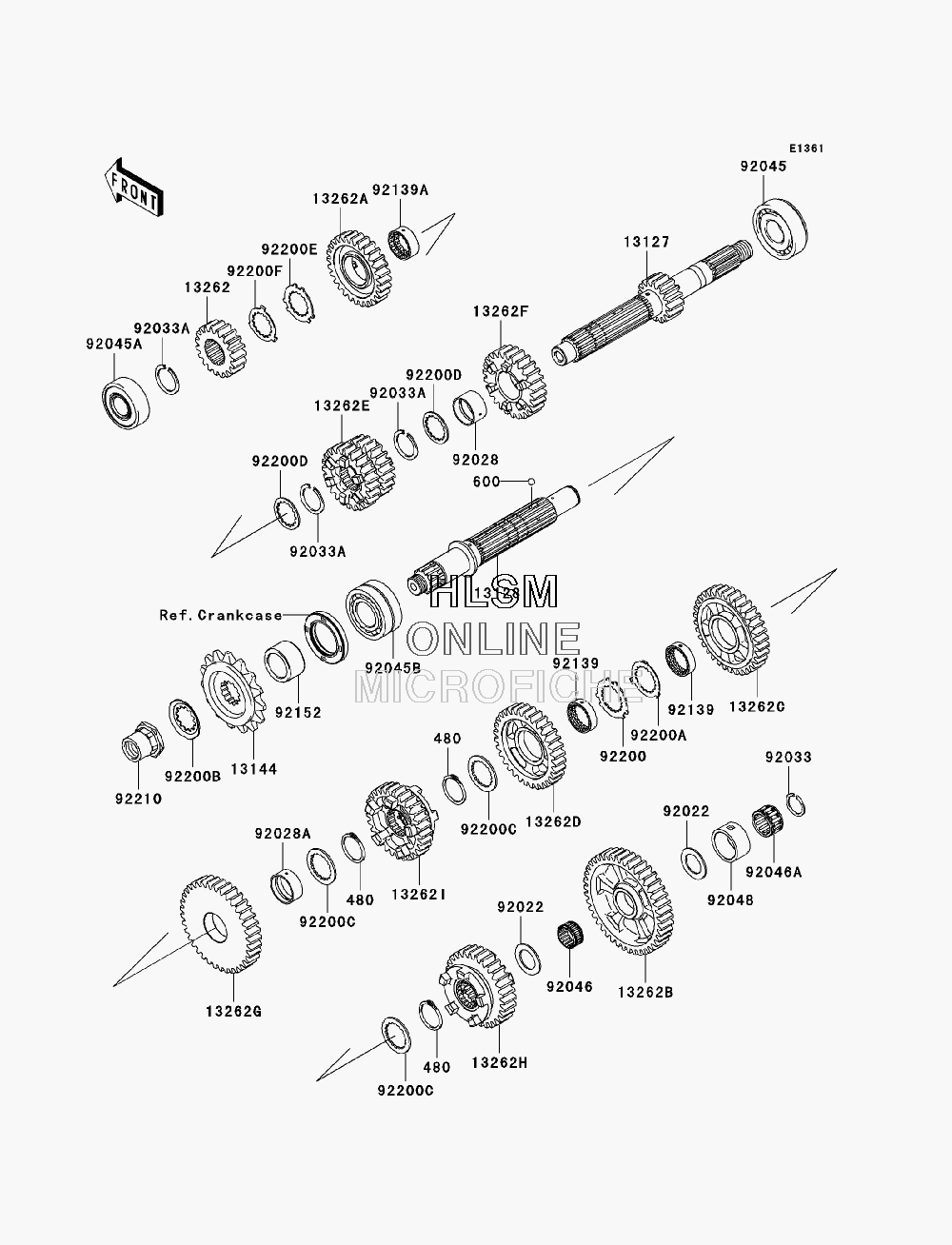

TRANSMISSION для Kawasaki NINJA ZX-14 (ZX1400C8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2900 CIRCLIP
    CIRCLIP
  • 600
    600A0500 BALL-STEEL, 5/32"
    BALL-STEEL, 5/32"
  • 13127
    13127-0036 SHAFT-TRANSMISSION INPUT, 16T
    SHAFT-TRANSMISSION INPUT, 16T
  • 13128
    13128-0043 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13144
    13144-0040 SPROCKET-OUTPUT, 17T
    SPROCKET-OUTPUT, 17T
  • 13262
    13262-0303 GEAR, INPUT 2ND, 19T
    GEAR, INPUT 2ND, 19T
  • 13262A
    13262-0306 GEAR, INPUT TOP, 28T
    GEAR, INPUT TOP, 28T
  • 13262B
    13262-0307 GEAR, OUTPUT LOW, 42T
    GEAR, OUTPUT LOW, 42T
  • 13262C
    13262-0309 GEAR, OUTPUT 3RD, 34T
    GEAR, OUTPUT 3RD, 34T
  • 13262D
    13262-0310 GEAR, OUTPUT 4TH, 32T
    GEAR, OUTPUT 4TH, 32T
  • 13262E
    13262-0586 GEAR, INPUT 3RD & 4TH, 22T & 24T
    GEAR, INPUT 3RD & 4TH, 22T & 24T
  • 13262F
    13262-0587 GEAR, INPUT 5TH, 26T
    GEAR, INPUT 5TH, 26T
  • 13262G
    13262-0592 GEAR, OUTPUT 2ND, 37T
    GEAR, OUTPUT 2ND, 37T
  • 13262H
    13262-0593 GEAR, OUTPUT 5TH, 30T
    GEAR, OUTPUT 5TH, 30T
  • 13262I
    13262-0594 GEAR, OUTPUT TOP, 29T
    GEAR, OUTPUT TOP, 29T
  • 92022
    92022-212 WASHER, 22.3X35X1.6
    WASHER, 22.3X35X1.6
  • 92028
    92028-1935 BUSHING
    BUSHING
  • 92028A
    92028-1937 BUSHING
    BUSHING
  • 92033
    92033-025 RING-SNAP, 20X25.5X1.2
    RING-SNAP, 20X25.5X1.2
  • 92033A
    92033-1249 RING-SNAP, T=1.5
    RING-SNAP, T=1.5
  • 92045
    92045-0047 BEARING-BALL, 830045-5SH2
    BEARING-BALL, 830045-5SH2
  • 92045A
    92045-0048 BEARING-BALL, DG2152RDDSH2
    BEARING-BALL, DG2152RDDSH2
  • 92045B
    92045-0049 BEARING-BALL, DAC2857NSSH6CS9
    BEARING-BALL, DAC2857NSSH6CS9
  • 92046
    92046-0018 BEARING-NEEDLE, K22X26X13
    BEARING-NEEDLE, K22X26X13
  • 92046A
    92046-1268 BEARING-NEEDLE, K22X30X16.8X2
    BEARING-NEEDLE, K22X30X16.8X2
  • 92048
    92048-0004 RACE
    RACE
  • 92139
    92139-0127 BUSHING, GEAR, 3RD & 4TH OUT
    BUSHING, GEAR, 3RD & 4TH OUT
  • 92139A
    92139-0128 BUSHING, GEAR, 6TH IN
    BUSHING, GEAR, 6TH IN
  • 92152
    92152-0326 COLLAR
    COLLAR
  • 92200
    92200-0255 WASHER, 27.5X43X1.5
    WASHER, 27.5X43X1.5
  • 92200A
    92200-0256 WASHER, 27.5X39.7X1.0
    WASHER, 27.5X39.7X1.0
  • 92200B
    92200-0260 WASHER, 23.9X45X1.0
    WASHER, 23.9X45X1.0
  • 92200C
    92200-1277 WASHER, TOOTHED, 28X40X2
    WASHER, TOOTHED, 28X40X2
  • 92200D
    92200-1340 WASHER, 25.5X35.5X1.5
    WASHER, 25.5X35.5X1.5
  • 92200E
    92200-1522 WASHER, 25.8X40.5X1.5
    WASHER, 25.8X40.5X1.5
  • 92200F
    92200-1523 WASHER, 25.2X37.0X1.0
    WASHER, 25.2X37.0X1.0
  • 92210
    92210-0237 NUT, 20X1.5
    NUT, 20X1.5
