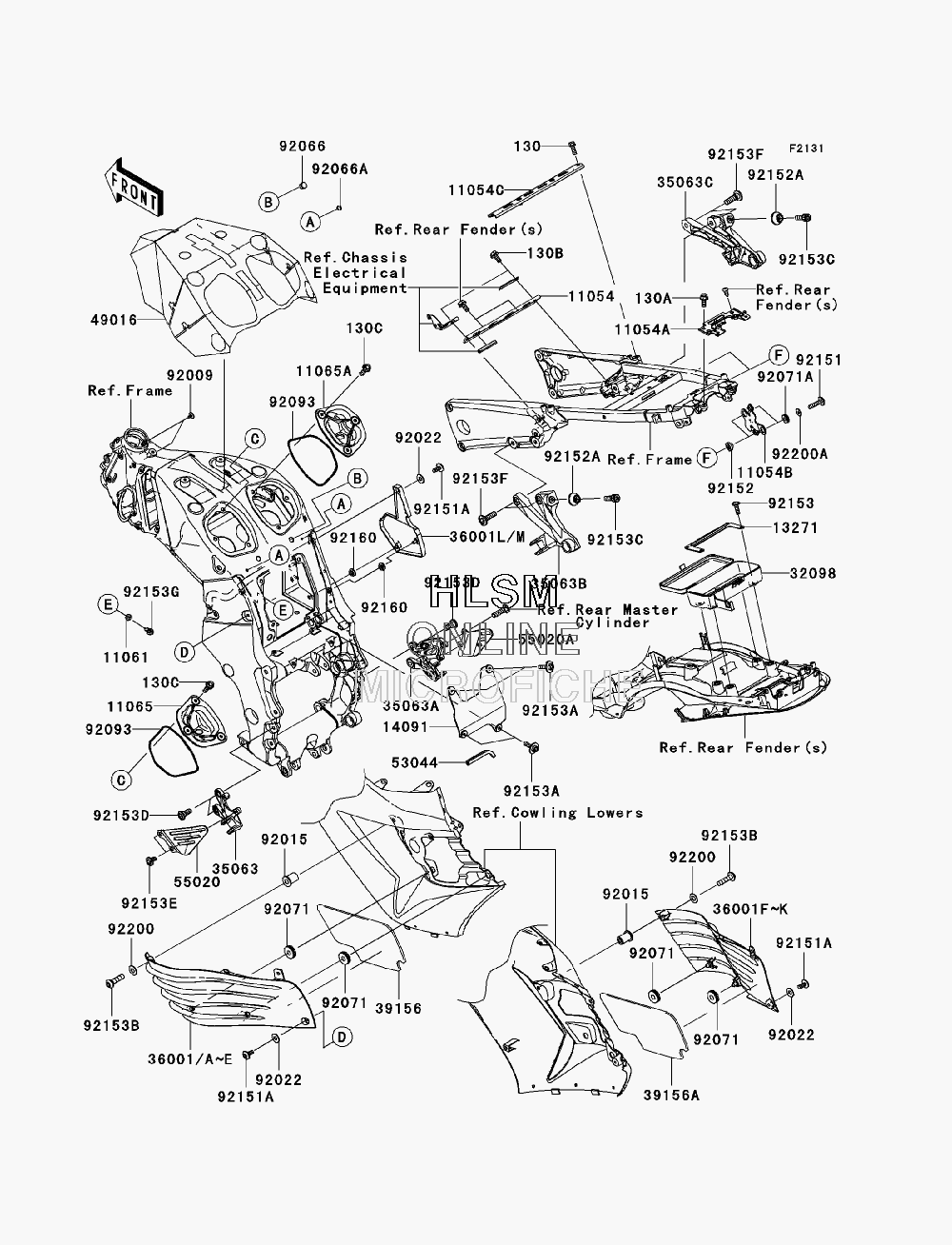

FRAME FITTINGS для Kawasaki NINJA ZX-14 (ZX1400C8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 11054
    11054-0225 BRACKET, REAR FENDER, FRONT
    BRACKET, REAR FENDER, FRONT
  • 11054A
    11054-0694 BRACKET, REAR FENDER & TAIL COVER
    BRACKET, REAR FENDER & TAIL COVER
  • 11054B
    11054-0718 BRACKET, REGULATOR
    BRACKET, REGULATOR
  • 11054C
    11054-1691 BRACKET, FUEL TANK, REAR
    BRACKET, FUEL TANK, REAR
  • 11061
    11061-0107 GASKET
    GASKET
  • 11065
    11065-0222 CAP, AIR CLEANER, LEFT HAND
    CAP, AIR CLEANER, LEFT HAND
  • 11065A
    11065-0223 CAP, AIR CLEANER, RIGHT HAND
    CAP, AIR CLEANER, RIGHT HAND
  • 13271
    13271-0779 PLATE, TOOL CASE
    PLATE, TOOL CASE
  • 14091
    14091-0534 COVER, BATTERY, BACK
    COVER, BATTERY, BACK
  • 32098
    32098-0009 CASE-TOOL
    CASE-TOOL
  • 35063
    35063-0234-18R STAY, FRONT, LEFT HAND, BLACK
    STAY, FRONT, LEFT HAND, BLACK
  • 35063A
    35063-0235-18R STAY, FRONT, RIGHT HAND, BLACK
    STAY, FRONT, RIGHT HAND, BLACK
  • 35063B
    35063-0353-18R STAY, REAR, LEFT HAND, BLACK
    STAY, REAR, LEFT HAND, BLACK
  • 35063C
    35063-0354-18R STAY, REAR, RIGHT HAND, BLACK
    STAY, REAR, RIGHT HAND, BLACK
  • 36001
    36001-0069-17M COVER-SIDE, KNEE GRIP, LEFT HAND, SILVER (USA ONLY) (FOR 17M)
    COVER-SIDE, KNEE GRIP, LEFT HAND, SILVER (USA ONLY) (FOR 17M)
  • 36001B
    36001-0069-19A COVER-SIDE, KNEE GRIP, LEFT HAND, BLUE (FOR 19A)
    COVER-SIDE, KNEE GRIP, LEFT HAND, BLUE (FOR 19A)
  • 36001F
    36001-0070-17M COVER-SIDE, KNEE GRIP, RIGHT HAND, SILVER (USA ONLY) (FOR 17M)
    COVER-SIDE, KNEE GRIP, RIGHT HAND, SILVER (USA ONLY) (FOR 17M)
  • 36001H
    36001-0070-19A COVER-SIDE, KNEE GRIP, RIGHT HAND, BLUE (FOR 19A)
    COVER-SIDE, KNEE GRIP, RIGHT HAND, BLUE (FOR 19A)
  • 36001M
    36001-0080-18T COVER-SIDE, BATTERY, RIGHT HAND, BLACK
    COVER-SIDE, BATTERY, RIGHT HAND, BLACK
  • 39156
    39156-0185 PAD, KNEE GRIP COVER, LEFT HAND
    PAD, KNEE GRIP COVER, LEFT HAND
  • 39156A
    39156-0186 PAD, KNEE GRIP COVER, RIGHT HAND
    PAD, KNEE GRIP COVER, RIGHT HAND
  • 49016
    49016-0034 COVER-SEAL
    COVER-SEAL
  • 53044
    53044-1200 TRIM, L=100
    TRIM, L=100
  • 55020
    55020-0211 GUARD, FRONT STEP, LEFT HAND
    GUARD, FRONT STEP, LEFT HAND
  • 55020A
    55020-0212 GUARD, FRONT STEP, RIGHT HAND
    GUARD, FRONT STEP, RIGHT HAND
  • 92009
    92009-1661 SCREW, 6X10
    SCREW, 6X10
  • 92015
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92022
    92022-1143 WASHER, 6.5X16X1
    WASHER, 6.5X16X1
  • 92066
    92066-1081 PLUG
    PLUG
  • 130
    130BA0612 BOLT-FLANGED, 6X12
    BOLT-FLANGED, 6X12
  • 130A
    130BA0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 130B
    130BA0618 BOLT-FLANGED, 6X18
    BOLT-FLANGED, 6X18
  • 130C
    130BA0622 BOLT-FLANGED, 6X22
    BOLT-FLANGED, 6X22
  • 92066A
    92066-1547 PLUG
    PLUG
  • 92071
    92071-056 GROMMET
    GROMMET
  • 92071A
    92071-1115 GROMMET
    GROMMET
  • 92093
    92093-1507 SEAL
    SEAL
  • 92151
    92151-1611 BOLT, SOCKET, 6X25
    BOLT, SOCKET, 6X25
  • 92151A
    92151-1654 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92152
    92152-0470 COLLAR
    COLLAR
  • 92152A
    92152-0668 COLLAR
    COLLAR
  • 92153
    92153-0478 BOLT, 6X18
    BOLT, 6X18
  • 92153A
    92153-0684 BOLT, 6X16
    BOLT, 6X16
  • 92153B
    92153-1244 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92153C
    92153-1522 BOLT, SOCKET, 10X23
    BOLT, SOCKET, 10X23
  • 92153D
    92153-1621 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 92153E
    92153-1622 BOLT, 6MM
    BOLT, 6MM
  • 92153F
    92153-1630 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92153G
    92153-1676 BOLT, FLANGED, 6X14
    BOLT, FLANGED, 6X14
  • 92160
    92160-1613 DAMPER
    DAMPER
  • 92200
    92200-0006 WASHER, NYLONE, 5.3X11.5X0.5
    WASHER, NYLONE, 5.3X11.5X0.5
  • 92200A
    92200-0283 WASHER, 6.5X20X1.6
    WASHER, 6.5X20X1.6
