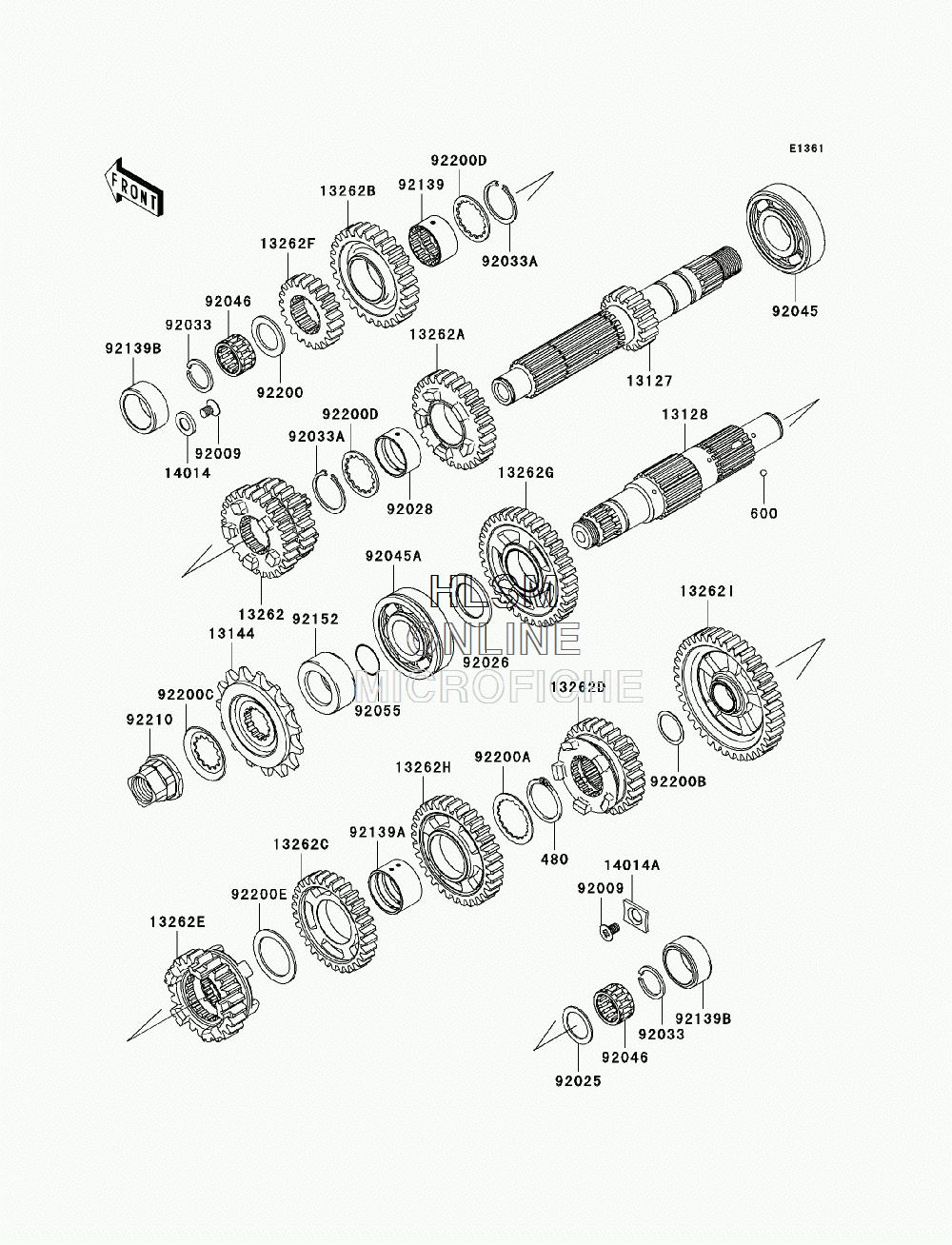

TRANSMISSION для Kawasaki NINJA 650R (EX650A8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2900 CIRCLIP
    CIRCLIP
  • 600
    600A0500 BALL-STEEL, 5/32"
    BALL-STEEL, 5/32"
  • 13127
    13127-0028 SHAFT-TRANSMISSION INPUT, 16T
    SHAFT-TRANSMISSION INPUT, 16T
  • 13128
    13128-0020 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13144
    13144-0024 SPROCKET-OUTPUT, 15T, #520
    SPROCKET-OUTPUT, 15T, #520
  • 13262
    13262-0245 GEAR, INPUT 3RD & 4TH, 24T & 27T
    GEAR, INPUT 3RD & 4TH, 24T & 27T
  • 13262A
    13262-0246 GEAR, INPUT 5TH, 29T
    GEAR, INPUT 5TH, 29T
  • 13262B
    13262-0247 GEAR, INPUT TOP, 27T
    GEAR, INPUT TOP, 27T
  • 13262C
    13262-0251 GEAR, OUTPUT 4TH, 30T
    GEAR, OUTPUT 4TH, 30T
  • 13262D
    13262-0252 GEAR, OUTPUT 5TH, 28T
    GEAR, OUTPUT 5TH, 28T
  • 13262E
    13262-0253 GEAR, OUTPUT TOP, 23T
    GEAR, OUTPUT TOP, 23T
  • 13262F
    13262-0335 GEAR, INPUT 2ND, 21T
    GEAR, INPUT 2ND, 21T
  • 13262G
    13262-0337 GEAR, OUTPUT 2ND, 36T
    GEAR, OUTPUT 2ND, 36T
  • 13262H
    13262-0338 GEAR, OUTPUT 3RD, 32T
    GEAR, OUTPUT 3RD, 32T
  • 13262I
    13262-0346 GEAR, OUTPUT LOW, 39T
    GEAR, OUTPUT LOW, 39T
  • 14014
    14014-0019 PLATE-POSITION, 9.5X17X2.3
    PLATE-POSITION, 9.5X17X2.3
  • 14014A
    14014-0020 PLATE-POSITION, RIGHT HAND
    PLATE-POSITION, RIGHT HAND
  • 92009
    92009-1375 SCREW, 6X10
    SCREW, 6X10
  • 92025
    92025-1455 SHIM, 20.3X28X1.1
    SHIM, 20.3X28X1.1
  • 92026
    92026-1529 SPACER, 25.3X39X2.0
    SPACER, 25.3X39X2.0
  • 92028
    92028-1449 BUSHING, INPUT GEAR
    BUSHING, INPUT GEAR
  • 92033
    92033-015 RING-SNAP, 20MM
    RING-SNAP, 20MM
  • 92033A
    92033-1037 RING-SNAP, 25.9X30.6X1.2
    RING-SNAP, 25.9X30.6X1.2
  • 92045
    92045-0042 BEARING-BALL, 25X62X17
    BEARING-BALL, 25X62X17
  • 92045A
    92045-1224 BEARING-BALL, 6305N2SH2
    BEARING-BALL, 6305N2SH2
  • 92046
    92046-1185 BEARING-NEEDLE, KMJ20X26X13.8X1
    BEARING-NEEDLE, KMJ20X26X13.8X1
  • 92055
    92055-1293 O-RING, 21.5X1.5
    O-RING, 21.5X1.5
  • 92139
    92139-0107 BUSHING, INPUT TOP GEAR
    BUSHING, INPUT TOP GEAR
  • 92139A
    92139-0108 BUSHING, OUT 3RD & 4TH GEAR
    BUSHING, OUT 3RD & 4TH GEAR
  • 92139B
    92139-0120 BUSHING, BEARING-NEEDLE
    BUSHING, BEARING-NEEDLE
  • 92152
    92152-0300 COLLAR, 25X40X17.2
    COLLAR, 25X40X17.2
  • 92200
    92200-0221 WASHER, 20.2X30X1.8
    WASHER, 20.2X30X1.8
  • 92200A
    92200-0222 WASHER, 30.3X38X1.0
    WASHER, 30.3X38X1.0
  • 92200B
    92200-0291 WASHER, 20.2X25.0X0.5
    WASHER, 20.2X25.0X0.5
  • 92200C
    92200-1065 WASHER
    WASHER
  • 92200D
    92200-1240 WASHER, 28.5X34.0X1.5
    WASHER, 28.5X34.0X1.5
  • 92200E
    92200-1278 WASHER, 29.9X40X1.5
    WASHER, 29.9X40X1.5
  • 92210
    92210-0222 NUT, M20, L=24MM
    NUT, M20, L=24MM
