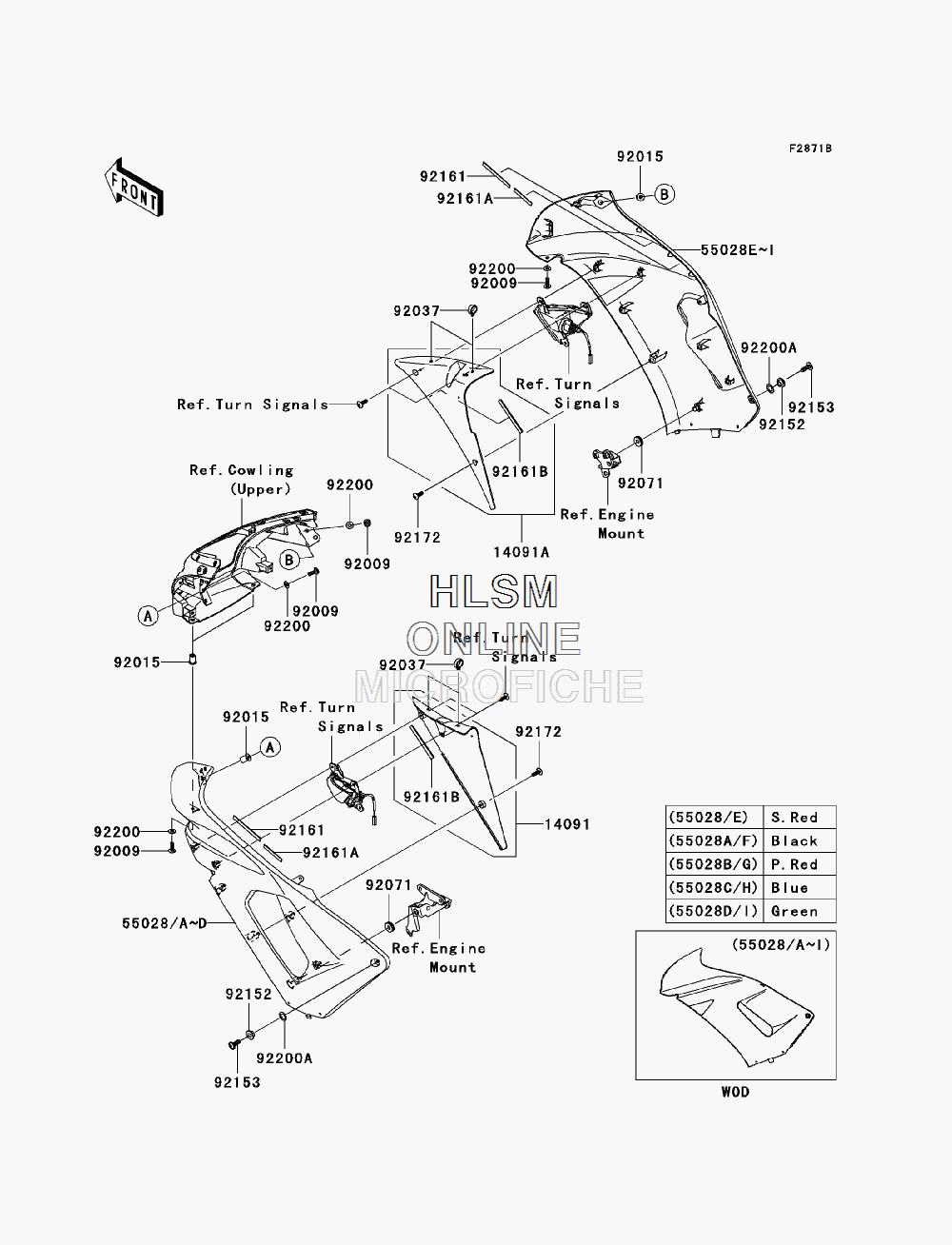

COWLING - CENTER для Kawasaki NINJA 650R (EX650A8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 14091
    14091-0655 COVER, CNT COWLING, INNER, LEFT HAND
    COVER, CNT COWLING, INNER, LEFT HAND
  • 14091A
    14091-0656 COVER, CNT COWLING, INNER, RIGHT HAND
    COVER, CNT COWLING, INNER, RIGHT HAND
  • 55028
    55028-0116-H1 COWLING, CNT, LEFT HAND, S.RED (FOR H1)
    COWLING, CNT, LEFT HAND, S.RED (FOR H1)
  • 55028A
    55028-0116-17K COWLING, CNT, LEFT HAND, M.BLACK (FOR 17K)
    COWLING, CNT, LEFT HAND, M.BLACK (FOR 17K)
  • 55028D
    55028-0116-777 COWLING, CNT, LEFT HAND, L.GREEN (FOR 777)
    COWLING, CNT, LEFT HAND, L.GREEN (FOR 777)
  • 55028E
    55028-0117-H1 COWLING, CNT, RIGHT HAND, S.RED (FOR H1)
    COWLING, CNT, RIGHT HAND, S.RED (FOR H1)
  • 55028F
    55028-0117-17K COWLING, CNT, RIGHT HAND, M.BLACK (FOR 17K)
    COWLING, CNT, RIGHT HAND, M.BLACK (FOR 17K)
  • 55028I
    55028-0117-777 COWLING, CNT, RIGHT HAND, L.GREEN (FOR 777)
    COWLING, CNT, RIGHT HAND, L.GREEN (FOR 777)
  • 92009
    92009-1909 SCREW, 5X16
    SCREW, 5X16
  • 92015
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92037
    92037-1827 CLAMP, HOSE
    CLAMP, HOSE
  • 92071
    92071-056 GROMMET
    GROMMET
  • 92152
    92152-0422 COLLAR
    COLLAR
  • 92153
    92153-0478 BOLT, 6X18
    BOLT, 6X18
  • 92161
    92161-0445 DAMPER
    DAMPER
  • 92161A
    92161-0446 DAMPER
    DAMPER
  • 92161B
    92161-1315 DAMPER
    DAMPER
  • 92172
    92172-0175 SCREW, TAPPING, 5X16
    SCREW, TAPPING, 5X16
  • 92200
    92200-0006 WASHER, NYLONE, 5.3X11.5X0.5
    WASHER, NYLONE, 5.3X11.5X0.5
  • 92200A
    92200-0157 WASHER, 10.4X15.9X0.5
    WASHER, 10.4X15.9X0.5
