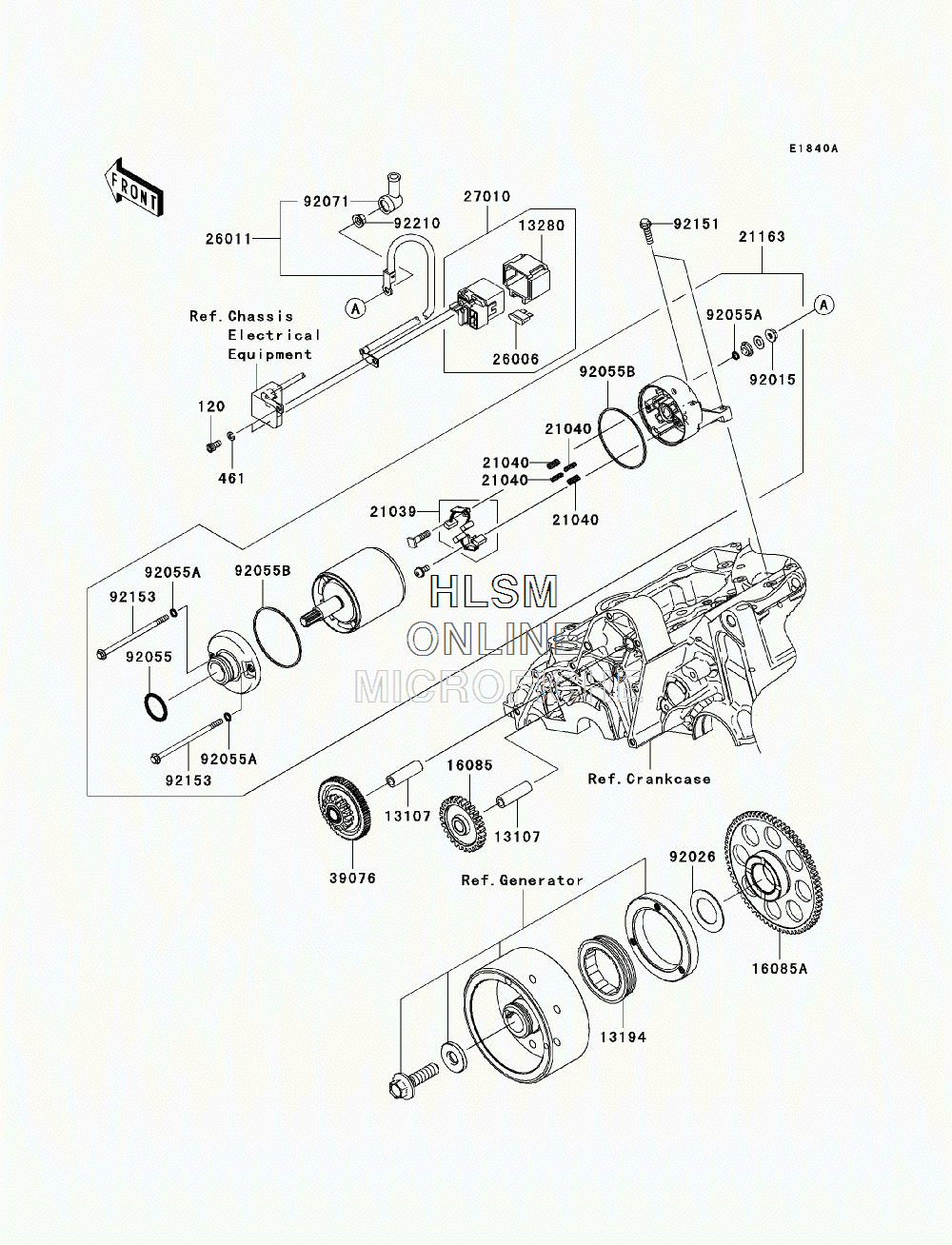

STARTER MOTOR (ER650AE046805 AND ABOVE) для Kawasaki NINJA 650R (EX650A7F) - 2007 года выпуска`
-
№АртикулНазвание
-
120120S0510 BOLT-SOCKET, 5X10BOLT-SOCKET, 5X10
-
461461K0500 WASHER-SPRING, 5MM, BLACKWASHER-SPRING, 5MM, BLACK
-
1310713107-1106 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
1319413194-1083 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1328013280-1263 HOLDERHOLDER
-
1608516085-0074 GEAR, IDLE, 28TGEAR, IDLE, 28T
-
16085A16085-0076 GEAR, 67TGEAR, 67T
-
2103921039-0004 BRUSH, CARBONBRUSH, CARBON
-
2104021040-0003 SPRING-BRUSHSPRING-BRUSH
-
2116321163-0040 STARTER-ELECTRICSTARTER-ELECTRIC
-
2600626006-1006 FUSE, 30A-GFUSE, 30A-G
-
2601126011-0083 WIRE-LEADWIRE-LEAD
-
2701027010-1446 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3907639076-0006 LIMITER, 16T & 66TLIMITER, 16T & 66T
-
9201592015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202692026-087 SPACER, 29.1X47.5X1.2SPACER, 29.1X47.5X1.2
-
9205592055-1276 RING-ORING-O
-
92055A92055-1370 RING-O, 4.5X2.0RING-O, 4.5X2.0
-
92055B92055-1381 RING-O, STARTER MOTORRING-O, STARTER MOTOR
-
9207192071-0024 GROMMETGROMMET
-
9215192151-1937 BOLT, 6X22BOLT, 6X22
-
9215392153-1783 BOLTBOLT
-
9221092210-0188 NUT, 6MMNUT, 6MM
